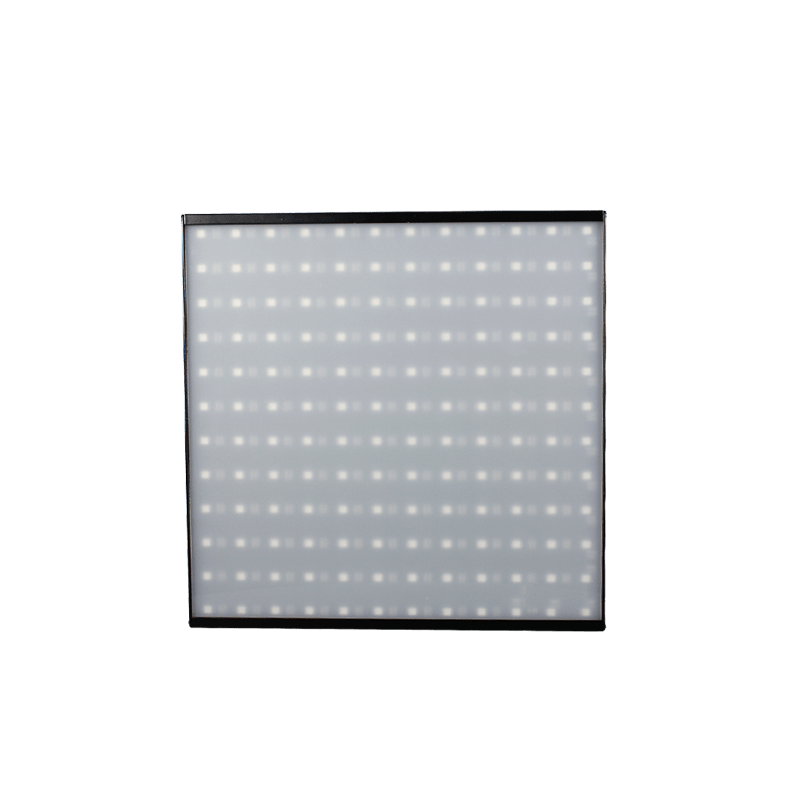

PIXELPANEL 144

Model: SI-157 PIXELPANEL 144

It’s a cool static LED video panel with pixel mapping capability by 144PCS (12*12) SMD5050 RGB/FC high-efficiency LEDs controllable individually. The PIXELPANEL 144 features 25 millimeters pixel pitch with 120°projection angle. It offers several control options for different users, stand alone, Art-Net, Arkaos KlingNet (LED MASTER), DMX. The PIXELPANEL 144 provides 3 DMX channels models for simple control or professional programming, 8CH/35CH/432CH. The front lens filter is available for replaceable frosted version or clear version.

The PIXELPANEL144 is a friendly designed light weight fixture with quite easy-to-use mechanical structure to allow flexible mounting through its sliding hardware on the back panel for truss hanging. The users could connect dozens of fixtures through this sliding hardware both vertically or horizontally.

The PIXELPANEL 144 is perfectly fit for back stage vivid effect, live concerts, TV studios, DJ shows, clubs, etc.

144PCS (12*12) SMD5050 RGB/FC high-efficiency LEDs
Each LED controllable individually (Pixel mapping)
25 Millimeters pixel pitch
50000 hours life span and low power consumption
120°Projection angle and excellent color rendering
Replaceable frosted or clear front lens filter
0-100% Smooth linear LED dimmer
Controllable by Art-Net or Arkaos KlingNet
Works great with ArKaos LED Master for easy plug-and-play
8CH/35CH/432CH DMX channels USITT DMX-512
DMX512, master-slave, and sound activated controllable or auto operation
DMX recorder and edit function integrated
Sound control with sensitivity adjustment
Built-in programs, special effects, macro effect
LCD display with 4 control buttons
LCD display switch-off automatically after 60 seconds
DMX signal monitoring indicator available
Lower noise and efficient FAN cooling system
Over heat protection management
Die-case stylish aluminum housing
Flexible sliding mounting hardware for easy connection setup
Powercon IN/ OUT
Ethernet connector IN/OUT
3-Pin DMX connectors IN/OUT
IP20 protection rating
-20℃ to 45℃ ambient temperature
1*Safety attachment point

Input Voltage:AC90-260V 50/60Hz
LED Quantities: 144PCS (12*12) SMD5050 RGB/FC LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 8CH/35CH/432CH DMX channels USITT DMX-512
Power Consumption: 51W
Dimensions:55(D)*300(W)*300(H)mm
Packing Dimensions:365(D)*380(W)*135(H)mm(1PCS)
385(D)*400(W)*590(H)mm(4PCS)
Net Weight: 2.26kg
Gross Weight: 2.98kg
