Model: SI-129 MINIBEAM 230PRO

The MINIBEAM 230PRO is a fully new design by Color Imagination, aiming to bring a very compact and lightweight housing moving head beam, as always, with very high light output and even coverage field, to the market. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, 3 kinds of  prism effect, frost filter, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer, color time and gobo time controllable.

The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving heads feature ultra sharp beam effect with low consumption realized by the powerful OSRAM 230W lamp (2000H life span).

It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.


  • OSRAM 230W lamp
  • 2000 hours rated lamp source
  • Electronic ballast and power supply
  • Smooth and precise resolution for PAN/TILT movement
  • 630° /540° /360° PAN and 270°/180° /90° TILT movement optional
  • Scan position memory, auto reposition after unexpected movement
  • 2.5° Beam angle
  • Improved optics and flat beam field
  • No need for adjustment of reflector or lamp
  • Anti-reflection 136mm front lenses
  • 1 Static gobo wheel with 16 gobos plus open
  • 1 Color wheel with 11 colors plus open
  • Variable direction rainbow effect with speed adjustable
  • Motorized focus from near to far
  • 16-facet prism with variable speed and direction
  • 16-Facet+8-facet prism with variable speed and direction
  • Combined prism effect by 16-facet prism and 6-Facet+8-facet prism with variable speed and direction
  • Frost filter available (Hybrid effect for wash)
  • Dual flag mechanical dimming system
  • 20T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 14/16 DMX channels USITT DMX-512 (16CH for vector mode)
  • Vector mode with blackout MIB function
  • DMX512, master-slave, and sound activated controllable or auto operation (8 built-in
  • programs)
  • DMX recorder and edit function integrated
  • 2.4” TFT LCD display (320*240pix) with 4 light touch control buttons
  • Display reversible for up side down application
  • Powercon IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Fan cooling system
  • Constant temperature readout and management function
  • Lamp using time readable on the display
  • -20-45°C max ambient temperature
  • IP20 protection rating
  • 2*1/4 turn fastening Omega clamps
  • 1*Safety attachment point available
PHOTOMETRIC BEAM ANGLE DATA-129.jpg



Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*OSRAM 230W lamp
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel:14/16 DMX channels USITT DMX-512
Power Consumption: 310W

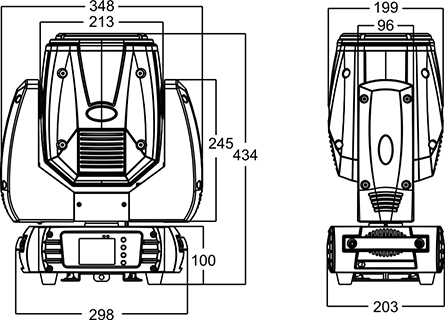

Dimensions:203(D)*348(W)*434(H)mm
Packing Dimensions:275(D)*445(W)*525(H)mm
Net Weight:12.70kg
Gross Weight: 15.10kg

SIZE_120




GOBOS-COLORS_36

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

  • a_42
  • d_42
  • b_43
  • c_41
  • e_23
  • f_23

Effect Pictures

  • d.jpg
  • a_43
  • b_44
  • c_42
  • h.jpg
  • g_2
  • e_37
  • f_39
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
