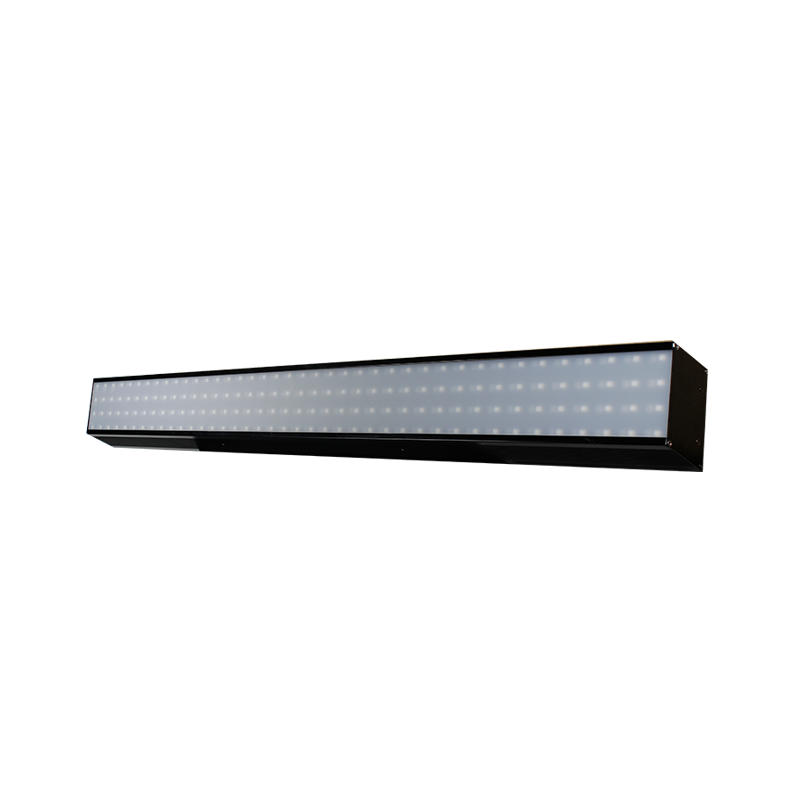

Model: SI-156 PIXELPANEL 160

It’s a cool static bar fixture with pixel mapping capability by 160PCS (4*40) SMD5050 RGB/FC high-efficiency LEDs controllable individually. The PIXELPANEL 160 features 25 millimeters pixel pitch with 120°projection angle. It offers several control options for different users, stand alone, Art-Net, Arkaos KlingNet (LED MASTER), DMX. The PIXELPANEL 160 provides 3 DMX channels models for simple control or professional programming, 8CH/35CH/480CH. The front lens filter is available for replaceable frosted version or clear version.

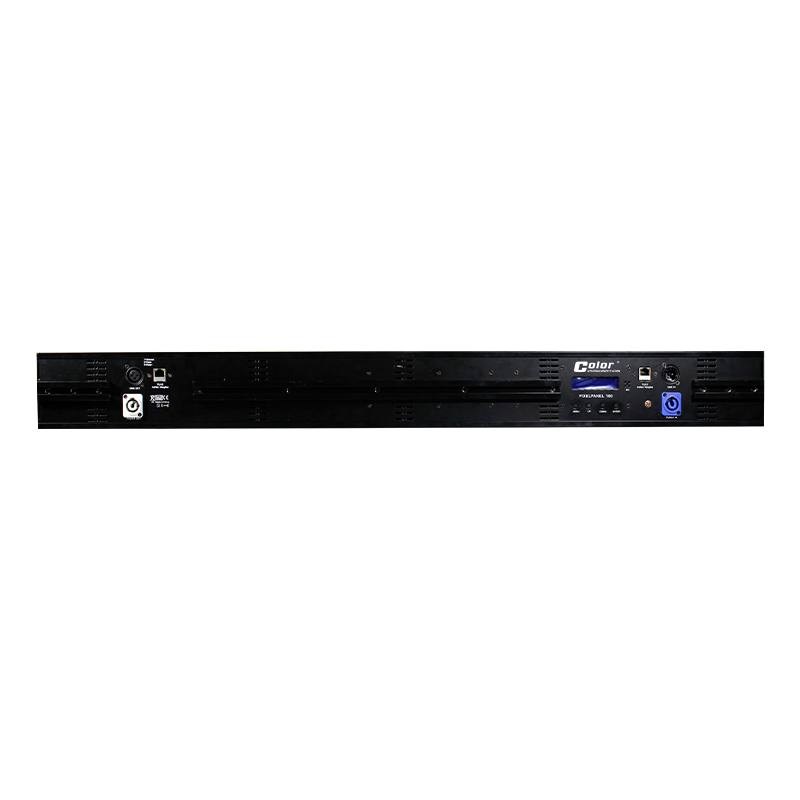

The PIXELPANEL 160 is a friendly designed light weight fixture with quite easy-to-use mechanical structure to allow flexible mounting through its sliding hardware on the back panel for truss hanging. The users could connect dozens of fixtures through this sliding hardware both vertically or horizontally.

The PIXELPANEL 160 is perfectly fit for back stage vivid effect, live concerts, TV studios, DJ shows, clubs, etc.


  • 160PCS (4*40) SMD5050 RGB/FC high-efficiency LEDs
  • Each LED controllable individually (Pixel mapping)
  • 25 Millimeters pixel pitch
  • 50000 hours life span and low power consumption
  • 120°Projection angle and excellent color rendering
  • Replaceable frosted or clear front lens filter
  • 0-100% Smooth linear LED dimmer
  • Controllable by Art-Net or Arkaos KlingNet
  • Works great with ArKaos LED Master for easy plug-and-play
  • 8CH/35CH/480CH DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto operation
  • DMX recorder and edit function integrated
  • Sound control with sensitivity adjustment
  • Built-in programs, special effects, macro effect
  • LCD display with 4 control buttons
  • LCD display switch-off automatically after 60 seconds
  • DMX signal monitoring indicator available
  • Lower noise and efficient FAN cooling system
  • Over heat protection management
  • Die-case stylish aluminum housing
  • Flexible sliding mounting hardware for easy connection setup
  • Powercon IN/ OUT
  • Ethernet connector IN/OUT
  • 3-Pin DMX connectors IN/OUT
  • IP20 protection rating
  • -20℃ to 45℃ ambient temperature
  • 1*Safety attachment point




Input Voltage:AC90-260V 50/60Hz
LED Quantities: 160PCS (4*40) SMD5050 RGB/FC LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 8CH/35CH/480CH DMX channels USITT DMX-512
Power Consumption: 45W

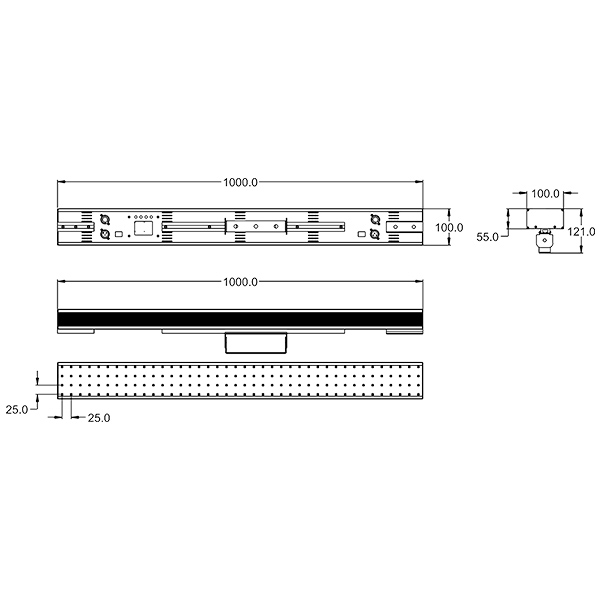

Dimensions:55(D)*1000(W)*100(H)mm
Packing Dimensions:125(D)*1060(W)*160(H)mm(1PCS)
                                  340(D)*1080(W)*280(H)mm(4PCS)
Net Weight: 3.40kg
Gross Weight: 4.80kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

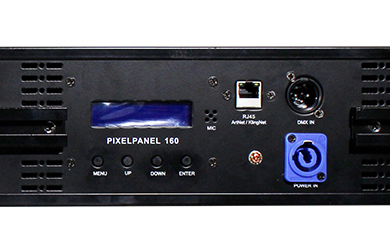

  • b_74

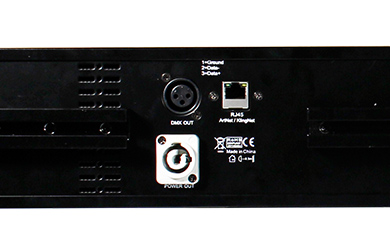

  • c_72

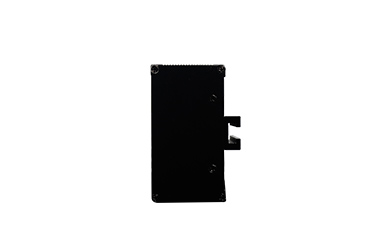

  • a_74

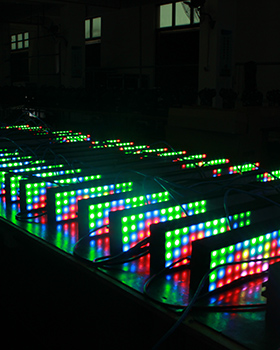

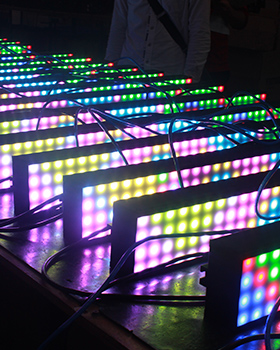

Effect Pictures

  • a.jpg
  • b_18
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 8-in-1, 10-in-1, 12-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Ethernet Cable

STANDARD
code:
QTY: 1PCS



2_1

Sliding Mounting Kit

STANDARD
code:
QTY: 1PCS
