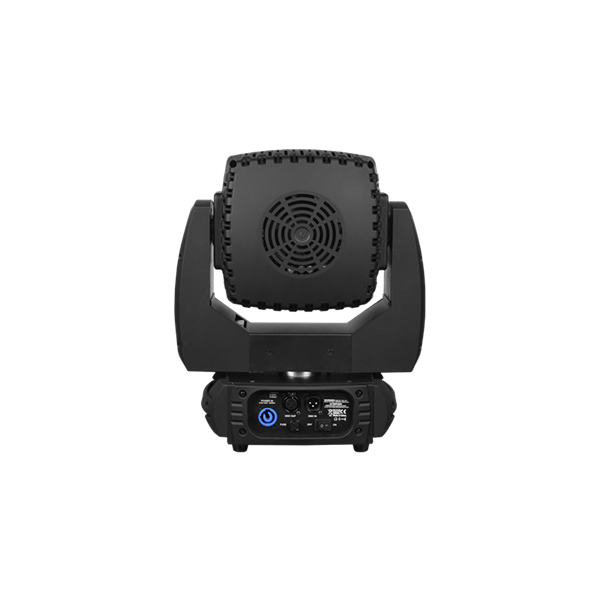

MADPANEL 460F

Model: SI-131 MADPANEL 460F

MADPANEL 460F is the first ultra high power professional matrix moving head that delivers broad intense sharp beam effect (all 4 LEDs on) with remarkable pure color mixing. The fixture features 4*60W OSRAM LE RTDUW S2WP 4-in-1 LEDs fitted with 4*4.5° 84mm in diameter high efficiency optics, available for individual LED (color) control. It’s a fixture producing high light output. Each LED is a pixel available for control independently, not only speed but also saturated linear dimmer. It allows for a wide range of diverse visual effects. It could also create an amazing streaming effect by professional programming. It’s available for large scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, disco, etc.

4*60W OSRAM LE RTDUW S2WP 4-in-1 LEDs
50,000 hours lifespan and low power consumption
4 Pixels (each LED is a pixel), controllable individually
Intense remarkable sharp BEAM effect with pure color mixing
Specific 4*4.5° 84mm high efficiency optic system
5° Projection field angle
Flicker free sources management
Infinite (continuous) PAN/TILT movement
8/16 Bit smooth, fast and precise infinite (continuous) PAN/TILT movement
Scan position memory, auto reposition after unexpected movement
High speed strobe effect with 1-25 flashes per second
Random strobe effect and pulse strobe effect available
0-100% Smooth linear LED dimmer
Amazing visual effects by pro control
7 Internal program available
12 Default macros effect for easy performance
13/31 DMX Channels USITT DMX-512
DMX512, master-slave and sound activated controllable or auto operation
2.4" TFT LCD display (320*240pix) with 4 control buttons
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
POWERCON IN/OUT
3-Pin XLR connectors IN/OUT
IP20 protection rating
-20 ~ 45°C ambient temperature
2*1/4 turn fastening Omega Clamps
1*Safety attachment point

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 4*60W OSRAM LE RTDUW S2WP 4-in-1 LEDs
Control Signal: DMX512,master-slave and sound activated or auto operation
Control Channel: 13/31 DMX Channels USITT DMX-512
Power Consumption: 320W
Dimensions: 138(D)*330(W)*391(H)mm
Packing Dimensions: 270D)*410(W)*425(H)mm
Net Weight: 8.80kg
Gross Weight: 12.25kg
