MINISPOT 250

Model: SI-170 MINISPOT 250

It’s another breakthrough high power LED moving head spot a very compact and light weight stylish MINI housing. The MINISPOT 250 features a 7500K 250W LED with high intensity and efficiency through a 13°high resolution front glass lens which helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, an effect wheel with 3-facet prism/linear prism/frost filter, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe. It’s fast and quiet moving head with smooth PAN/TILT movement.

The MINISPOT 250 is perfect option for large scale live concerts, TV productions, road shows, clubs, etc.

IP_19

A 250W white LED lamp, 7500K
50000 hours life span and low power consumption
8/16 bit smooth and precise resolution for PAN/TILT movement
540°/630°/ 360°PAN and 270°/180°/90° TILT movement
Scan position memory, auto reposition after unexpected movement
13°Beam angle
Specific high precision glass optic system

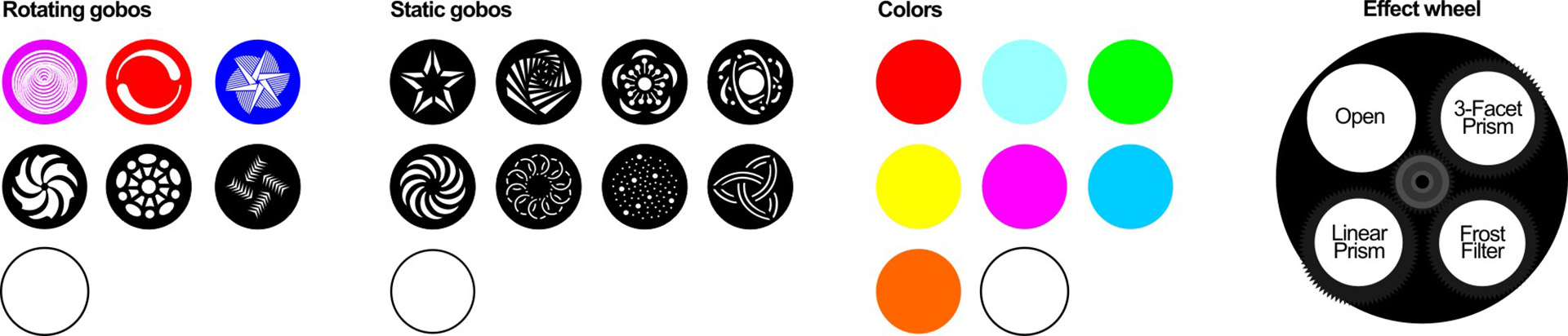

1 Rotating gobo wheel with 6 rotatable and interchangeable gobos plus open (3 glass gobos and 3 metal gobos with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing available
Gobo size 22.9mm (external dimensions)/16mm (inner dimensions)
1 Static gobo wheel with 8 gobos plus open
Gobo overlay (gobo morphing)
1 Color wheel with 7 colors plus open (available for half color mode)
Variable direction rainbow effect with speed adjustable
Gobo time and color time controllable
2.5M-15M electric focus
An effect wheel with 3-facet prism/linear prism/frost filter (hybrid effect for wash)with variable speed and direction
0-100% Smooth linear LED dimmer (2 dimmer modes)
25T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
13/15/17 DMX channels USITT DMX-512 (Vector mode 18CH)
DMX512, master-slave, and sound activated controllable or auto operation(7 built-in programs)
DMX recorder and edit function integrated
Sound control with sensitivity adjustment
2.4" TFT LCD display (320*240pix) with 4 control buttons
180°Reversible for LCD display
LCD display switch-off automatically after 60 seconds
DMX signal monitoring indicator available
Lower noise and efficient FAN cooling system
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over heat protection management
Powercon IN/ OUT with power switch and fuse
3-Pin DMX connectors IN/OUT
IP20 protection rating
-20℃ to 45℃ ambient temperature
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
CE (EMC/LVD) and RoHS certified

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*250W 7500K white LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel:13/15/17 DMX channels USITT DMX-512
Power Consumption: 290W
Dimensions:203(D)*293(W)*462(H)mm
Packing Dimensions:340(D)*430(W)*515(H)mm
Net Weight:12.46kg
Gross Weight: 14.40kg
