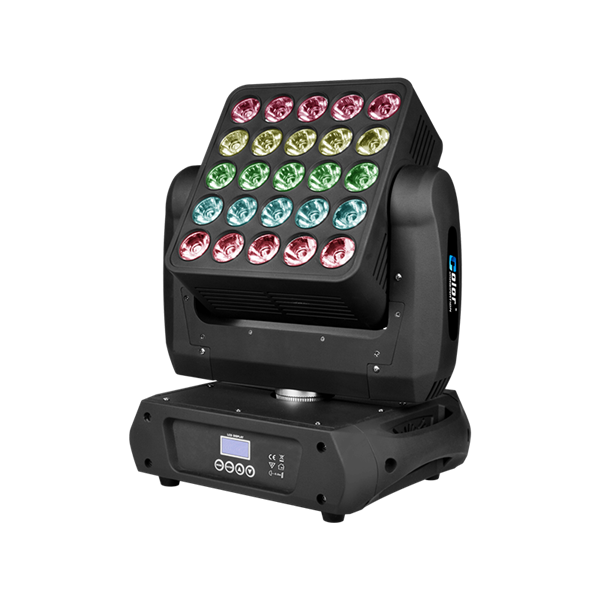

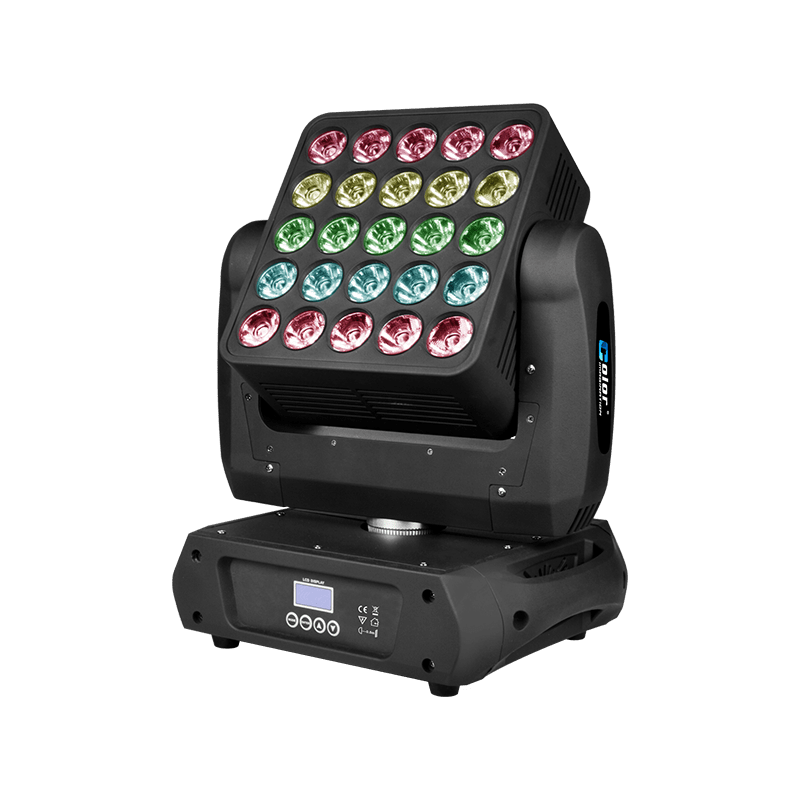

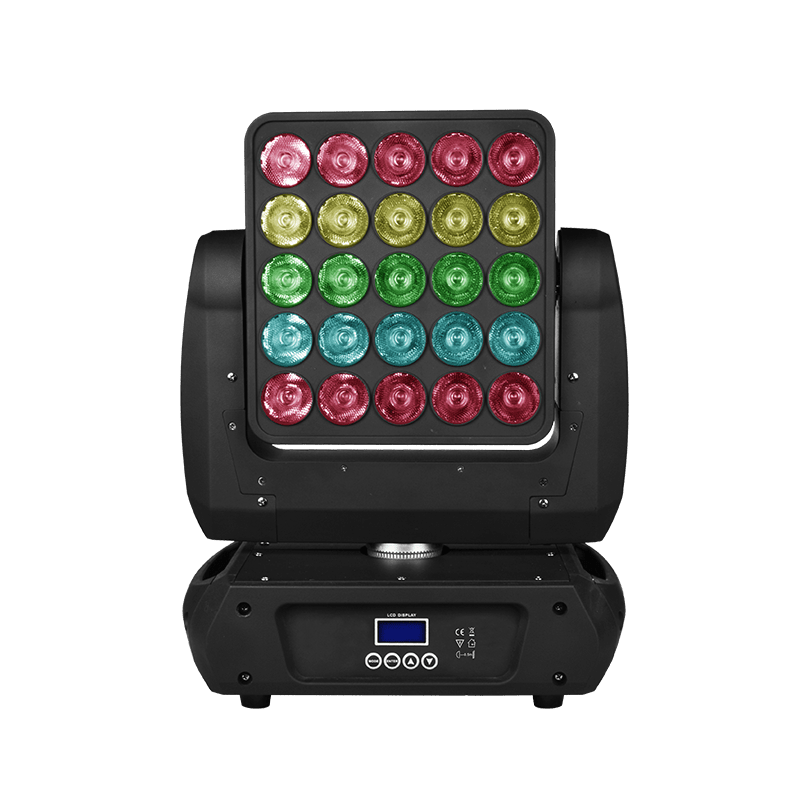

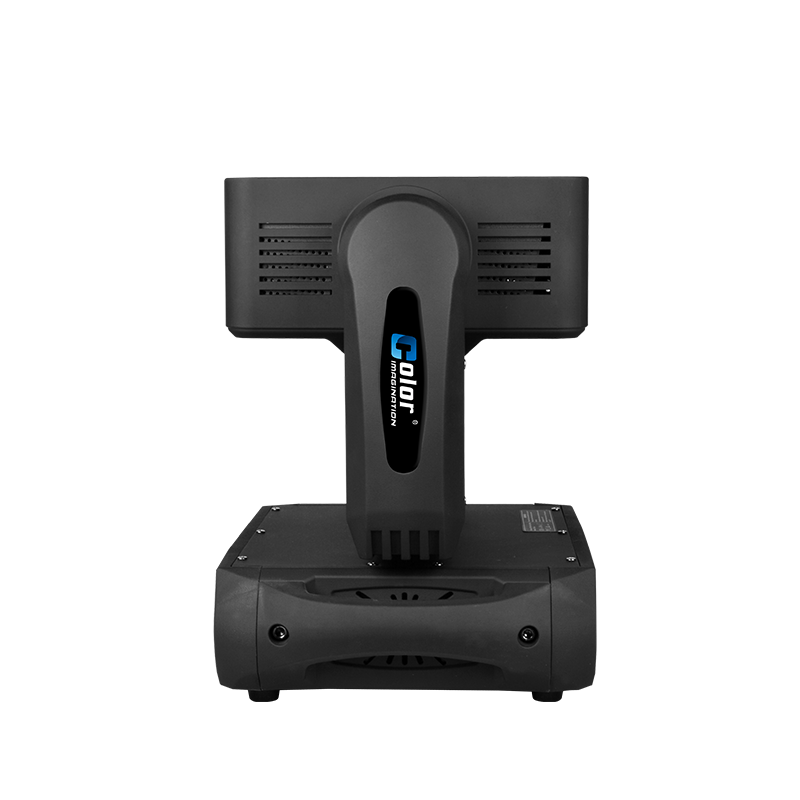

MADPANEL 2510F

Model: SI-094 MADPANEL 2510F

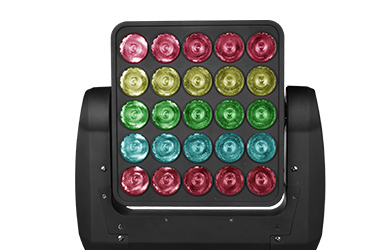

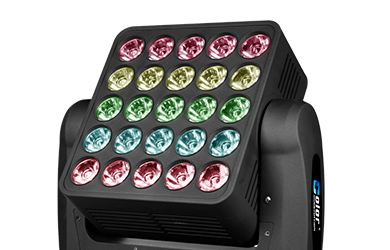

The MADPANEL 2510F is a matrix LED moving head panel available with ARTNET control version（optional） and 25*10W CREE XLamp XML 4-in-1 LEDs fitted with 5° high efficiency optics, available for individual LED (color) control. It allows for a wide range of diverse visual effects, offering options like numbers, letters, graphic effects or images, with remarkable color mixing advantage. The fixture features really high lumens for 300W power consumption. It could be controllable through DMX 512 protocol or specific computer control software. The moving is capable of creating amazing novel effects by professional programming The MADPANEL could be use in large scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, disco, etc.

25PCS CREE XLamp XML 4-IN-1 10W LEDs
50,000 hours lifespan and low power consumption
25 pixels (each LED is a pixel), controllable individually
Outstanding sharp BEAM effect and remarkable wash effect with pure
color mixing
Specific high efficiency 5° optic system

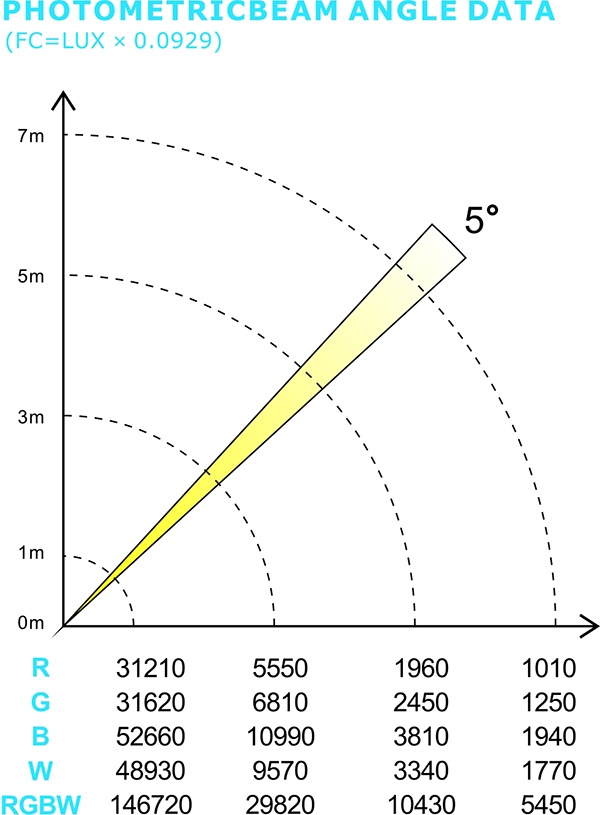

High light output, 5450LUX@7M at full RGBW
Flicker free control
Smooth, fast and precise infinite (continuous) PAN/TILT movement
Scan position memory, auto reposition after unexpected movement

High speed strobe effect with 1-25 flashes per second
0-100% smooth linear LED dimmer
Amazing visual effect by pro control
Internal program available
Default pixel macros effect for easy performance
23/33/121 DMX Channels USITT DMX-512
DMX512, master-slave and sound activated controllable or auto
operation
Specific computer control software as optional

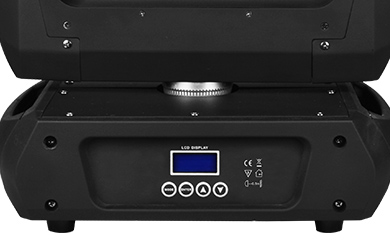

High definition blue LCD display

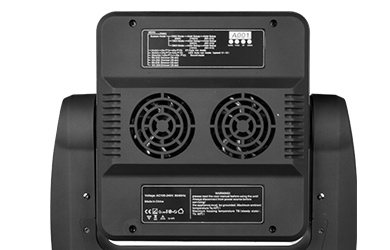

Efficient low noise fan cooling system

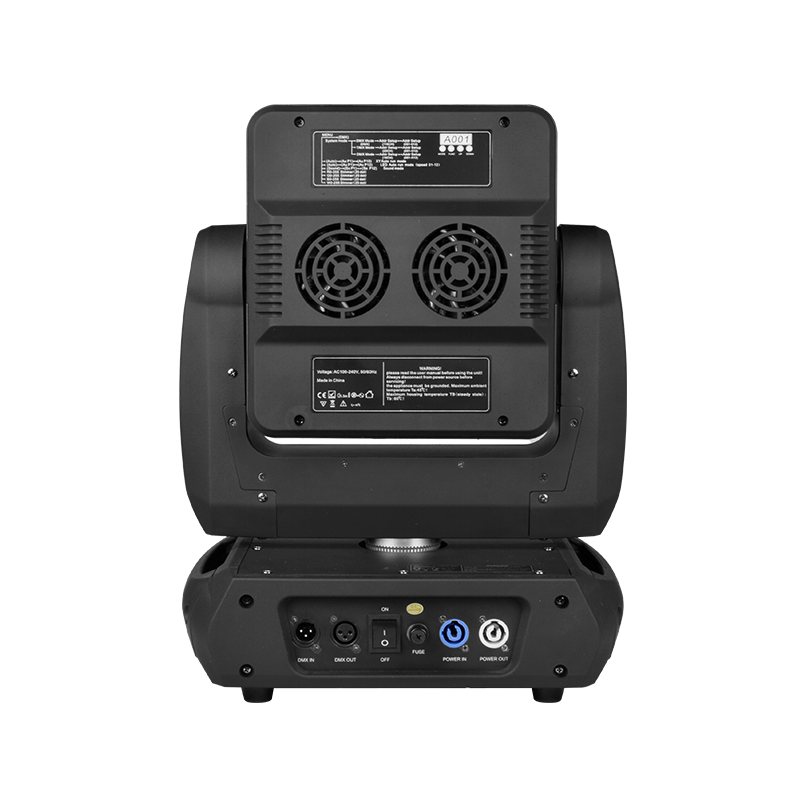

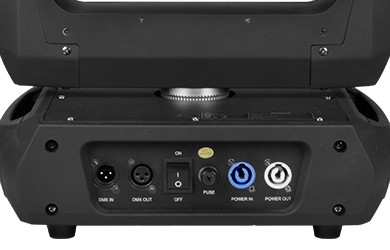

POWERCON IN/OUT
ARTNET connectors IN/OUT,RJ45(optional)
3-Pin XLR connectors IN/OUT
Constant temperature readout and management function
IP20 protection rating
-20°C ~ 45°C ambient temperature
2*1/4 turn fastening Omega clamps
1* Safety attachment point

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 25PCS CREE XLamp XML 4-IN-1 10W LEDs
Control Signal: DMX512,master-slave and sound activated or auto operation
Control Channel: 23/33/121 DMX Channels USITT DMX-512
Power Consumption: 300W

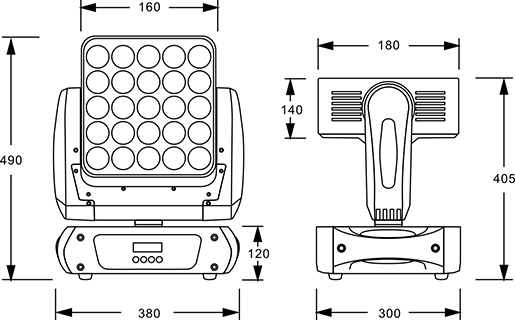

Dimensions: 300(D)*380(W)*490(H)mm
Packing Dimensions: 400(D)*500(W)*520(H)mm
Net Weight: 14.92kg
Gross Weight: 18.34kg
