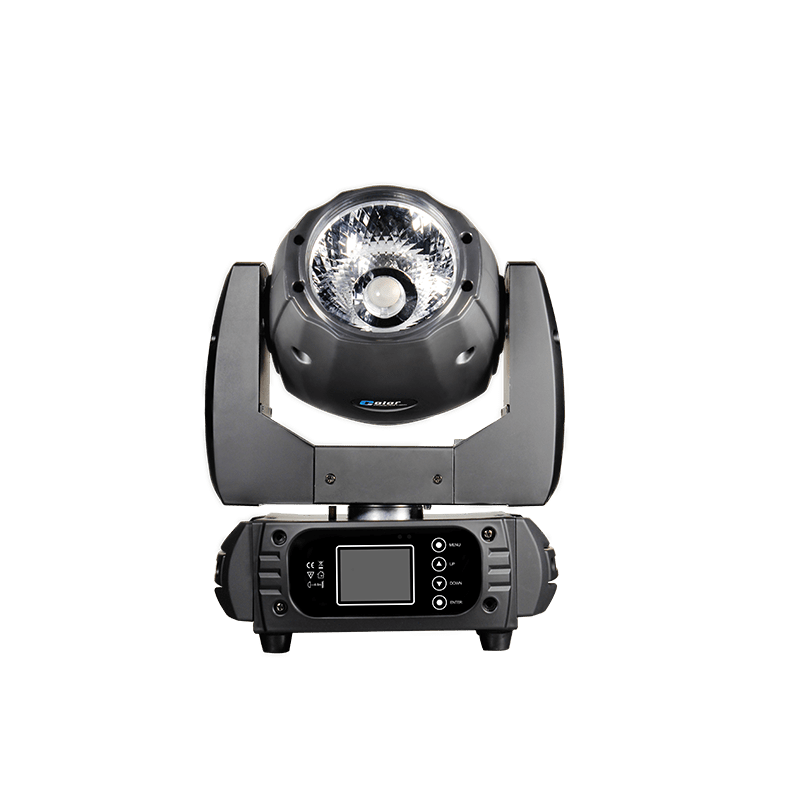

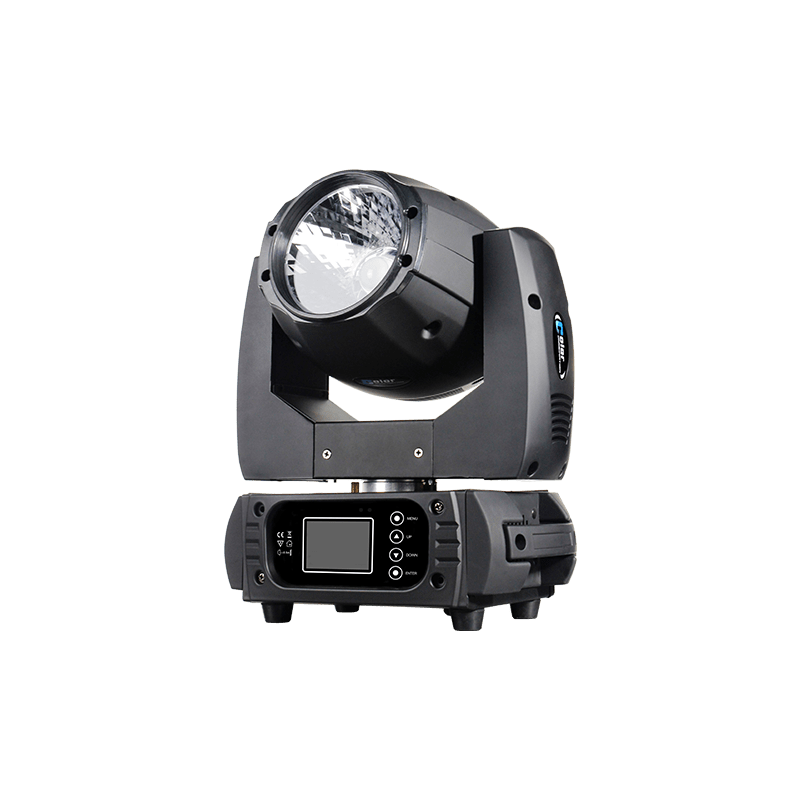

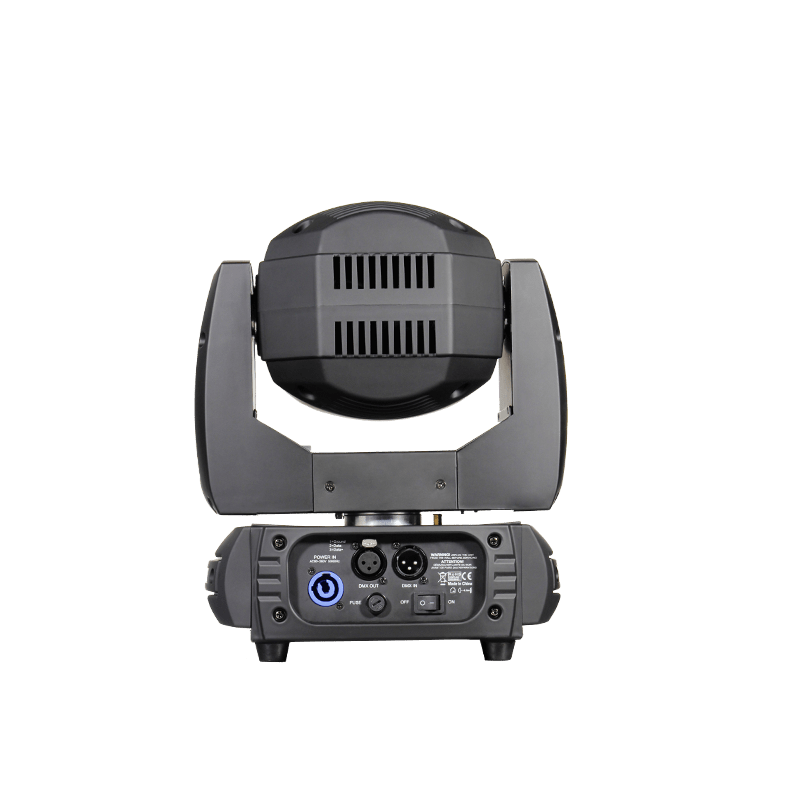

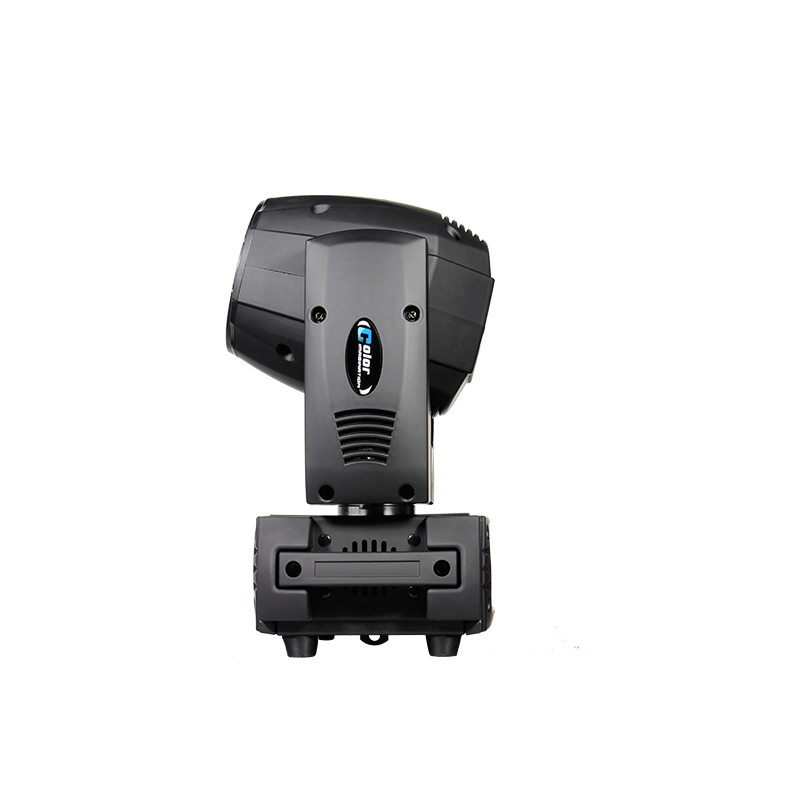

Model: SI-153 MINIWASH 150

As a newly joined moving head member to Color Imagination’s MINI family, the MINIWASH 150 utilizes the up-to-date COB LED technology featuring 150W RGBW in one LED combined effectively with a 26°optic lens integrated in a alum-oxidized reflector. The PAN/TILT integrates in fast, smooth and quiet movement. It offers very pure color mixing and even light coverage, 0-100% linear LED dimmer, variable speed shutter/strobe.

It’s applicable for small to medium scale live concerts, TV productions, road shows, clubs, etc.


  • A 150W COB 4-in-1 LED lamp (RGBW)
  • 50000 Hours life span and low power consumption
  • 8/16 Bit smooth and precise resolution for PAN/TILT movement
  • 360°/540°/630° PAN and 90°/180°/270° TILT movement
  • PAN/TILT inversion available
  • Scan position memory, auto reposition after unexpected movement
  • Specific high precision 26°optic lens integrated in a alum-oxidized reflector
  • Improved optics and flat beam field
  • Infinite color mixing capability (CMY)
  • Pure and even color coverage
  • 0-100% Smooth linear LED dimmer
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 10/12 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto operation (7 built-in programs)
  • DMX recorder and edit function integrated
  • 2.4” TFT LCD display (320*240pix) with 4 control buttons
  • Display inverted capable
  • POWRECON connector IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan cooling system
  • Constant temperature readout and management function
  • -20℃-45℃ max ambient temperature
  • IP20 protection rating
  • 1*1/4 turn fastening Omega clamp
  • 1*Safety attachment point

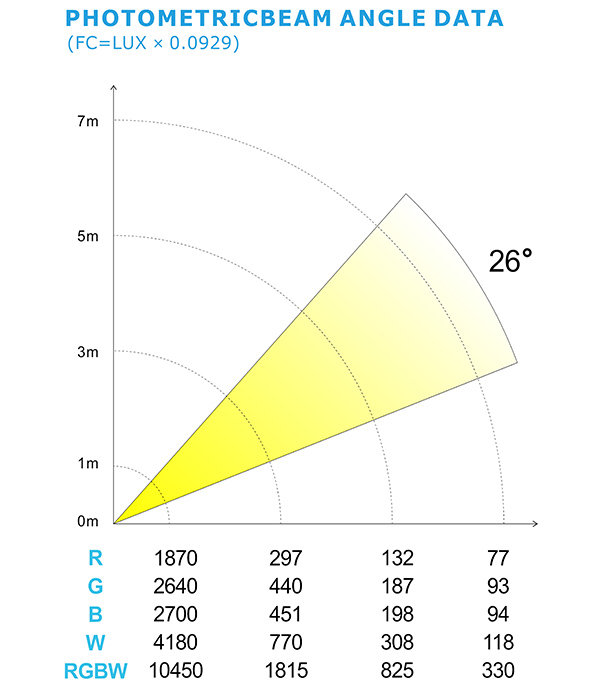

PHOTOMETRIC BEAM ANGLE DATA_32

Input Voltage:AC90-260V 50/60Hz
LED Quantities: 1*150W COB 4-in-1 LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 10/12 DMX channels USITT DMX-512
Power Consumption: 175W

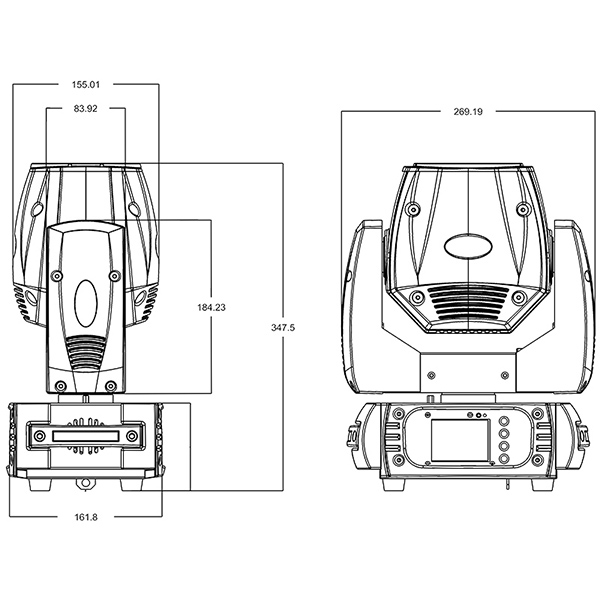

Dimensions: 162(D)*269(W)*348(H)mm
Packing Dimensions: 245(D)*350(W)*450(H)mm
Net Weight: 5.54kg
Gross Weight: 7.56kg




  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 1PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
