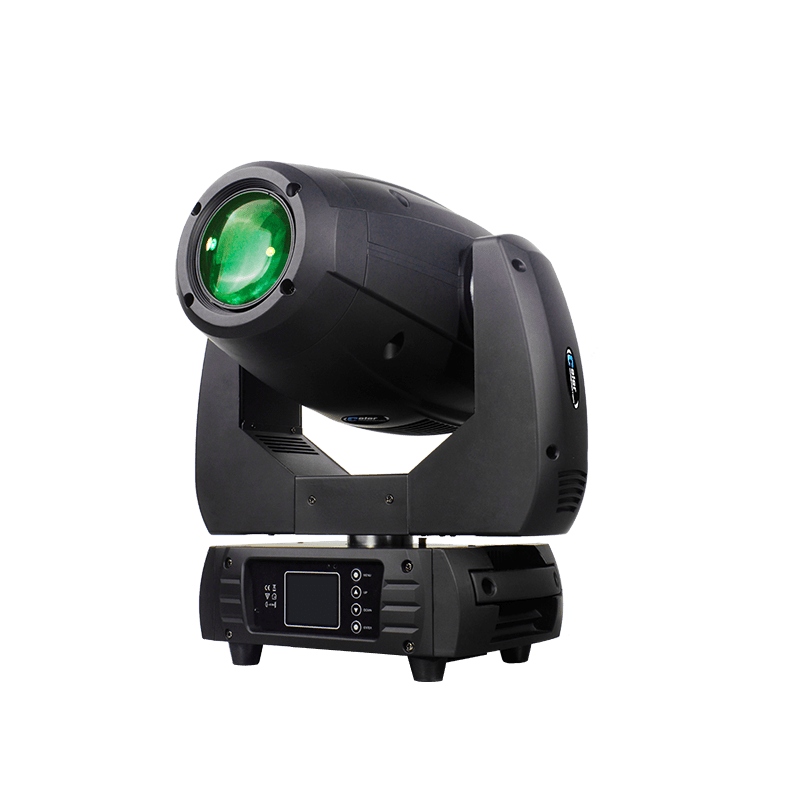

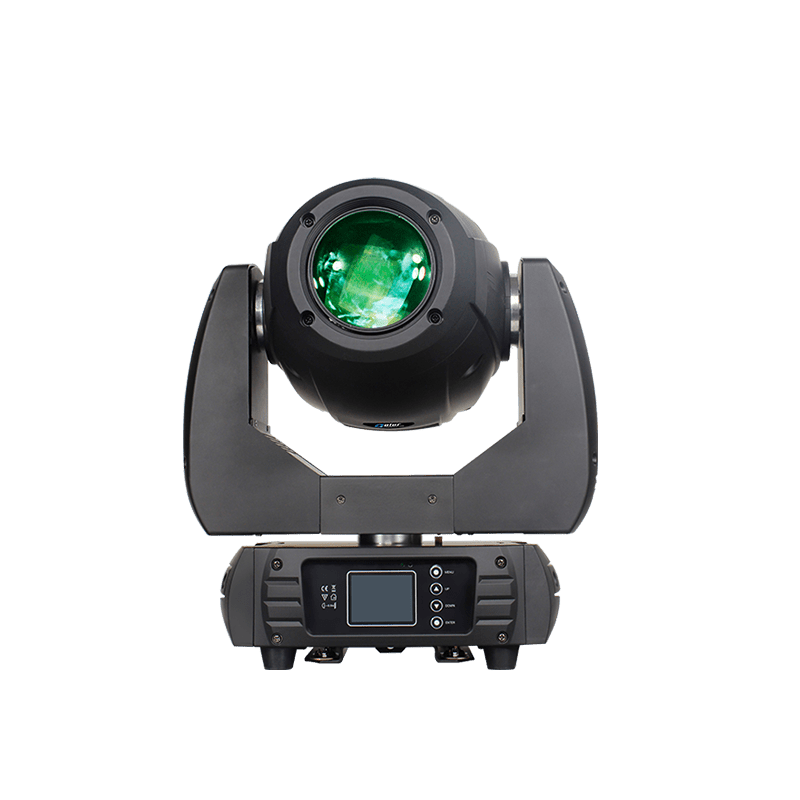

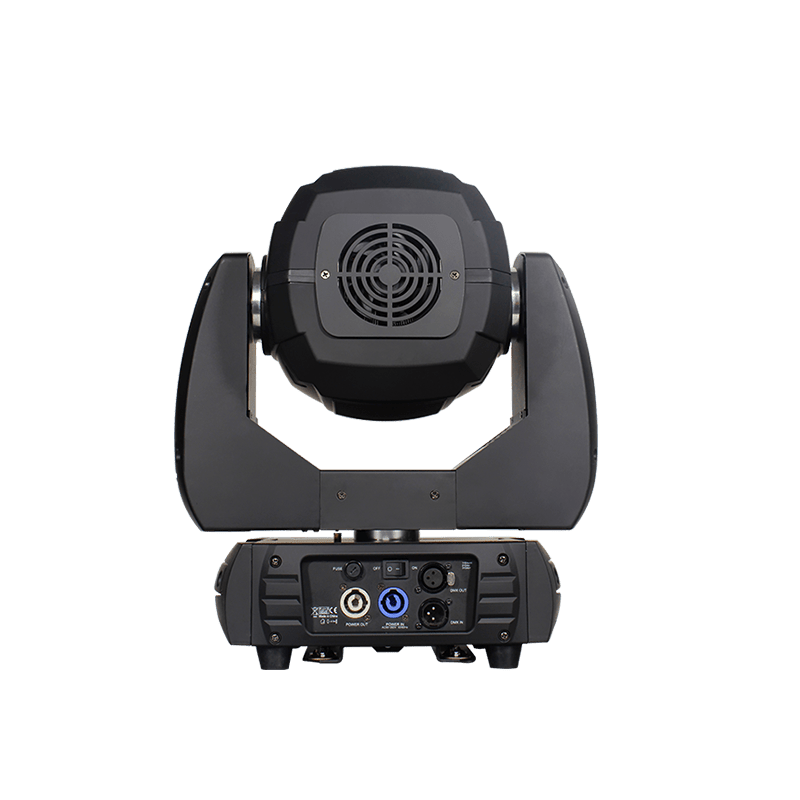

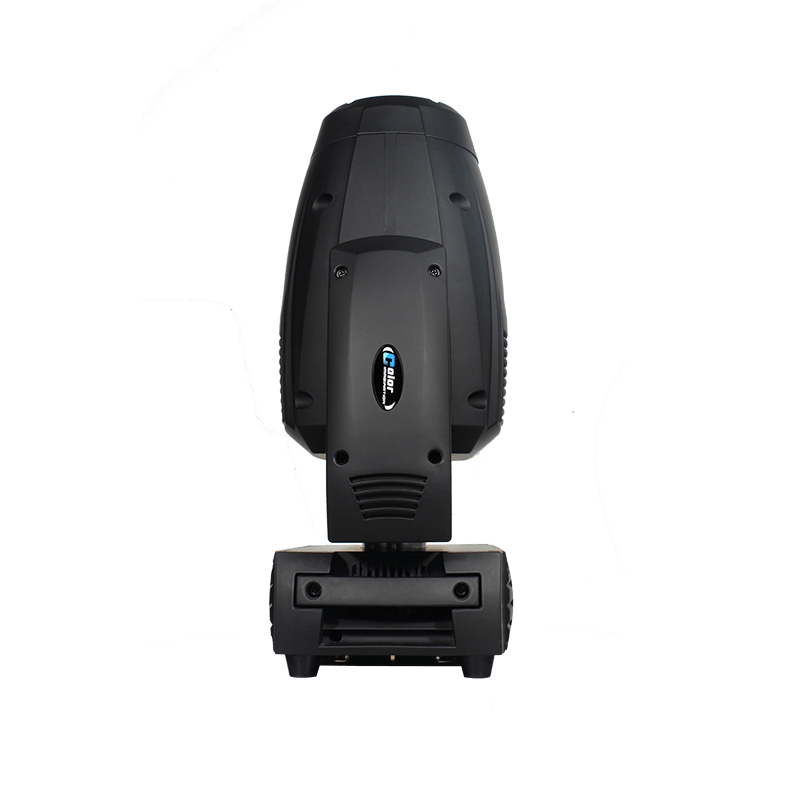

Model: SI-171 MINISPOT 250Z

Smaller---very compact in size and weight
Better---very high in output
Professional---zoom range 11°-23°

It’s another breakthrough high power LED moving head spot with a very smooth and precise linear motorized zoom ranging from 11°-23° built into a very compact and light weight stylish MINI housing. The MINISPOT 250Z features a 7500K 250W LED with high intensity and efficiency through a set of high resolution glass lens which helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, 3-facet prism, linear electronic focus, frost filter, 0-100% linear LED dimmer, variable speed shutter/strobe. It’s fast and quiet moving head with smooth PAN/TILT movement.

The MINISPOT 250Z is perfect option for large scale live concerts, TV productions, road shows, clubs, etc.

IP_19

  • Light Source
  • Source: 250W White LED engine
  • Color Temperature: 7500K
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

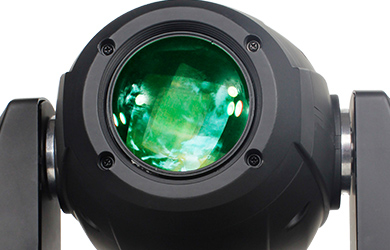

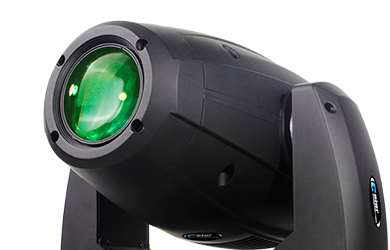

  • Optics
  • A set of high resolution and precise optics
  • 11°-23°Smooth and quiet linear motorized zoom
  • 2.5M-15M Linear electric focus

  • Movement
  • PAN movement: 540°/630°/ 360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 2-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Color System
  • 1 Color wheel with 7 dichroic colors plus open (half color mode available)
  • Variable direction rainbow effect with speed adjustable
  • Color time controllable

  • Gobo System
  • 1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • Gobo indexing available
  • Gobo size 22.9mm (external)/16mm (inner)
  • 1 Static gobo wheel with 8 gobos plus open
  • Gobo overlay (gobo morphing)
  • Gobo time controllable
  • Prism System
  • 3-Facet prism with variable speed and direction
  • Strobe Effect
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect

  • Dimming System
  • 0-100% Smooth linear LED dimming
  • 2 Dimming modes: smooth mode/fast mode

  • Control System
  • 14/16/18 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound sensitivity adjustable
  • DMX recorder and edit function integrated
  • Shielded input signal protection for stable signal without interference
  • 3-Pin XLR DMX connectors IN/OUT

  • Wash System
  • Linear frost filter (Hybrid effect for wash)
  • Even and soft coverage

  • Preset Program
  • Auto programs

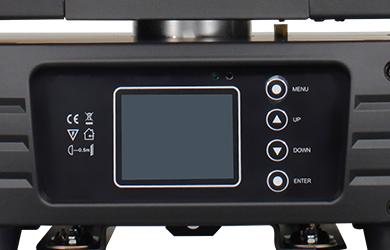

  • Display System
  • 2.4" TFT LCD display (320*240pix)
  • 4 Control buttons
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds
  • DMX signal monitoring indicator

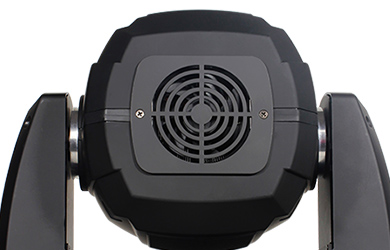

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)
  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz

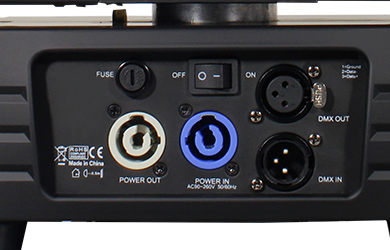

  • PowerCON IN/ OUT with power switch and fuse
  • 375W Power consumption

  • Housing
  • High intension moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point

  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 14.2kg
  • G.W.: 17.42kg

  • Dimensions
  • Product Dimensions: 209(D)*367(W)*505(H)mm
  • Packing Dimensions: 450(D)*410(W)*520(H)mm


Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*250W 7500K white LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel:14/16/18 DMX channels USITT DMX-512
Power Consumption: 290W
Dimensions:209(D)*367(W)*505(H)mm
Packing Dimensions:410(D)*450(W)*520(H)mm
Net Weight:14.20kg
Gross Weight: 17.42kg

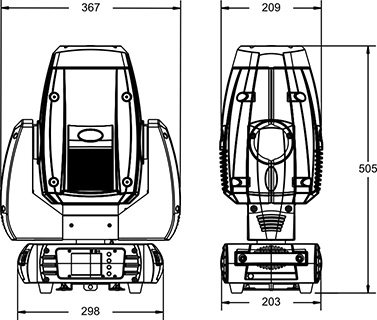

SI-171 SIZE

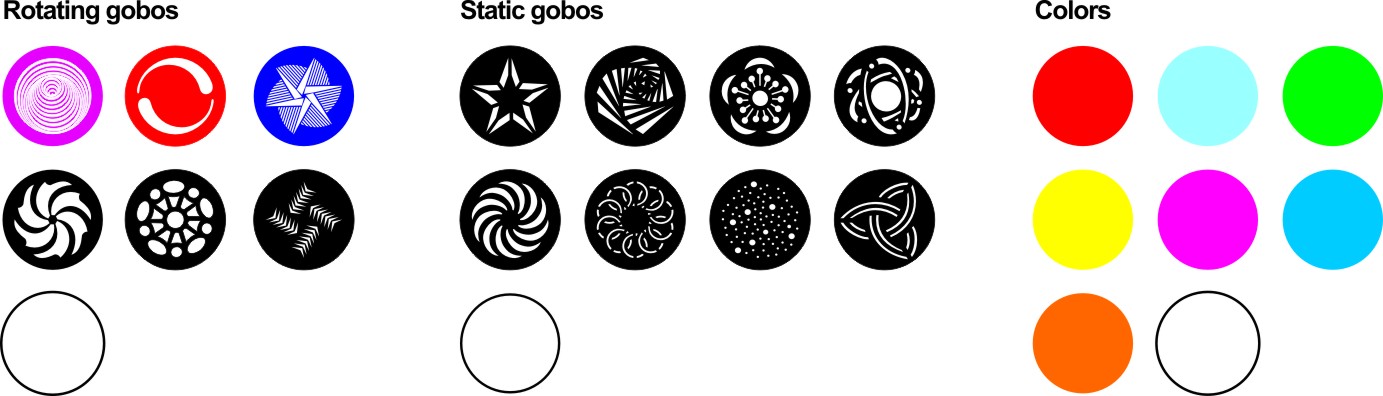

EN SI-171 GOBO

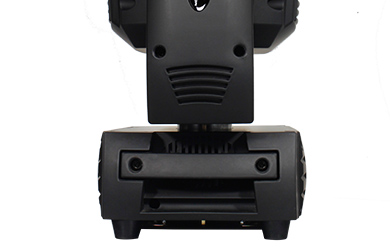

Details

  • a.jpg
  • b_28
  • c_27
  • d_27
  • e_15
  • f_15

Effect Pictures

  • b_130
  • a_133
  • c_129
  • d_77
  • e_34
  • f_36
  • g
  • h.jpg
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
