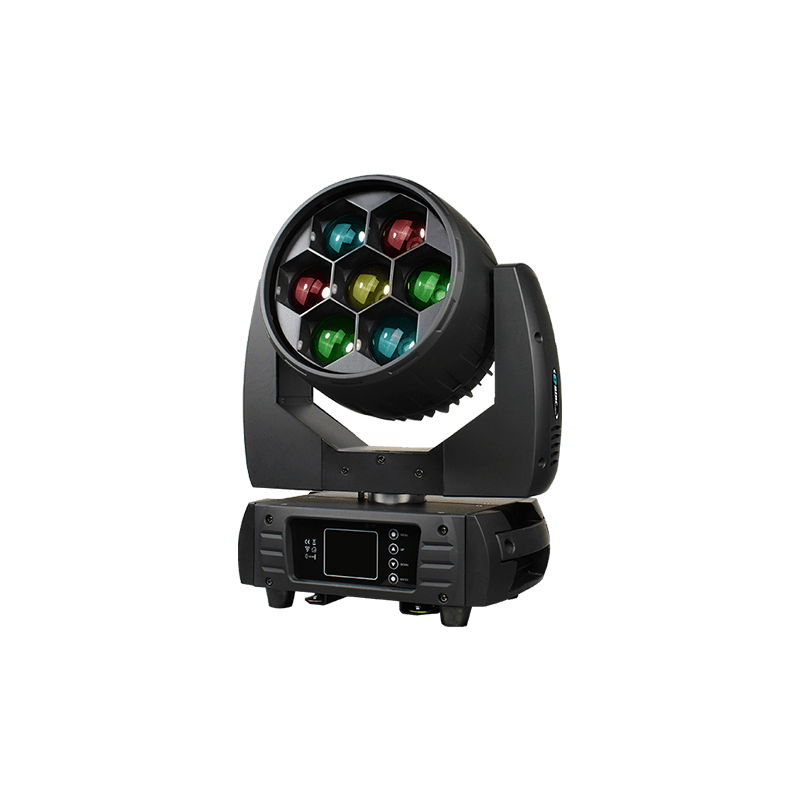

Model: SI-133B MINIZOOM 740FP

As a fresh member joining Color Imagination’s MINI family, the MINIZOOM 740FP is the most smart and compact stylish moving head wash fixture with a smooth, fast and quiet motorized zoom from 8°-62°range. It features 7*40W 4-in-1 RGBW leds. MINIZOOM 740FP is available for pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The MINIZOOM is a flicker-free based fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, internal programs and pre-programmed macro effects to it’s users for easy operation. It also comes with incredibly fast and smooth pan/tilt movements, simple and complex DMX channel profiles. The 2*1/4 turn  fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy

The MINIZOOM 740FP is applicable for large scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, discos, etc.



  • Light Source
  • Source: 40W 4-in-1 RGBW LED
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

  • Optics
  • 7PCS high efficiency acrylic lens
  • Optimized light pipe for higher LED efficiency
  • 8°-62°Smooth and quiet linear motorized zoom with fine control

  • Movement
  • PAN movement: 630°/540°/360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 2-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Colors
  • Pixel mapping capability with each LEDs controllable individually
  • Sophisticated 4 colors RGBW mixed
  • Even and soft light coverage with pure mixing
  • Preset color macros
  • 2800K-3200K virtual tungsten lamp simulation
  • 3200K-8000K linear color temperature adjustment
  • Preset dynamic patterns with variable speed and bi-directional rotation
  • Preset static patterns
  • Preset foreground color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Preset background color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Strobe Effect
  • 1-25T/sec high speed shutter/strobe effect with variable speed
  • Random strobe effect with variable speed
  • Preset pulse strobe effect

  • Dimming System
  • 0-100% Smooth linear LED dimming

  • Control System
  • 14/20/44/50 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound control sensitivity adjustable
  • Multi preset internal programs
  • DMX recorder and edit function integrated
  • Shielded input signal protection for stable signal without interference
  • 3-Pin XLR connectors IN/OUT

  • Display System
  • 2.4" TFT LCD display
  • English/Chinese menu
  • 4 control buttons
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic power supply
  • AC100-240V 50/60Hz
  • PowerCON IN/OUT with swtich and fuse
  • 420W Power consumption
  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point

  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 9.5kg
  • G.W.: 12kg

  • Dimensions
  • Product Dimensions: 225(D)*327(W)*397(H)mm
  • Packing Dimensions: 410(D)*305(W)*475(H)mm


Input Voltage: AC90-260V 50/60Hz
LED Quantities: 7*40W 4-IN-1 LUMINUS RGBW LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 14/20/44/50 DMX channel modes USITT DMX-512
Power Consumption: 345W
Dimensions: 225(D)*327(W)*397(H)mm
Packing Dimensions: 320(D)*430(W)*490(H)mm
Net Weight: 9.30kg
Gross Weight: 12.20kg
