ZOOMPANEL 915FP

Model: SI-172 ZOOMPANEL 915FP

The ZOOMPANEL 915FP(3*3) is a very compact and light weight matrix LED moving head panel with infinite (continuous) PAN/TILT movement and 9*15W 4-in-1 LEDs fitted with quiet and smooth motorized zoom ranging from 5° -60° integrated with high efficiency optics, available for pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color with remarkable color mixing advantage. It provides variable speed shutter/strobe effect, internal programs and different kinds of pre-programmed macro effects to it’s users for easy operation. It could be controllable through DMX 512 protocol (or optional specific computer control software through the ART-NET interface, RJ45). The moving is capable of creating amazing novel effects by professional programming

The ZOOMPANEL 915FP could be use in large scale live concerts, TV studios, video productions, road shows, mobile DJ, clubs, disco, etc.

9*15W 4-IN-1 RGBW LEDs
50,000 hours lifespan and low power consumption
Pixel mapping capability with each LEDs controllable individually
Specific optic lens of highly efficient elements integrated with glass tube
Fast, smooth and quiet motorized zoom with 5° -60°range
Even, soft edge and pure color mixing coverage
Flicker free sources management
Smooth, fast and precise infinite (continuous) PAN/TILT movement
Scan position memory, auto reposition after unexpected movement
0-100% Smooth linear LED dimmer
Amazing visual effect by pro control
Multi uilt-in default programs for easy operation
Different Kinds of pre-programmed macro effects with variable speed
Variable speed strobe effect with 1-25 flashes per second
Variable pusle and random effects
13/18/26/50 DMX channel modes USITT DMX-512
DMX512, master-slave and sound activated controllable or auto operation
Sound control with sensitivity adjustment
2.4" TFT LCD display (320*240pix) with 4 control buttons
LCD display switch-off automatically after 60 seconds
180°Reversible for LCD display
DMX signal monitoring indicator available
Lower noise and efficient FAN cooling system
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over heat protection management
Powercon IN/ OUT with power switch and fuse
3-Pin DMX connectors IN/OUT
IP20 protection rating
-20℃ to 45℃ ambient temperature
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
CE (EMC/LVD) and RoHS certified

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 9*15W 4-IN-1 RGBW LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 13/18/26/50 DMX channel modes USITT DMX-512
Power Consumption: 240W

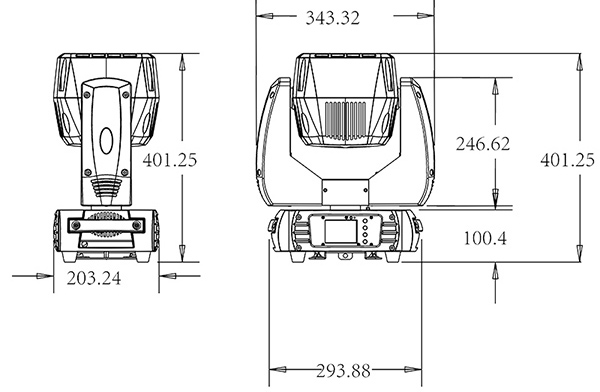

Dimensions: 204(D)*344(W)*402(H)mm
Packing Dimensions: 265(D)*485(W)*555(H)mm
Net Weight: 9.2kg
Gross Weight: 12kg
