Model: SI-121A LEDSTROBE 5730A

The LEDSTROBE 5730 series fixtures are ultra high power LED strobe lights, available for 3 versions in different sizes of housing as followed:



1320PCS SMD 5730 white LEDs (6500K, 0.5W)

960PCS SMD 5730 white LEDs (6500K, 0.5W)

480PCS SMD 5730 white LEDs (6500K, 0.5W)



The LEDs are divided into sections controllable individually that provides more control options for users. It offers very high speed running or jumping shutter/strobe effects, more dynamic than conventional discharge strobe systems.



It’s applicable for live concerts, DJ shows, TV productions, clubs, pubs, etc.


  • 1320PCS SMD 5730 white LEDs (6500K, 0.5W)
  • Multi sections of LEDs controllable individually
  • 50,000 hours lifespan and low power consumption
  • Variable speed multi directional shutter/strobe effect
  • 0-100% Linear LED dimmer
  • Built-in default programs
  • 6/11 DMX channel modes USITT DMX-512
  • DMX512, master-slave and sound activated controllable or auto operation

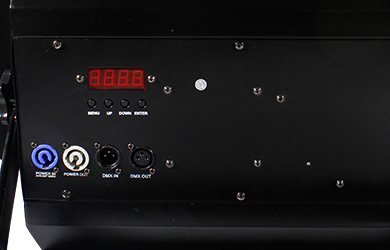

  • LED display with 4 control buttons
  • Powercon IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Fan cooling system
  • -35°C -45°C max ambient temperature
  • IP20 protection rate
  • Barn door including
  • Dual mounting brackets

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 1320PCS SMD 5730 white LEDs (6500K, 0.5W)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 6/11 DMX channel modes USITT DMX-512
Power Consumption: 660W/480W/240W
Dimensions: 140(D)*560(W)*340(H)mm
Packing Dimensions: 240(D)*660(W)*440(H)mm
Net Weight: 8.5kg
Gross Weight:10kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • DMX Channels



  • DMX Channels



  • DMX Channels



Detail

  • a_78
  • b.jpg
  • c_76
2_1

Powercon

STANDARD
code:
for fixing clamps

4_1

Signal Cable

STANDARD
code:
for fixing clamps

3_1

Safety Cable

STANDARD
code:
for fixing clamps
