- MINISPOT 50

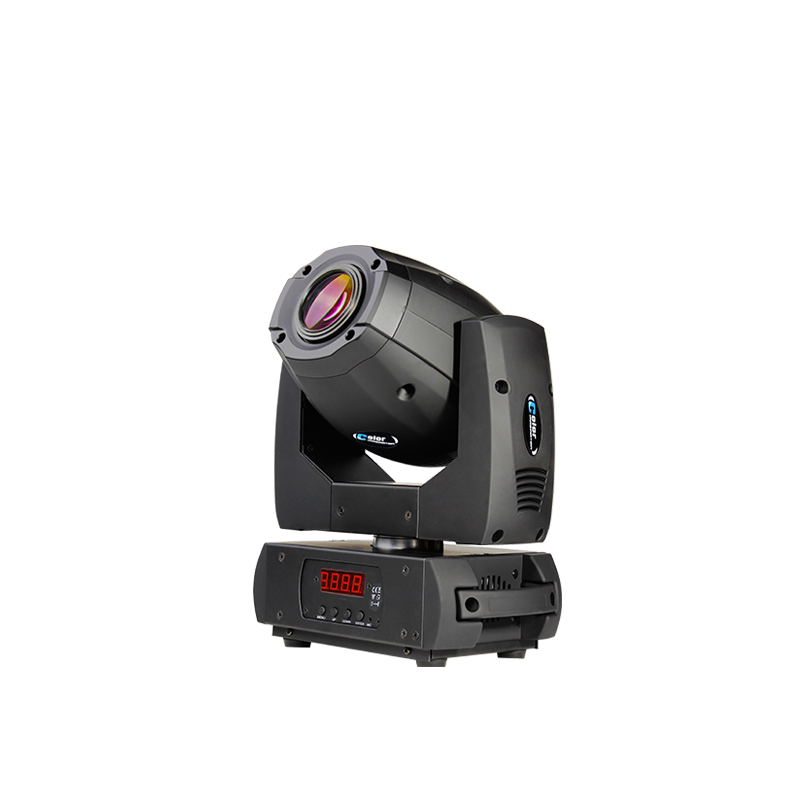

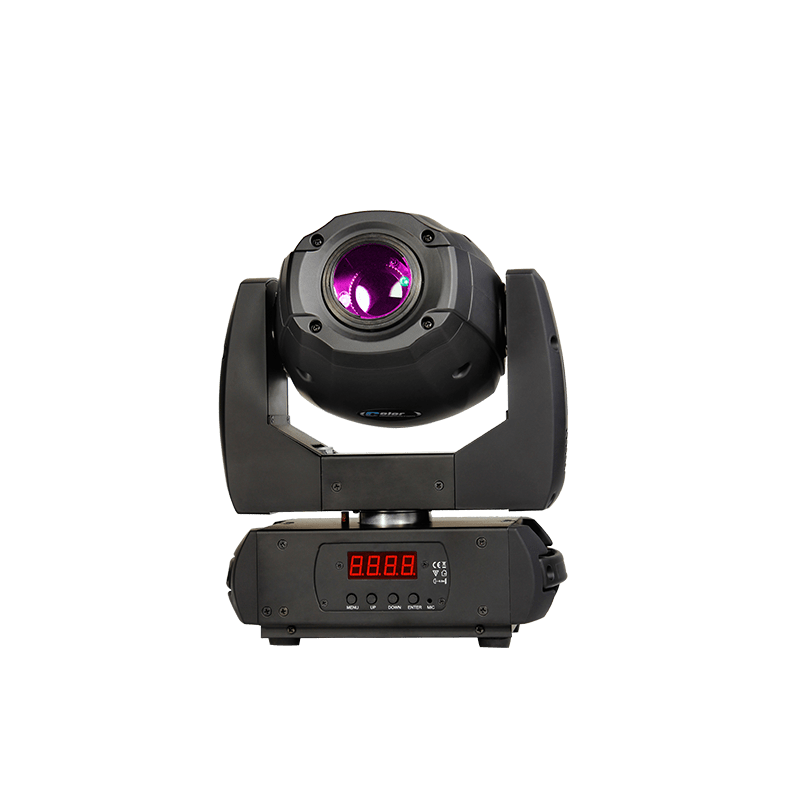

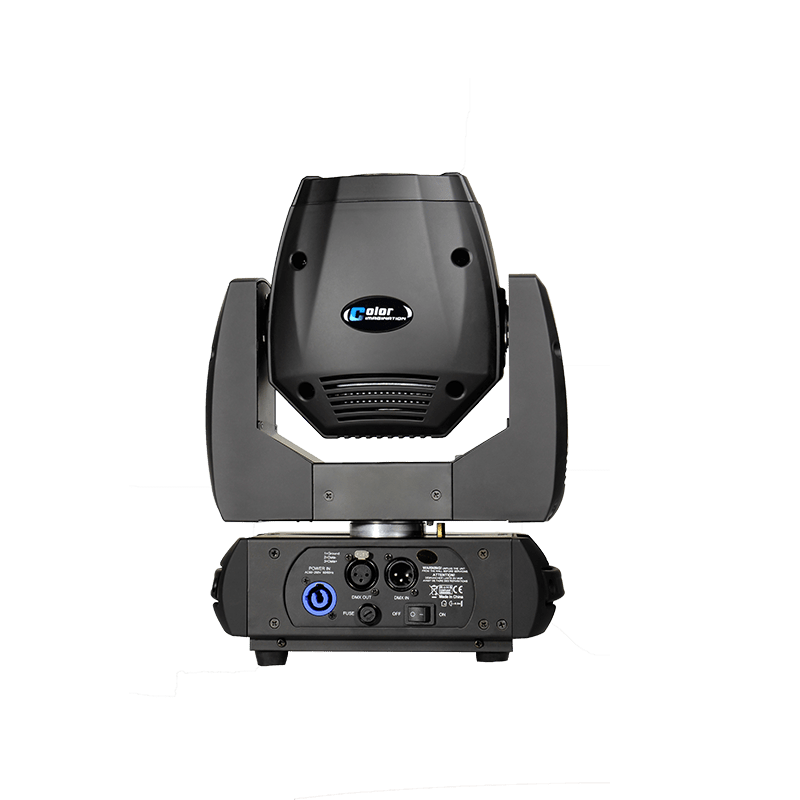

Model: SI-098 MINISPOT 50
Smaller---very compact in size and weight
Better---very high in output
The MINISPOT 50 features a 7500K 50W LED with high intensity and efficiency. It produces very high light output, through a specific 11.9° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.
The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.
- Light Source
- Source: 50W White LED engine
- Color Temperature: 7500K
- Flicker free operation for broadcast TV and FILM
- Life Span: 50000H
- The life span may vary depending on several following factors but not limited to:
-
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

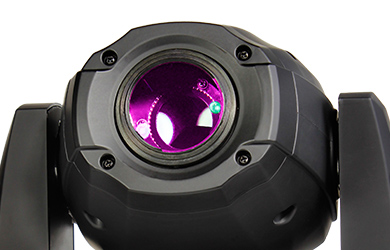

- Optics
- A set of high resolution and precise optics
- 11.9°Projection angle
-
2.5M-15M Linear electric focus
- Movement
- PAN movement: 540°630°/360°(8/16 bit)
- PAN movement: 270°/180°/90°(8/16 bit)
- Fast, quiet, smooth and precise 2-Phase motors
- Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
-
Scan position memory, auto reposition after unexpected movement
- Color System

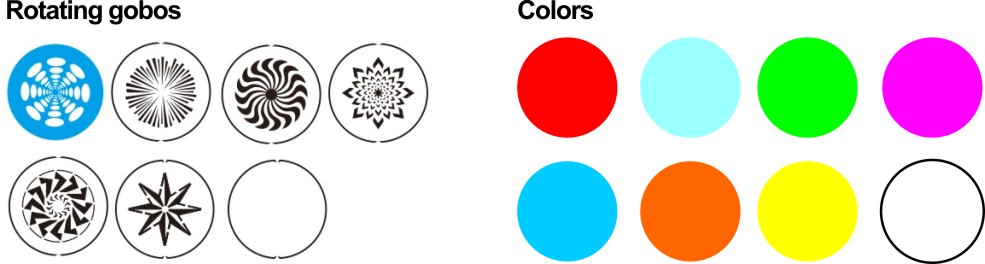

- 1 Color wheel with 7 dichroic colors plus open
-
Variable direction rainbow effect with speed adjustable
- Gobo System
-
1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
- Gobo indexing
-
Gobo size 21.8mm (external)/14.5mm (inner)
- Prism System
- 3-Facet prism with variable speed and direction
-
Strobe Effect
-
25T/sec high speed LED shutter/strobe effect with variable speed
-
Preset variable/random strobe and dimming pulse effect
-
Dimming System
-
0-100% Smooth linear LED dimming
-
Control System
-
11/13 DMX channels USITT DMX-512
-
DMX512, master-slave, Sound activated or auto operation
-
DMX recorder and edit function integrated
-
Shielded input signal protection for stable signal without interference
-

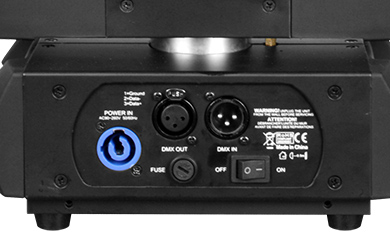

3-Pin XLR DMX connectors IN/OUT
-
Preset Program
-
Auto programs
-

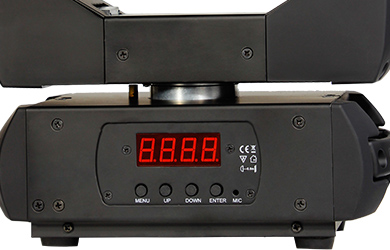

Display System
-
LED display
-
4 Control buttons
-
Display OFF in 60 seconds
-
DMX signal monitoring indicator
-
Cooling System
-
Advanced cooling system integrated with aluminum
-
Efficient low noise self adjusting fan cooling system
-
Over temperature protection management (output decreased when over heat)
-
Power Supply
-
Electronic supply with active PFC
-
AC100-240V 50/60Hz
-
PowerCON IN/ OUT with power switch and fuse
-
75W Power consumption

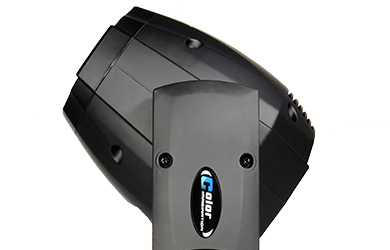

- Housing
- High intension moulded fire proof ABS PC
- Skeleton made of aluminum and steel metal plates

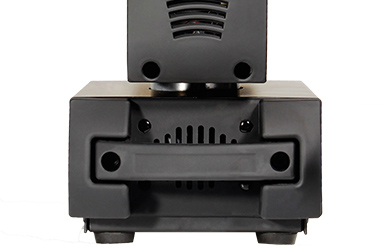

- Two side handles on base
-
Exterior finish: Black (white optional)
- Installation
- 1*1/4 turn fastening Omega Clamps
- 1*Safety attachment point
- Operating Condition
- Operating positions: all (device on floor or fixed to a support)
- -25℃ to 45℃ ambient temperature
-
IP20 protection rating
- Compliance
- CE
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
-
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- Weight
- N.W.: 6.72kg
- G.W.: 8.47kg
- Dimensions

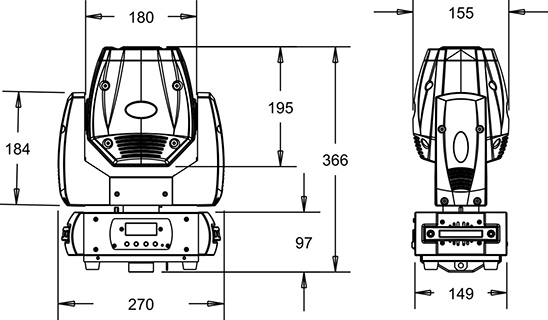

- Product Dimensions:155(D)*270(W)*366(H)mm
- Packing Dimensions: 240(D)*350(W)*450(H)mm
-
Promotional brochures
-
Manuals
-
DMX Channels
-

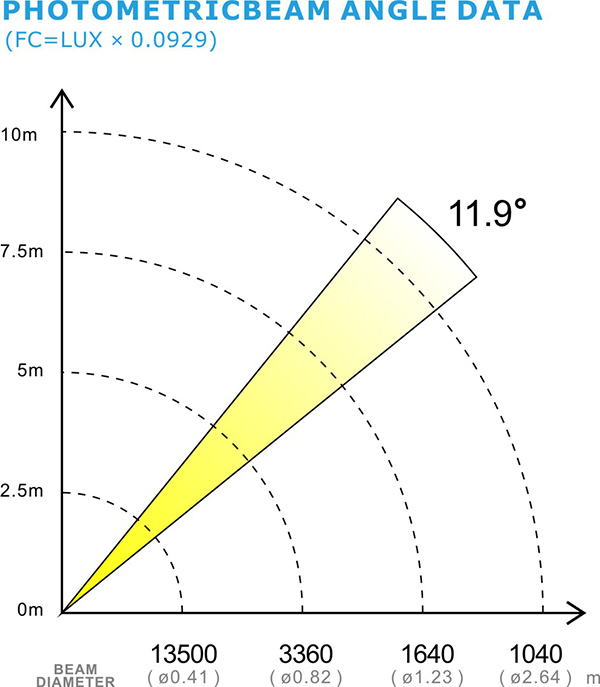

Photometrics
-
-
Certificates
-
Accessories
-
CAD Symbols
-
Details
Effect Pictures
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS

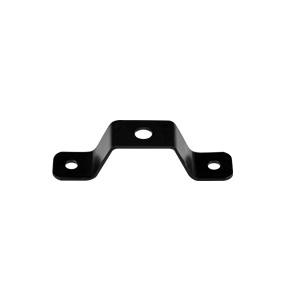

Hanging Kit
STANDARD
code:
QTY: 1PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 1PCS
