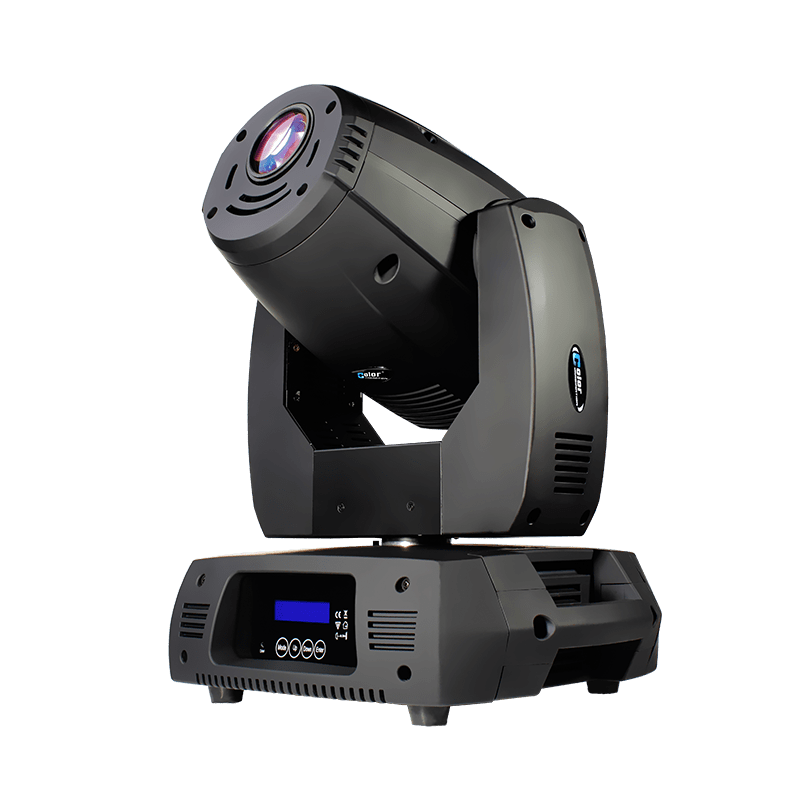

Model: SI-071L LEDSPOT 300L

The LEDSPOT 300L is a variant version from LEDSPOT 300, with ultra high brightness and low power consumption realized by a 7500K 300W single white LED lamp. It features a specific optic system with 15° fixed projection angle. It's a pro LED SPOT with outstanding light intensity, in a much compact case. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotatable gobo wheel (7 interchangeable gobos plus open), a static gobo wheel (9 gobos plus open), a color wheel (7 colors plus open), motorized linear IRIS, a prism wheel (3-Facet prism, linear prism and variable frost filter), motorized linear focus, 0-100% linear LED dimmer, variable speed shutter/strobe.


  • A*300W white LED lamp,7500K
  • 50000 hours life span and low power consumption
  • 8/16 bit smooth and precise resolution for PAN/TILT movement
  • 540°/630° PAN and 270° TILT movement
  • Scan position memor y, auto reposition after unexpected movement

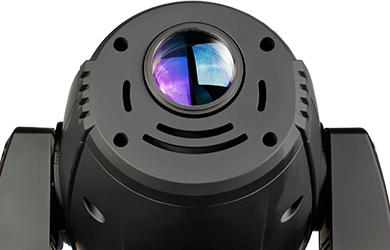

  • Specific 15° projection angle
  • Improved optics and flat beam field
  • 1 Rotatable gobo wheel with 7 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • Gobo indexing
  • Gobo size 26.9mm (external dimensions)/21mm (inner dimensions)
  • 1 Static gobo wheel with 9 gobos plus open
  • Gobo overlay (gobo morphing)
  • 1 Color wheel with 7 colors plus open
  • Variable direction rainbow effect with speed adjustable
  • 2.5m-15m electric focus
  • 1 Effect wheel with 3-Facet prism, linear prism and frost filter with
  • variable speed and direction
  • Motorized linear IRIS
  • 0-100% Linear LED dimmer
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • Customizable DMX channel assignment (16CH)
  • 16/14/16 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto
  • operation (8 built-in programs)
  • DMX recorder and edit function integrated

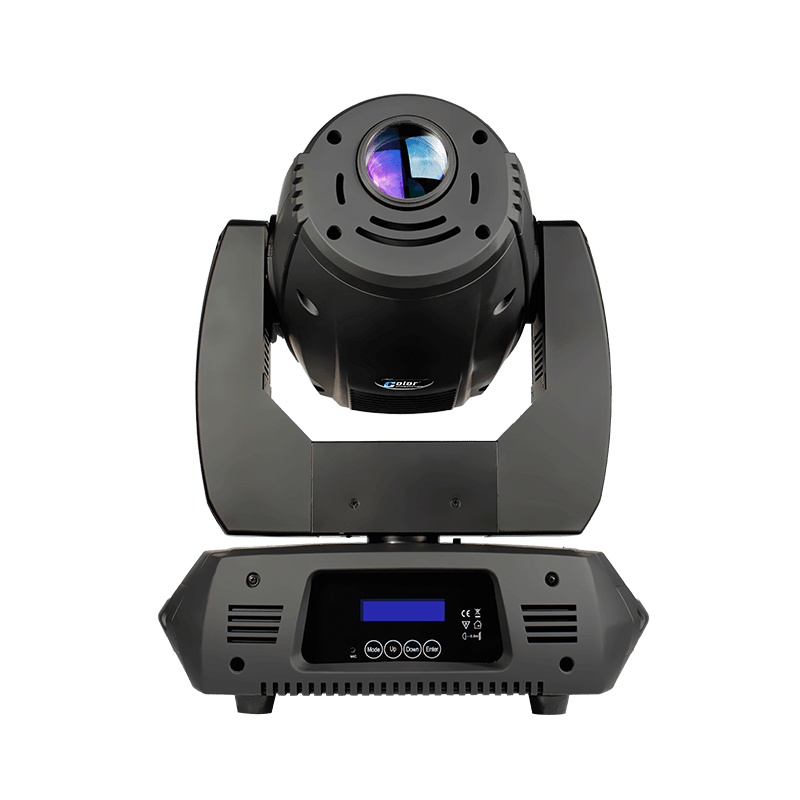

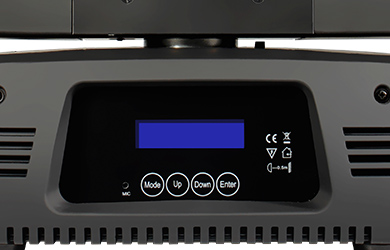

  • Blue background LCD display

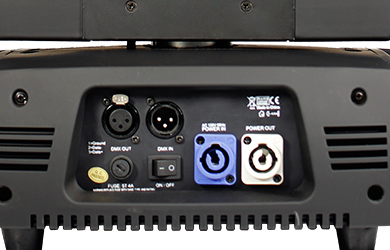

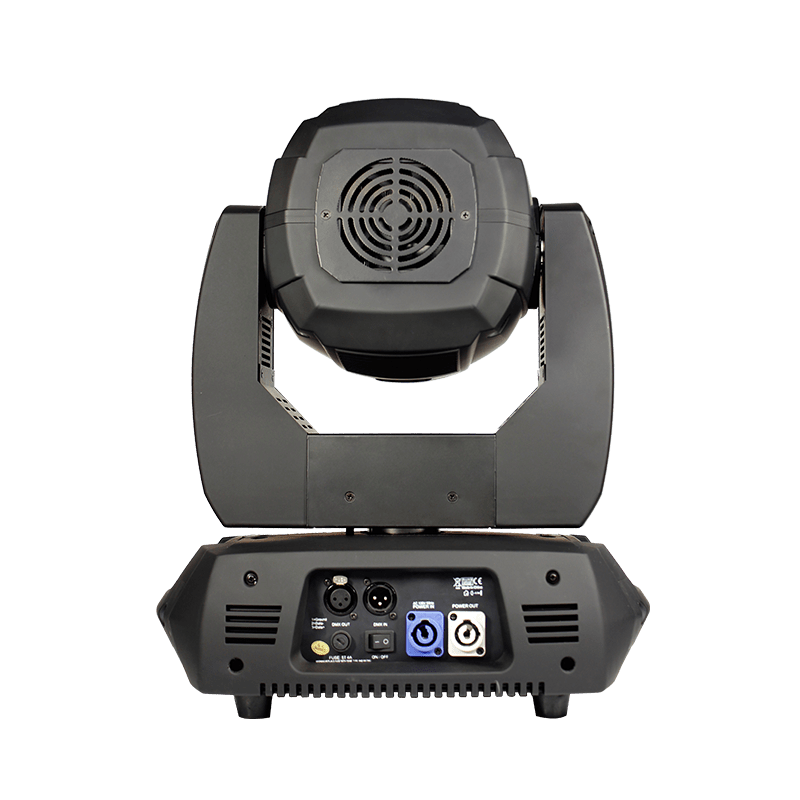

  • Powercon IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Fan cooling system
  • Constant temperature readout and management function
  • -20°C ~ 45°C max ambient temperature
  • IP20 protection rating
  • 2*1/4 turn fastening Omega clamps
  • 1* Safety attachment point

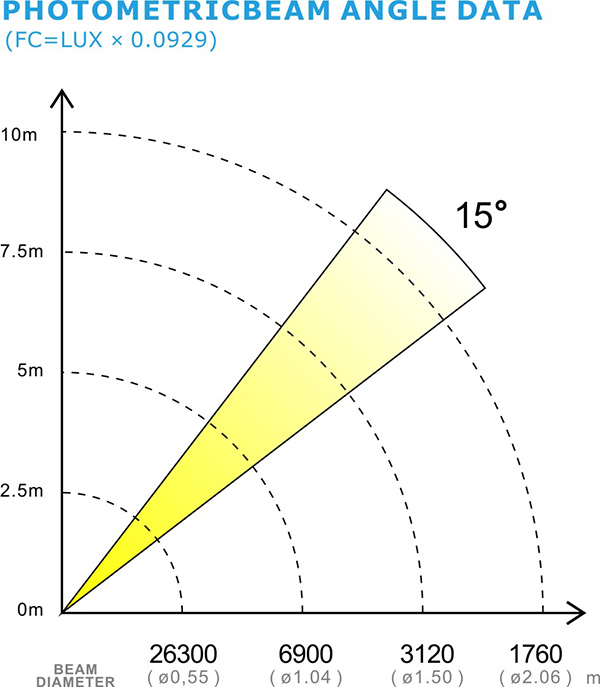

PHOTOMETRIC BEAM ANGLE DATA.jpg

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1*300W white LED lamp
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 16/14/16 DMX channels USITT DMX-512
Power Consumption: 390W

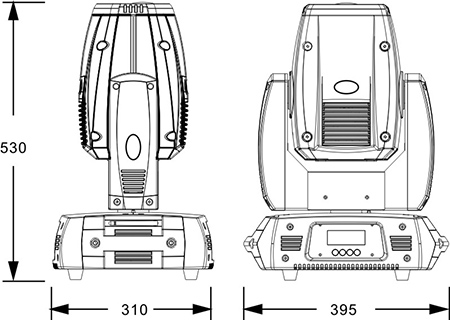

Dimensions: 310(D)*395(W)*530(H)mm
Packing Dimensions: 430(D)*510W)*675(H)mm
Net Weight: 14kg
Gross Weight: 16.6kg

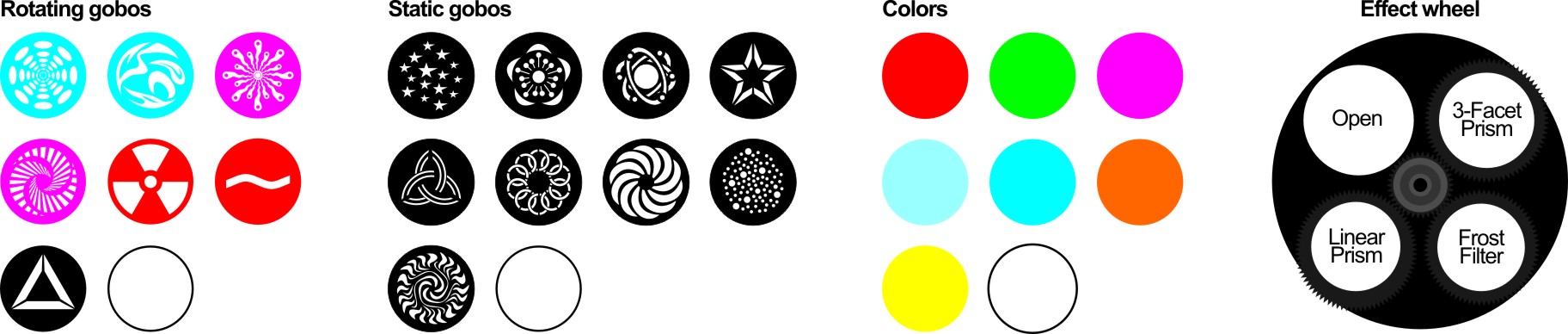

GOBOS-COLORS_30

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries

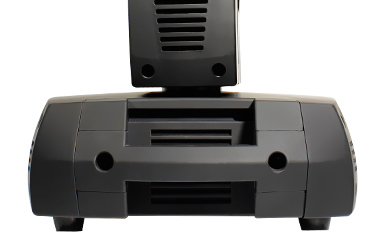

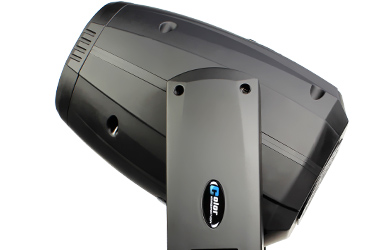

Details

  • a.jpg
  • b_34
  • c_33
  • d_34
  • f_19
  • e_19

Effect Pictures

  • d.jpg
  • a_35
  • b_35
  • c_34
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
