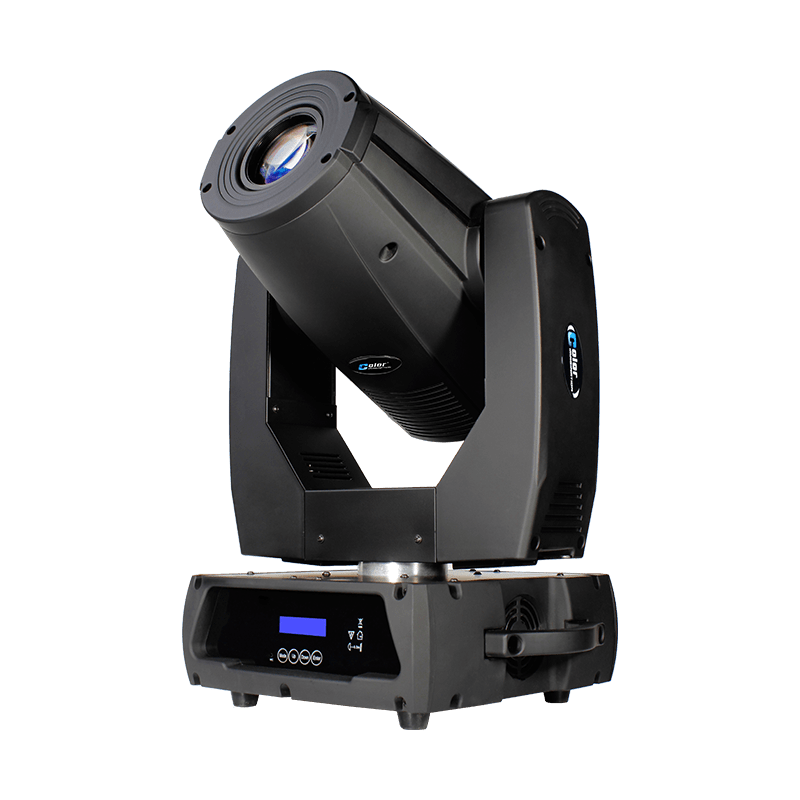

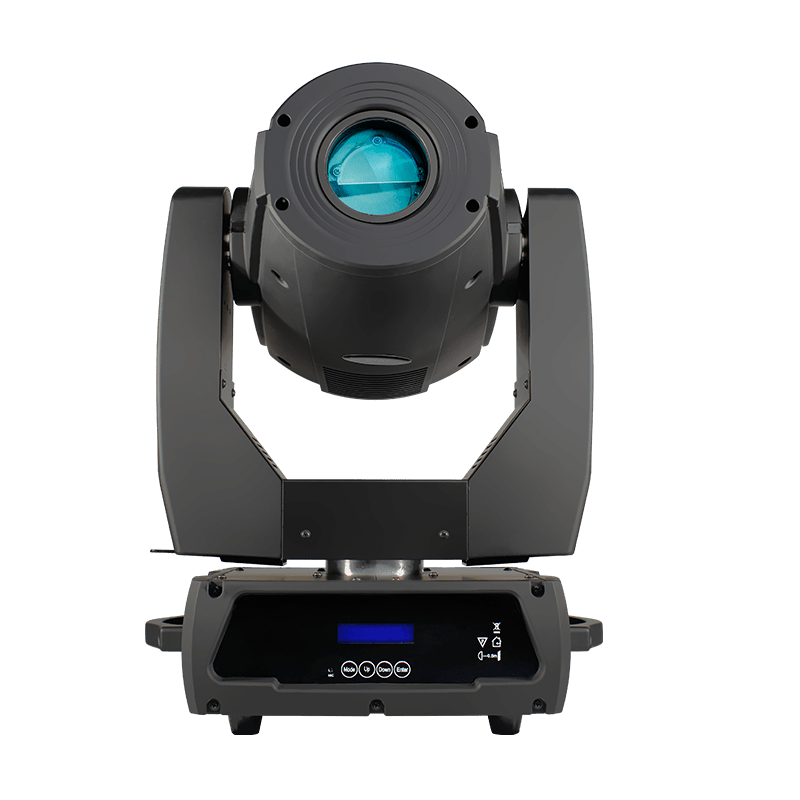

LEDSPOT 300

Model: SI-071 LEDSPOT 300

The LEDSPOT 300 with ultra high brightness and low power consumption realized by a 7500k 300W single white LED lamp. It features a 12° to 36° linear motorized zoom that brings much wider application capability for pro lighting designers. It's a pro LED SPOT with outstanding light intensity, in a compact case. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotatable gobo wheel (7 gobos plus open), a static gobo wheel (9 gobos plus open), a color wheel (7 colors plus open), motorized linear IRIS, 3-Facet rotating prism, variable frost filter, motorized linear focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

A 300W white LED lamp,7500K
50000 hours life span and low power consumption
8/16 bit smooth and precise resolution for PAN/TILT movement
540°/630° PAN and 270° TILT movement
Scan position memory, auto reposition after unexpected movement

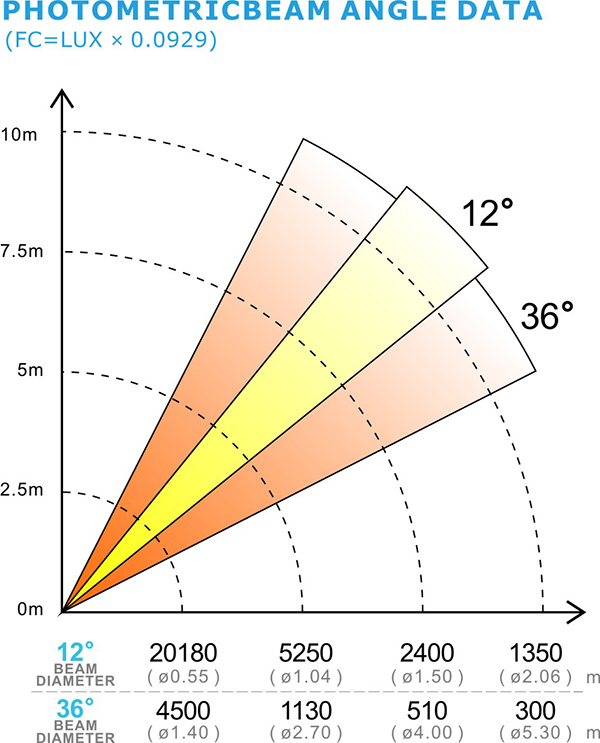

Linear motorized zoom with 12° to 36° beam angle
Improved optics and flat beam field

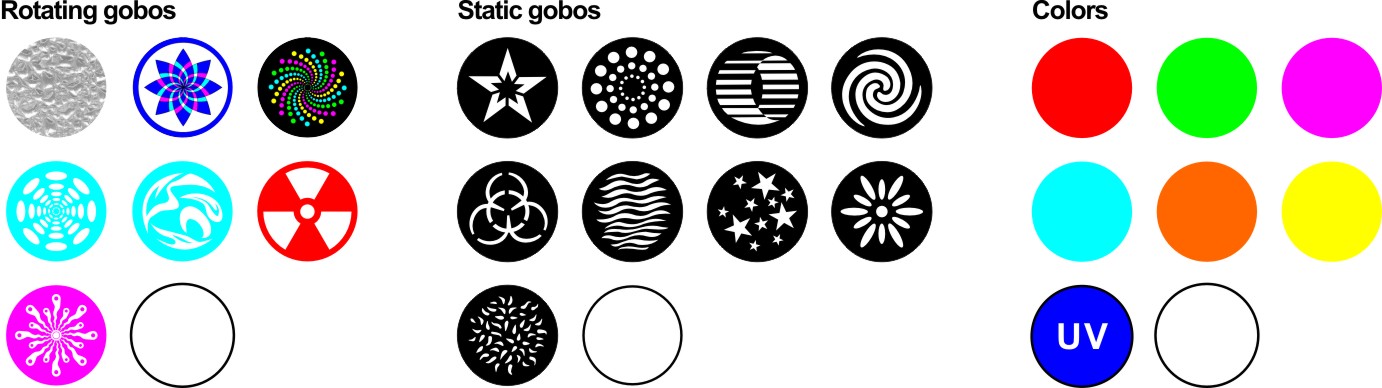

1 Rotatable gobo wheel with 7 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing
Gobo size 26.9mm (external dimensions)/21mm (inner dimensions)
1 Static gobo wheel with 9 gobos plus open
Gobo overlay (gobo morphing)
1 Color wheel with 7 colors plus open
Variable direction rainbow effect with speed adjustable
2.5m-15m electric focus
Motorized linear IRIS
3-Facet prism with variable speed and direction
Variable linear frost filter (Hybrid effect for wash)
0-100% Linear LED dimmer
25T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
Customizable DMX channel assignment (17CH)
17/15/17 DMX channels USITT DMX-512
DMX512, master-slave, and sound activated controllable or auto
operation(8 built-in programs)
DMX recorder and edit function integrated

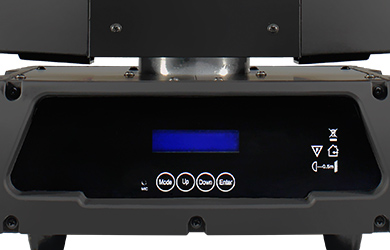

Blue background LCD display

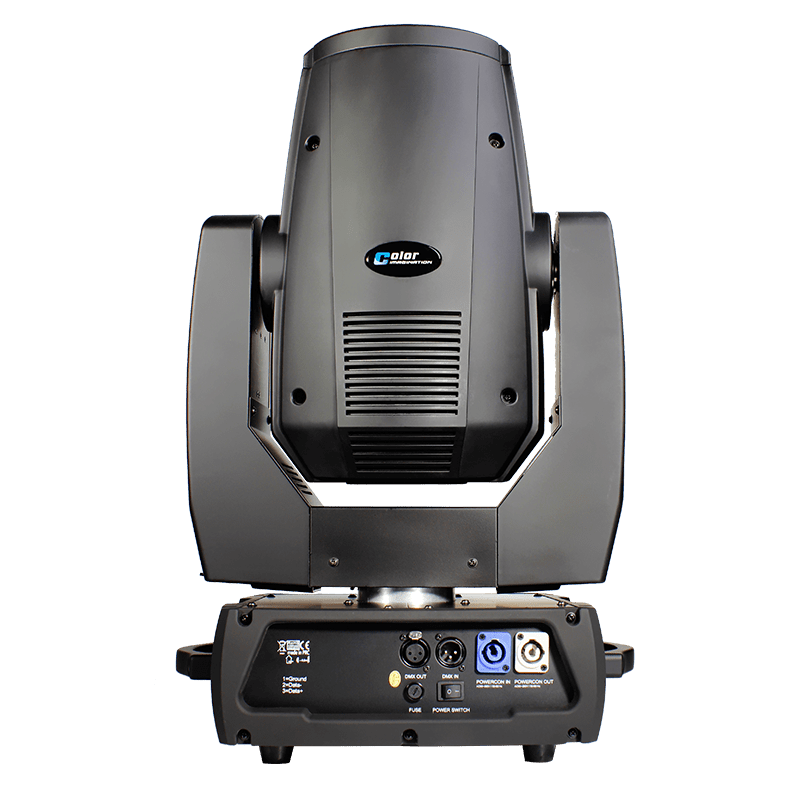

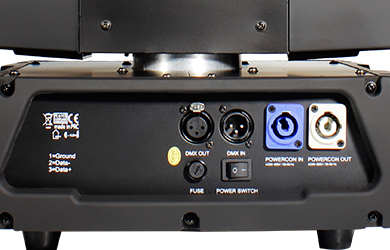

Powercon IN/OUT
3-Pin XLR connectors IN/OUT

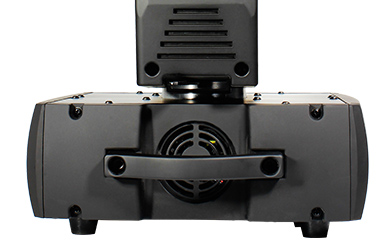

Fan cooling system
Constant temperature readout and management function
-20°C ~ 45°C max ambient temperature
IP20 protection rating
2*1/4 turn fastening Omega clamps
1* Safety attachment point

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1*300W white LED lamp
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 17/15/17 DMX channels USITT DMX-512
Power Consumption: 390W

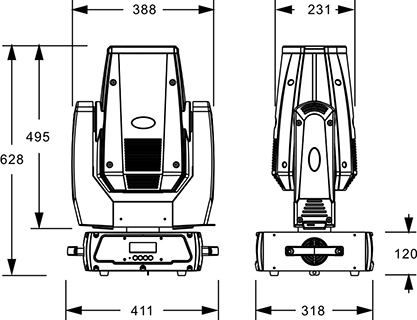

Dimensions: 318(D)*411(W)*628(H)mm
Packing Dimensions: 485(D)*465(W)*685(H)mm
Net Weight: 21kg
Gross Weight: 24kg
