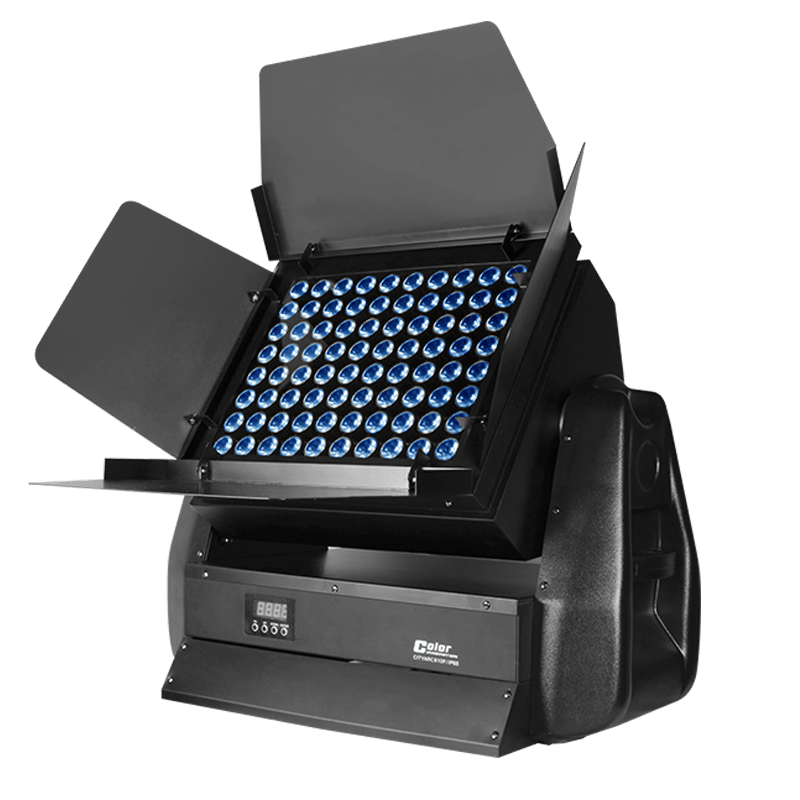

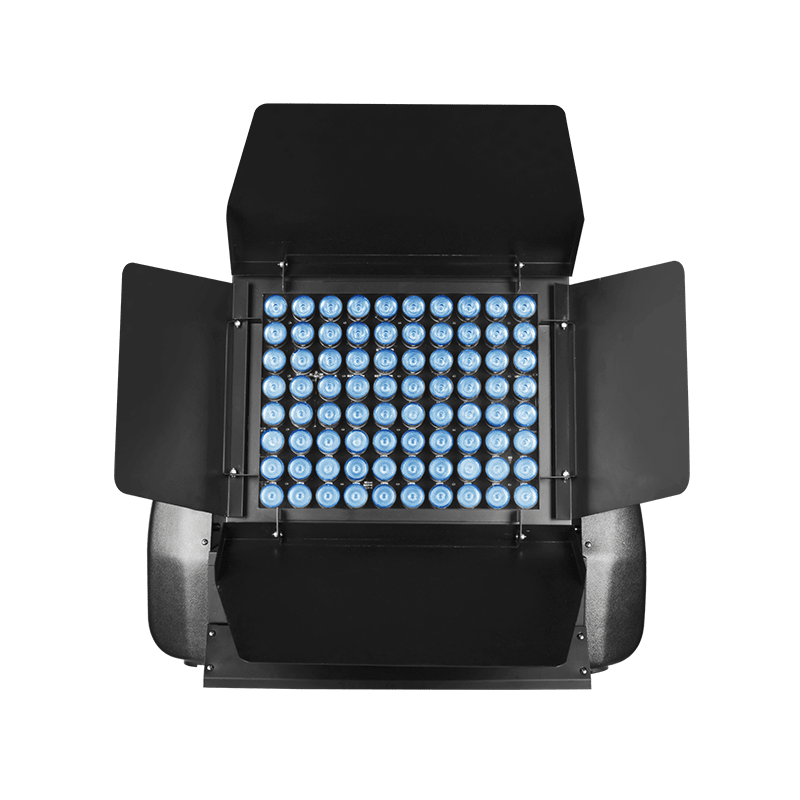

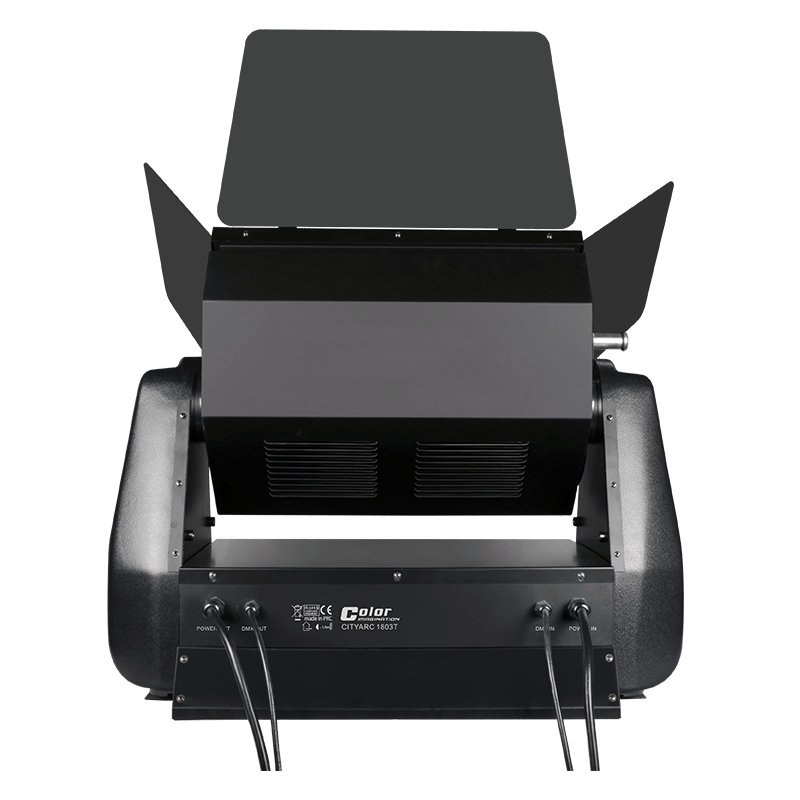

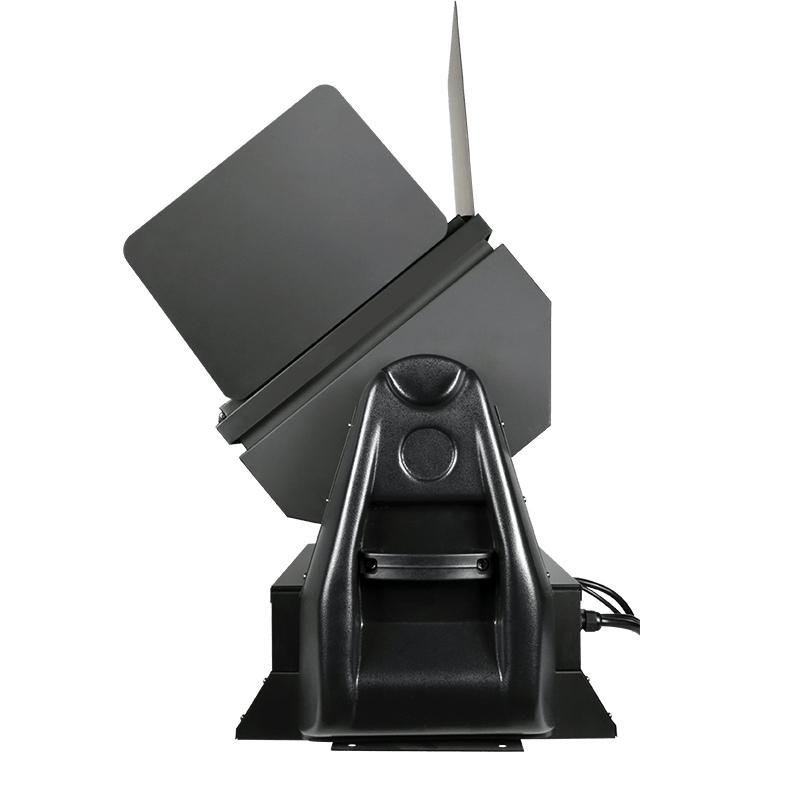

Model: W-001 CITYARC 810F

The CITYARC 810F has an IP65 rated waterproof body with TILT angle adjustable manually to light up your large architectures at any angle with any colors by mixing.It meets any kinds of needs on applications with an extremely incredible light output. It offers a complete solution for specialized architectural projects with high standard requirements.

IP_16

  • 80PCS 10W 4-IN-1 LEDs
  • 16.7 millions of colors by mixing
  • Specific 25 degree high efficiency optic lens
  • 50,000 hours life span and lower power consumption
  • Controllable manually for TILT angle adjustment
  • LED shutter effect
  • Smooth LED dimming
  • LED rainbow effect
  • Macro effect
  • Strobe effect with 25 flashes per second and pulse effect
  • General dimming and blackout for all four colors
  • 4/6/8 DMX Channels USITT DMX-512
  • DMX512, master-slave and sound activated controllable or auto operation
  • LED display
  • Waterproof power connectors IN/OUT
  • 3-Pin DMX waterproof connectors IN/OUT
  • -45°C to 45°C operation temperature
  • Die-cast aluminum structure
  • IP65 protection rating

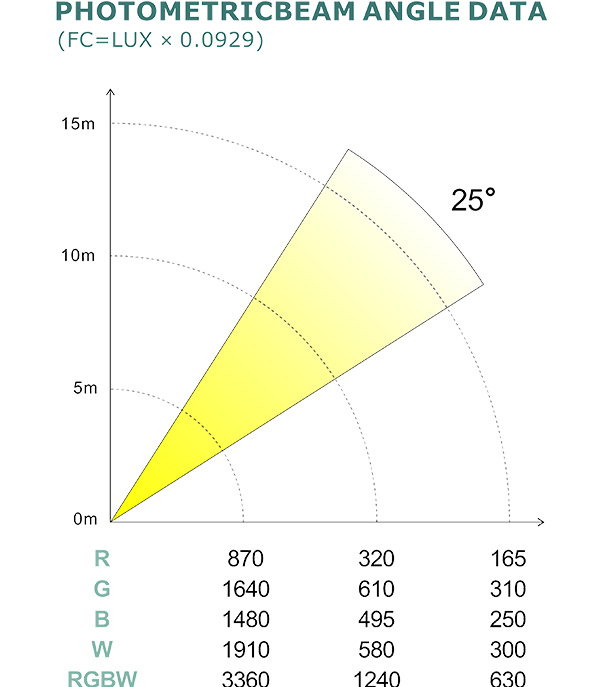

PHOTOMETRIC BEAM ANGLE DATA.jpg



Input Voltage: AC90-260V 50-60Hz
LED Quantities: 80PCS 10W 4-IN-1 LEDs
Control Signal:DMX512, master-slave and sound
                       activated  or auto operation
Control Channel: 4/6/8 DMX Channels USITT DMX-512
Power Consumption: 870W

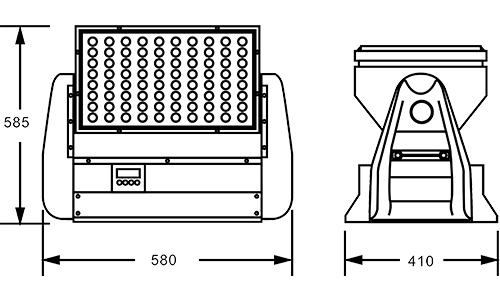

Dimensions:  410(D)*580(W)*585(H)mm
Packing Dimensions:  590(D)*490(W)*730(H)mm
Net Weight:  23kg
Gross Weight:  27kg

SIZE_77
  • Promotional brochures



  • Manuals



  • DMX Channels



  • DMX Channels



  • DMX Channels



  • DMX Channels

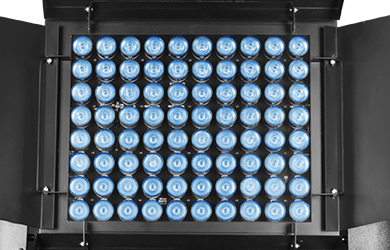

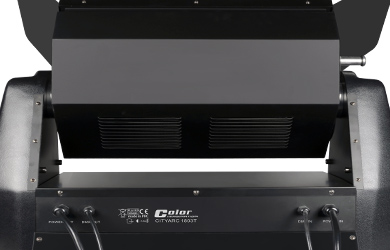

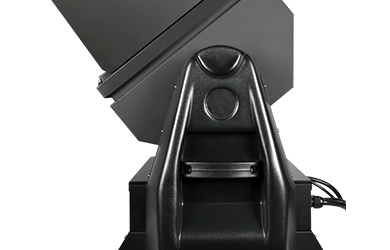

Detail

  • a.jpg
  • b_117
  • c_116

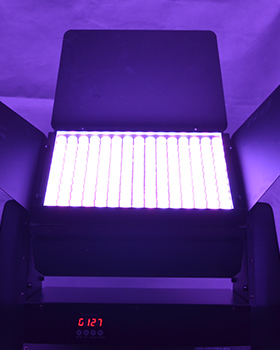

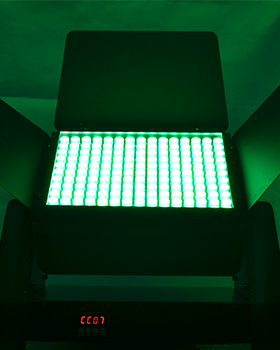

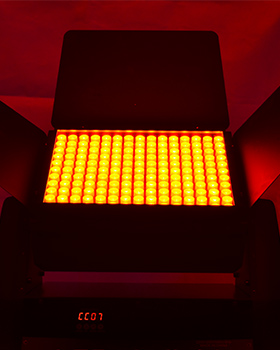

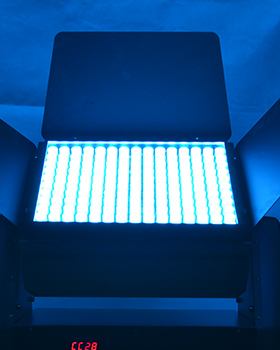

Effect diagram

  • a.jpg
  • b_118
  • c_117
  • d_75
3_1

Safety Cable

STANDARD
code:
for fixing clamps
