PROBEAM 295 SI-320


ThePROBEAM 295 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features a Philips MSD Platinum 14R Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, two prisms, 7-color effect wheel, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable, etc. The fixture supports DMX, RDM (Remote Device Management).


The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the PROBEAM 295 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.

Technical specifications

  • Light Source

    Source: Philips MSD Platinum 14R Lamp
    Color Temperature: 7800 K
    Flicker free operation for broadcast
    TV and FILM
    Life Span: 2000H
    The life span may vary depending on
    several following factors but not limited to:
    Environmental Conditions, Power/Voltage,
    Usage Patterns (On-Off Cycling), Control,



    A set of high resolution and precise optics
    Anti-reflection 140mm front lens
    2°Beam angle
    [email protected]
    Smooth and linear electric focus



    PAN movement: 540°(8/16 bit)
    PAN movement: 270°(8/16 bit)
    Fast, quiet, smooth and precise 3-Phase motors
    Magnet encoding wheel integrated with motor
    Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
    Scan position memory, auto reposition after unexpected movement
    PAN/TILT time controllable


    Color System

    1 Color wheel with 14 dichroic colors plus open (half-way color mode available)
    Variable direction rainbow effect with speed adjustable
    7-Color effect wheel with variable direction with speed adjustable
    Color time controllable


    Gobo System

    1 Static gobo wheel with 17 gobos plus open (4 glass gobo included)
    Gobo time controllable


    Prism System

    8-Facet prism with variable speed and direction
    8+16-Facet prism with variable speed and direction
    Prism morphing effect


    Strobe Effect

    20T/sec high speed shutter/strobe effect with variable speed


    Dimming System

    Smooth linear mechanichal dimming


    Control System

    16/22 DMX channels USITT DMX-512
    DMX512, master-slave, sound activated or auto operation
    Sound sensitivity adjustable
    RDM available (Remote Device Management)
    Shielded input signal protection for stable signal without interference
    3-Pin XLR connectors IN/OUT


  • Wash System

    Frost filer system (Hybrid effect for wash)
    Even and soft coverage
    Bigger wash coverage when 8-facet prism IN


    Preset Program

    Auto programs


    Display System

    1.8" High resolution TFT LCD display
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF


    Cooling System

    Efficient low noise self adjusting fan
    cooling system
    Constant temperature readout and
    management function
    Over temperature protection management


    Power Supply

    Electronic ballast: PT STAGE 295W
    Electronic power supply
    AC100-240V 50/60Hz
    PowerCON connectors IN with fuse and
    430W Power consumption



    Moulded fire proof ABS PC
    Skeleton made of
    aluminum and steel metal plates
    Two side handles on base
    Exterior finish: Black



    2*1/4 turn fastening Omega Clamps
    (Adaptable vertically and horizontally)
    1*Safety attachment point


    Operating Condition

    Operating positions:
    all (device on floor or fixed to a support)
    -25℃ to 45℃ ambient temperature
    IP20 protection rating



    2014/35/EU - Safety of electrical
    equipment supplied at low voltage (LVD)
    2014/30/EU -
    Electromagnetic Compatibility (EMC)
    2011/65/EU - Restriction of the use of
    certain hazardous substances (RoHS)



    N.W.: 12kg
    G.W.: 14.3kg

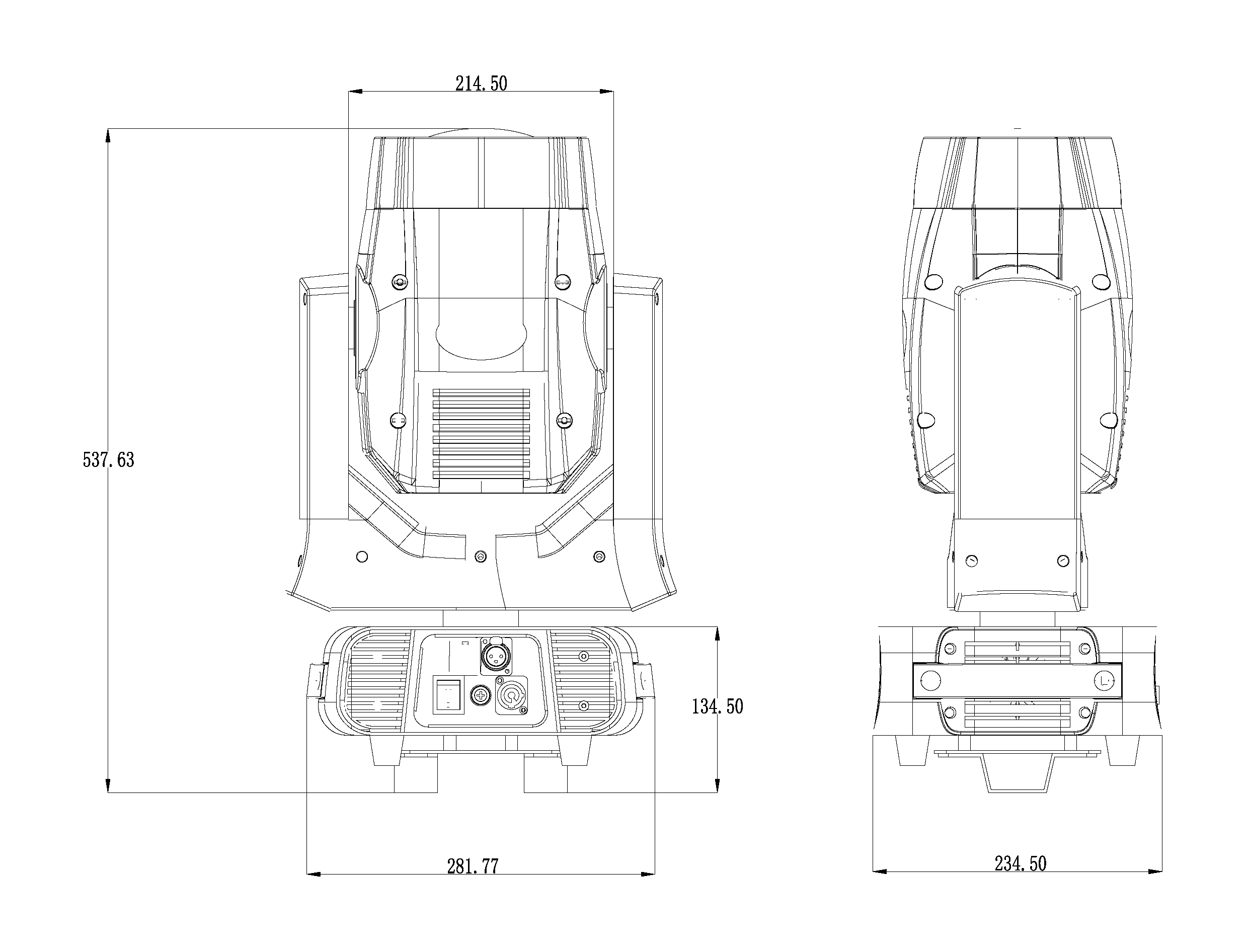

    Product Dimensions:
    Packing Dimensions:
