Model: SI-212 QBEAM 150
Smaller---very compact in size and weight
Better---very high in output
The QBEAM 150 features a 7500K 150W LED with high intensity and efficiency. It produces very high light output, through a specific 3.8° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a static gobo wheel, color wheel, 8-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.
The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.
- Light Source
- Source: 150W White LED engine
- Color Temperature: 7500K
- Flicker free operation for broadcast TV and FILM
- Life Span: 50000H
- The life span may vary depending on several following factors but not limited to:
-
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
- Optics
- A set of high resolution and precise optics
- 3.8°Projection angle
-
2.5M-30M Linear electric focus
- Movement
- PAN movement: 540°(8/16 bit)
- PAN movement: 260°(8/16 bit)
- Fast, quiet, smooth and precise 2-Phase motors
- Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
-
Scan position memory, auto reposition after unexpected movement
- Color System
- 1 Color wheel with 12 dichroic colors plus open (half color mode available)
-
Variable direction rainbow effect with speed adjustable
- Gobo System
- 1 Static gobo wheel with 10 gobos plus open with dithering effect
- Prism System
- 8-Facet prism with variable speed and direction
-
Prism indexing
- Strobe Effect
- 25T/sec high speed LED shutter/strobe effect with variable speed
- Preset variable/random strobe and dimming pulse effect
- Dimming System
-
0-100% Smooth linear LED dimming
- Control System
- 10/11/13 DMX channels USITT DMX-512
- DMX512, master-slave, Sound activated or auto operation
- DMX recorder and edit function integrated
- Shielded input signal protection for stable signal without interference
- 3-Pin XLR DMX connectors IN/OUT
- Preset Program
-
Auto programs
- Display System
- 2.0" TFT LCD display
- 4 Light touch control buttons
- 180°Reversible for LCD display
- Display OFF in 60 seconds
-
DMX signal monitoring indicator
- Cooling System
- Advanced cooling system integrated with aluminum
- Efficient low noise self adjusting fan cooling system
- Constant temperature readout and management function
-
Over temperature protection management (output decreased when over heat)
- Power Supply
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- PowerCON IN/ OUT with power switch and fuse
- 215W Power consumption
- Housing
- High intension moulded fire proof ABS PC
- Skeleton made of aluminum and steel metal plates
- Two side handles on base
-
Exterior finish: Black (white optional)
- Installation
- 1*1/4 turn fastening Omega Clamps
- 1*Safety attachment point
- Operating Condition
- Operating positions: all (device on floor or fixed to a support)
- -25℃ to 45℃ ambient temperature
-
IP20 protection rating
- Compliance
- CE
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
-
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- Weight
- N.W.: 7.9kg
-
G.W.: 9.6kg

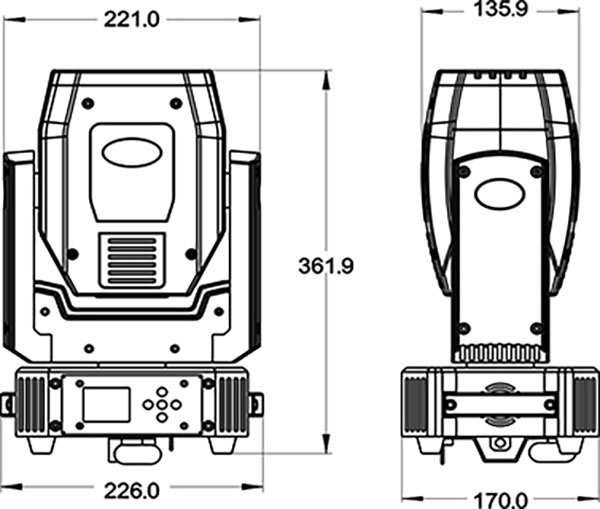

- Dimensions
- Product Dimensions:170(D)*226(W)*362(H)mm
- Packing Dimensions: 280(D)*295(W)*385(H)mm
-
Promotional brochures
-
Manuals
-
DMX Channels
-
Photometrics
-
Poster
-
Certificates
-
Accessories
-
CAD Symbols
-
Details
Effect Pictures
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 1PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 1PCS
