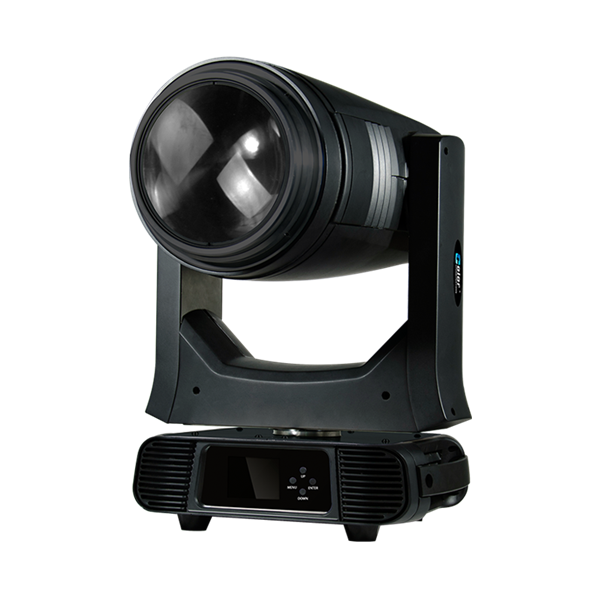

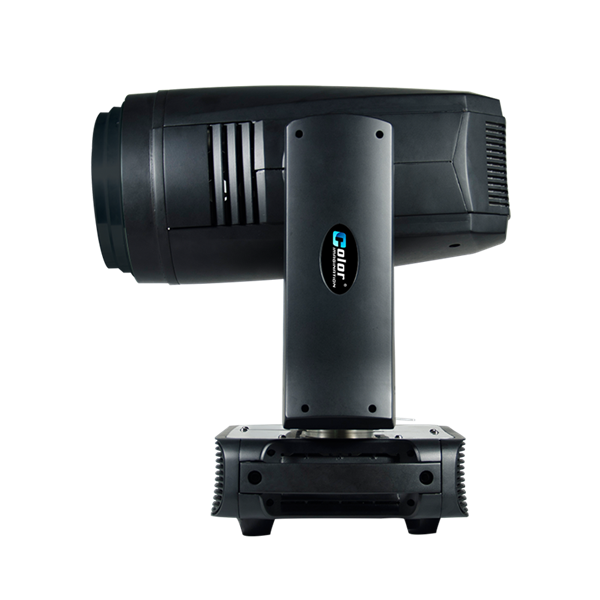

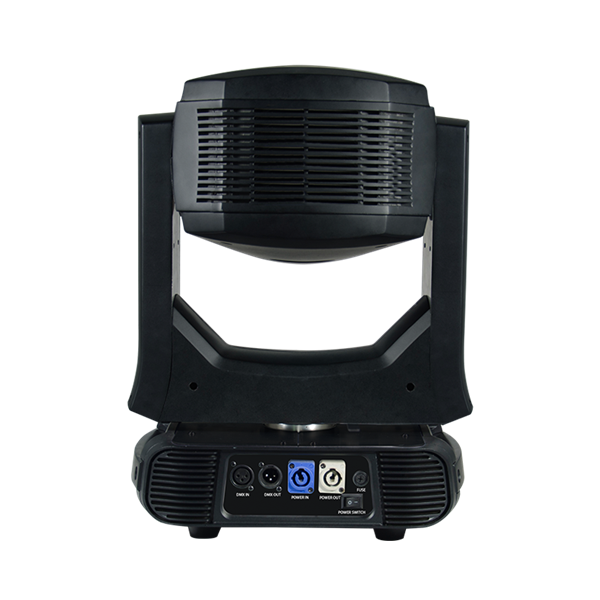

Model: SI-217 MAGICDOT 240F

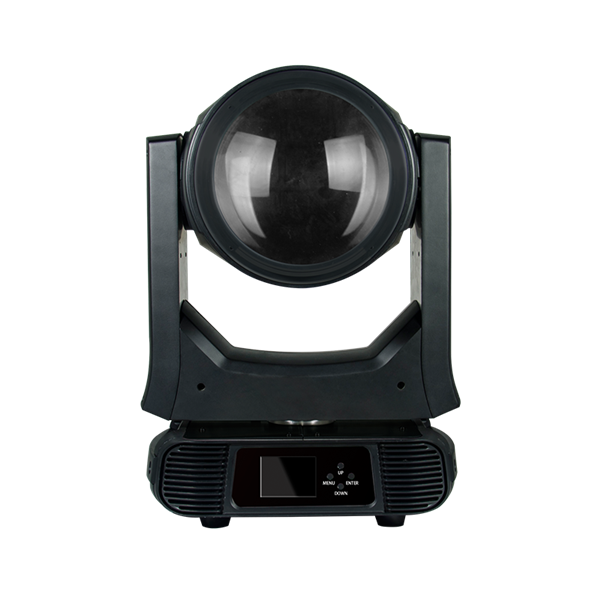

The MAGICDOT 240F is an innovative LED BEAM/WASH/EFFECT moving head that features a 3°-50° optical zoom system with a high power OSRAM 240W 4-in-1 LED (RGBW). The fixture applies light pipe technology with high resolution front glass lens to deliver solid beam (both soft edge with a frost filter and sharp edge) and even wash effect with endless color options. There is another unique feature, Flower Effect, that creates sharp multicoloured spikes of light, rotating in both directions at variable speed. Additionally, each SPOT in the flower is able to rotate in both directions which helps to bring much nicer effect to the users. It also features a wide angle 8-facet prism with bi-directional rotation capability producing the beam into a dynamic ray of eight narrow beams, creating another new visual effect to the show.

The fixture is designed with 5 dimming modes and 4 dimming curves. It provides variable speed shutter/strobe effect, internal programs and different kinds of pre-programmed macro effects to it’s users for easy operation. It also comes with incredibly fast and smooth pan/tilt movements, simple and complex DMX channel profiles.

The DOTZOOM 240F supports DMX, RDM (Remote Device Management), Art-Net protocol, Wireless Solution wireless system built-in.

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the MAGICDOT 240F achieves more than just a striking look. The head cover are locked with 4*1/4 turn fastening, easy for maintenance. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It provides friendly PAN/TILT locks for safety during transportation.

It’s fast and quiet operation LED moving head. The fixture is tuned with proper LED refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.


  • Light Source
  • Source: OSRAM SplitStar® S32 RGBW CON 240W LED
  • 10000lm (source), 4000lm(fixture)
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 20000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

  • Optics

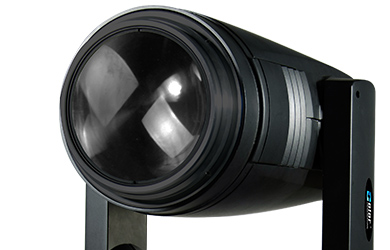

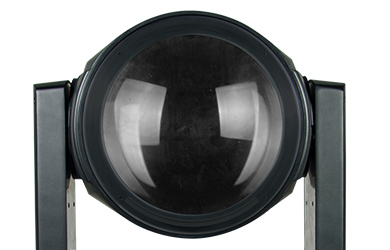

  • 168 mm High efficiency glass lens for greater performance
  • Optimized light pipe for higher LED efficiency
  • 3°-50°Smooth and quiet linear motorized zoom with fine control
  • 3°-35°Beam mode
  • 5°-50°Wash mode

  • Movement
  • PAN movement: 360°continuous rotation (8/16 bit)
  • PAN movement: 360°continuous rotation (8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Colors
  • Sophisticated 4 colors RGBW mixed
  • Big size strone beam effect
  • Even and soft light coverage with pure mixing
  • Virtual color wheel with preset colors
  • 2800K-3200K Tugsten lamp simulation effect
  • 2700K-8000K Linear color temperature adjustment
  • Color rainbow effect with speed control

  • Effect
  • Flower effect creating spectacular stunning effects in the air (clear image at 30°)
  • Each spot (square four color) in the FLOWER rotatable creating even nicer effect
  • 8-Facet linear prism with variable speed and direction
  • Prism indexable
  • Frost filter

  • Strobe Effect
  • 1-25T/sec high speed shutter/strobe effect with variable speed
  • Random strobe effect with variable speed
  • Preset pulse strobe effect

  • Dimming System
  • 0-100% Smooth linear LED dimming with fine control
  • 4 Dimming modes, standard/stage/TV/theatre
  • 4 Dimming curves, linear/square law/Inv. Square law/S curve
  • Control System
  • 18/23/31 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound control sensitivity adjustable
  • Multi preset internal programs
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET
  • Wireless Solution’s wireless receiver system built-in
  • Shielded input signal protection for stable signal without interference

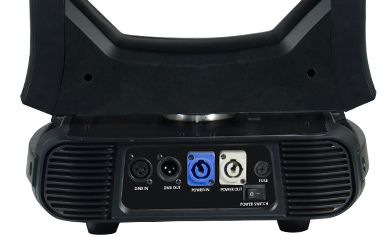

  • RJ45 etherCON IN/OUT
  • 3-Pin XLR connectors IN/OUT

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

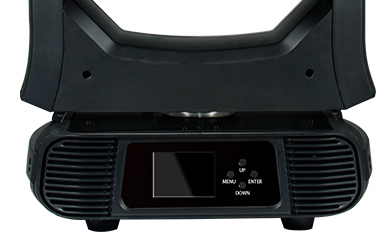

  • Display System
  • 2.4" TFT LCD display
  • English/Chinese menu
  • 4 control buttons
  • Battery back-up for menu preset
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON IN/OUT with swtich and fuse
    380W Power consumption
  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)
  • Friendly PAN/TILT locks for better fixture protection

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point
  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 18kg
  • G.W.: 21kg

  • Dimensions
  • Product Dimensions:215(D)*347(W)*612(H)mm
  • Packing Dimensions:415(D)*547(W)*812(H)mm

  • DMX Channels



  • Photometrics

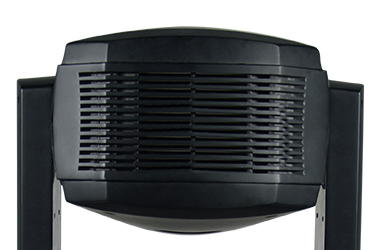

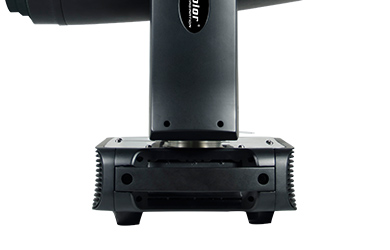

Details

  • f.jpg
  • a_72
  • d_52
  • b_53
  • c_51
  • e_29

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
