CRAZY 4

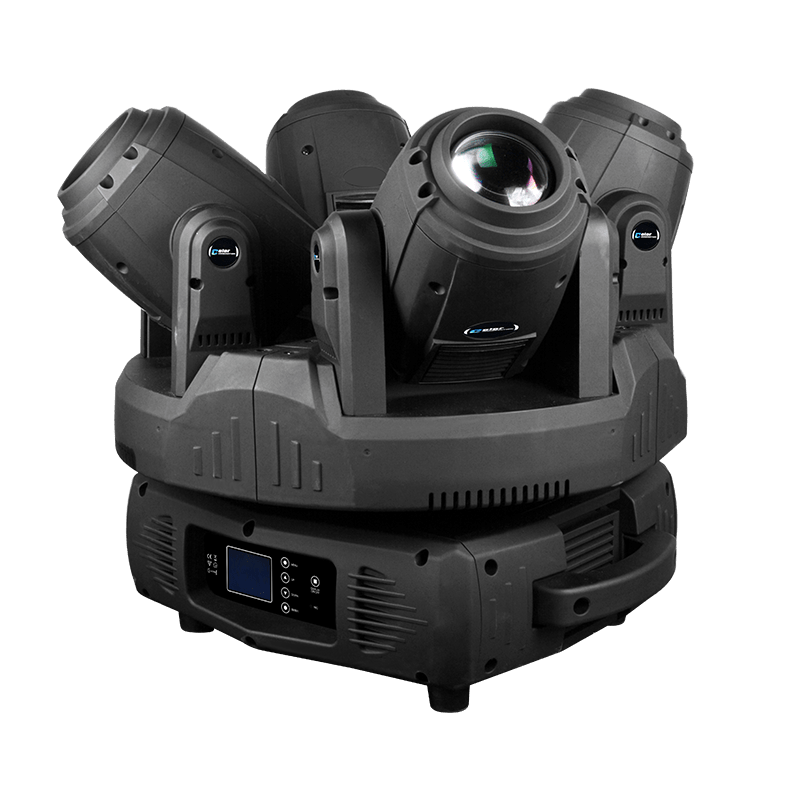

Model: SI-113 CRAZY 4

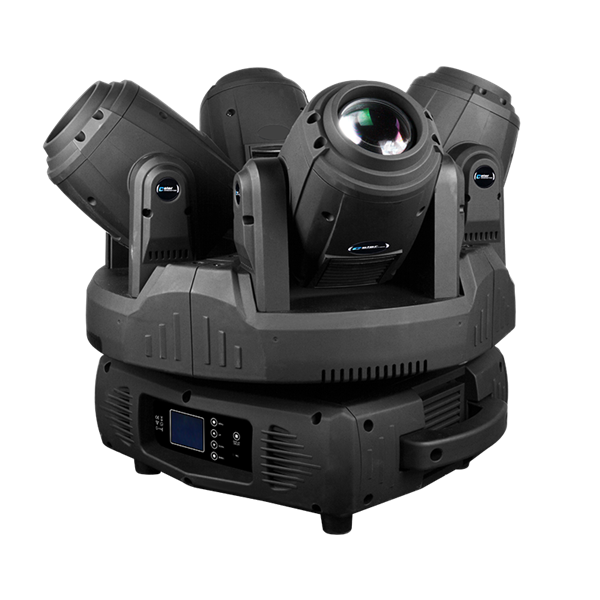

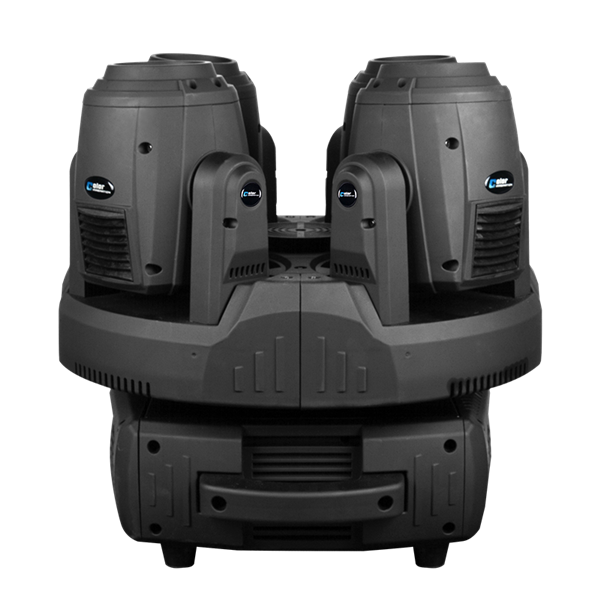

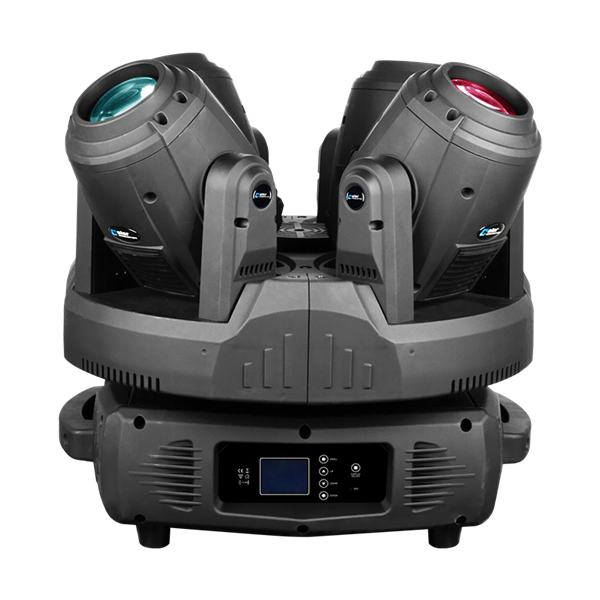

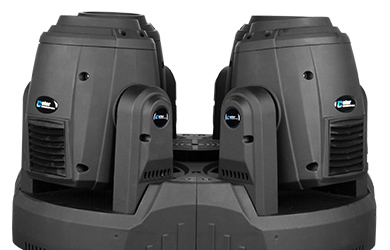

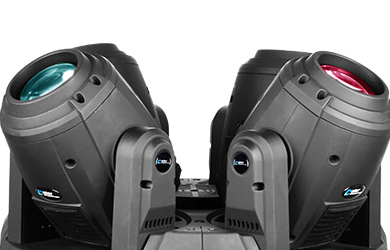

The CRAZY 4, where legend begins, integrates 4 individual compact BEAM moving heads (same functions) in an UFO shape revolver with fast and precise 360° continuous PAN movement. Each head comes with a PHILIPS 189W 5R lamp, independent TILT adjustment and high definition 3° optic lens. The fixtures offers a full complement of professional characteristics. It’s applicable for large scale live concerts, TV productions, clubs, etc.

4*PHILIPS 189W 5R lamp
2000 hours life span and low power consumption
8/16 bit smooth and precise resolution for PAN/TILT movement
360° continuous PAN and 180° TILT movement
PAN/TILT inversion available
Scan position memory, auto re-position after unexpected movement

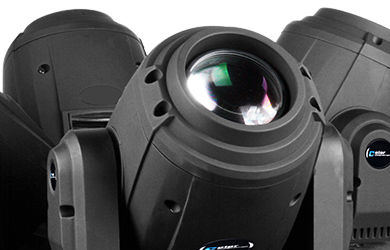

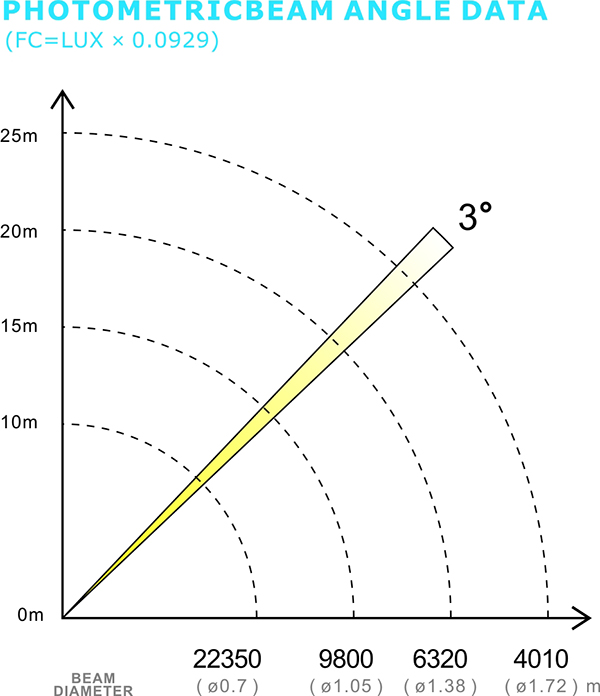

Specific high precision glass optic system with 3° projection angle
Improved optics and flat beam field

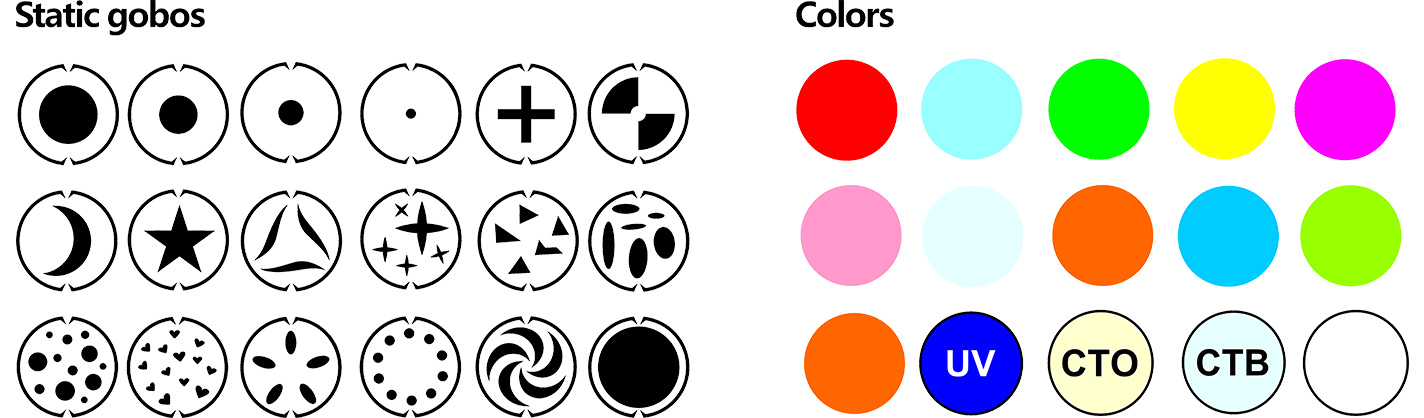

A static gobo wheel with 17 gobos plus open and gobo shake
A color wheel with 14 colors plus open
Variable direction rainbow effect with speed adjustable
2.5m to 30m linear electric focus
8-Facet prism with variable speed and direction
0-100% Smooth linear dimmer
1~20T/sec high speed shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
11/52 DMX channels USITT DMX-512 (vector mode included,
color time and gobo time controllable from fast to slow)
DMX512, master-slave, and sound activated controllable or auto operation
8 Built-in auto running programs
6 Built-in macro functions
DMX recorder and edit function integrated

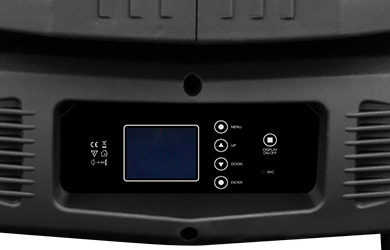

2.4" TFT LCD display (320*240pix)

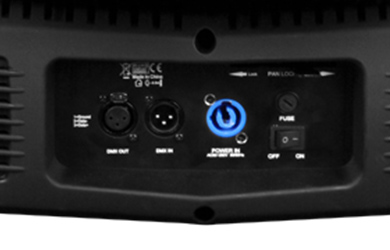

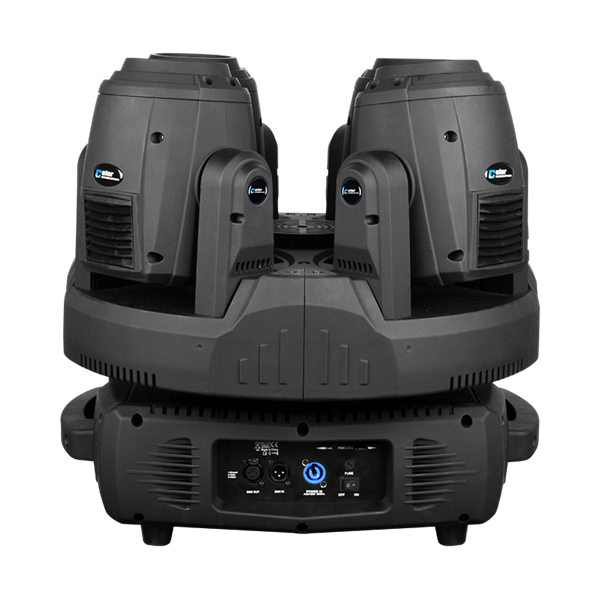

POWRECON connector IN
3-Pin XLR connectors IN/OUT
Low noise fan cooling system
Constant temperature readout and management function
-20-45°C max ambient temperature
IP20 protection rating

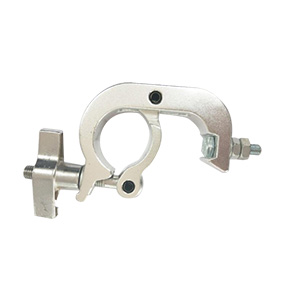

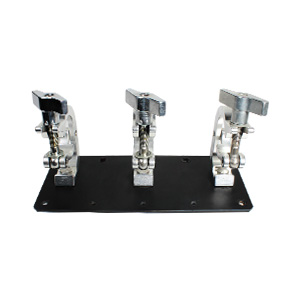

1 Set specially designed hanging system
2*Safety attachment points

Input Voltage:AC90-260V 50/60Hz
LED Quantities:4*PHILIPS 189W 5R lamp
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 11/52 DMX channels USITT DMX-512
Power Consumption: 1200W

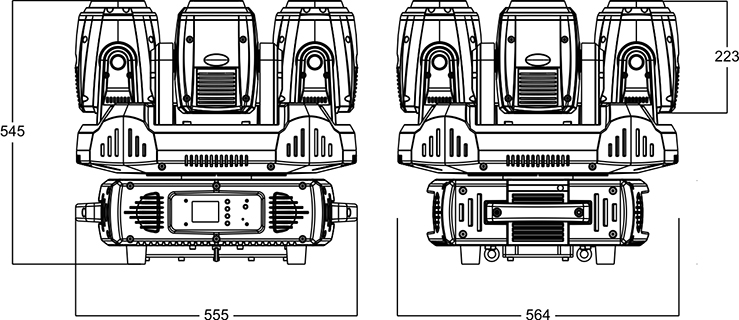

Dimensions:555(D)*564(W)*545(H)mm
Net Weight: 54kg

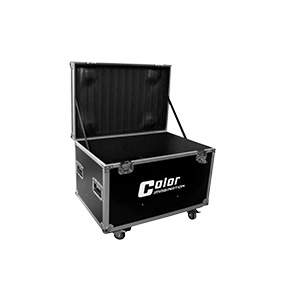

Flight Case Dimensions:620(D)*590(W)*860(H)mm
Flight Case Weight: 28KG
Gross Weight: 82kg (with case)
