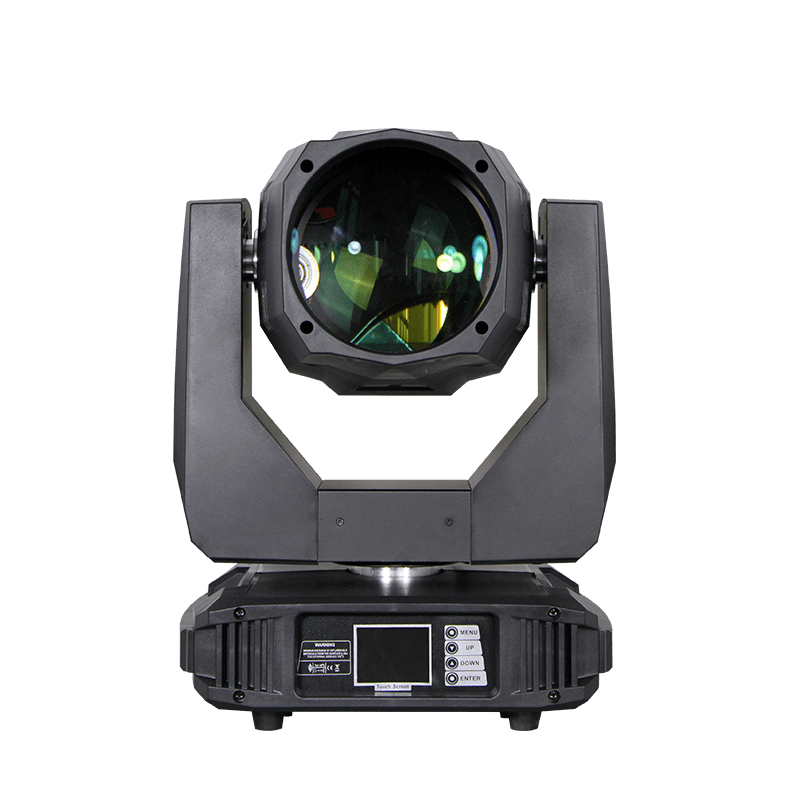

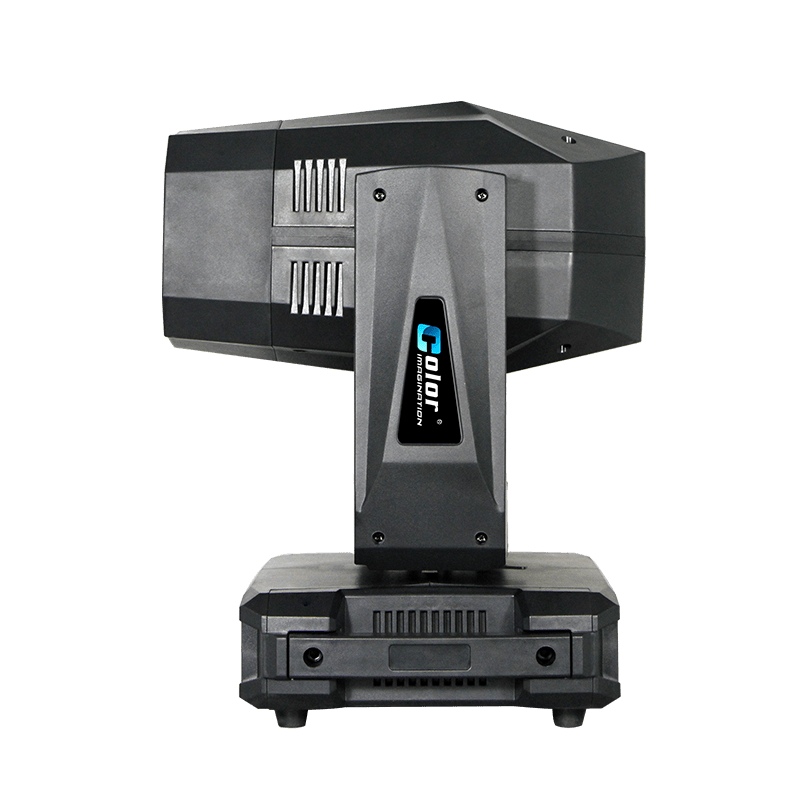

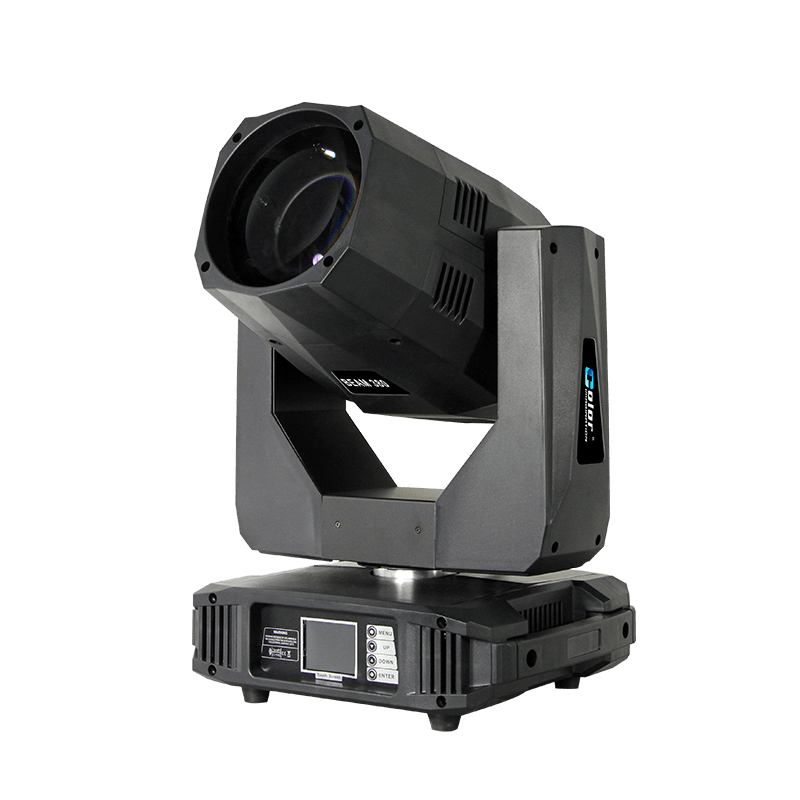

Model: SI-244 PROBEAM 380

The Color Imagination PROBEAM 380 is a hybrid entertainment moving head light that integrates BEAM+WASH in one fixture. It features a new and reliable OSRAM SIRIUS HRI 371W lamp with revolutionary technology. The beam angle is 2°. The fixture offers a short arc and compact design with a bright, even field of light, equating to a highly saturated color palette. The lamp equips with the reflector built-in, providing perfect lamp alignment. It is a fast and quiet moving head with a sharp parallel beam (perfectly defined edges) and even wash. This head offers a full complement of professional characteristics, including static gobo wheel, color wheel, 7-color effect wheel, 3 kinds of prism effect, variable frost filter, motorized linear focus, variable speed shutter/strobe; and mechanical dimmer, full color 180° reversible TFT display with 4 control buttons, etc. The fixture supports DMX, RDM (Remote Device Management)

It’s fast and quiet operation moving head. The fixture is tuned with proper refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.

  • A new and reliable OSRAM SIRIUS HRI 371W 7500K lamp included
  • Electronic ballast
  • 1500 Hours lamp life span
  • No need for adjustment of reflector or lamp

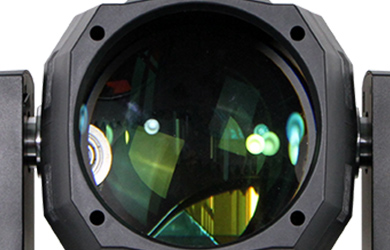

  • High resolution anti-reflection glass lenses
  • 540°PAN and 270° TILT movement
  • 3-Phase PAN/TILT motors
  • Automatic Pan / Tilt position correction
  • 8/16-Bit smooth and precise resolution for PAN/TILT movement
  • Fast, quiet and accurate Pan / Tilt positioning
  • Friendly PAN/TILT locks for better fixture protection
  • 1 Static gobo wheel with 14 gobos plus open and gobo shaking function
  • 1 Color wheel with 14 dichroic colors plus open(Half color mode available)
  • Variable direction rainbow effect with speed adjustable
  • 1 8+8+8-facet circular prism with speed adjustable and variable direction
  • 1 16-facet circular prism with speed adjustable and variable direction
  • Prisms morphing effect
  • Variable Frost Filter (Hybrid effect for Wash)
  • Linear mechanical dimming system
  • Mechanical shutter and variable speed strobe effect
  • Preset variable/random strobe and dimming pulse effects
  • Motor driven focus from near to far
  • 2°Beam angle
  • 16/20 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto operation
  • DMX recorder and edit function integrated
  • Sound control with sensitivity adjustment
  • RDM available (Remote Device Management)
  • Art-NET control optional
  • Wireless DMX receiver optional

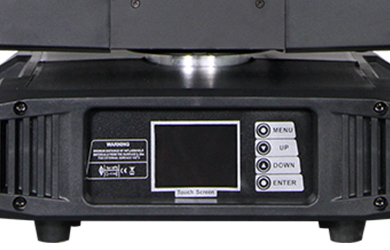

  • 2.4" TFT LCD display with 4 control buttons
  • 180°Reversible for LCD display
  • LCD display switch-off automatically after 60 seconds
  • DMX signal monitoring indicator available
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over heat protection management

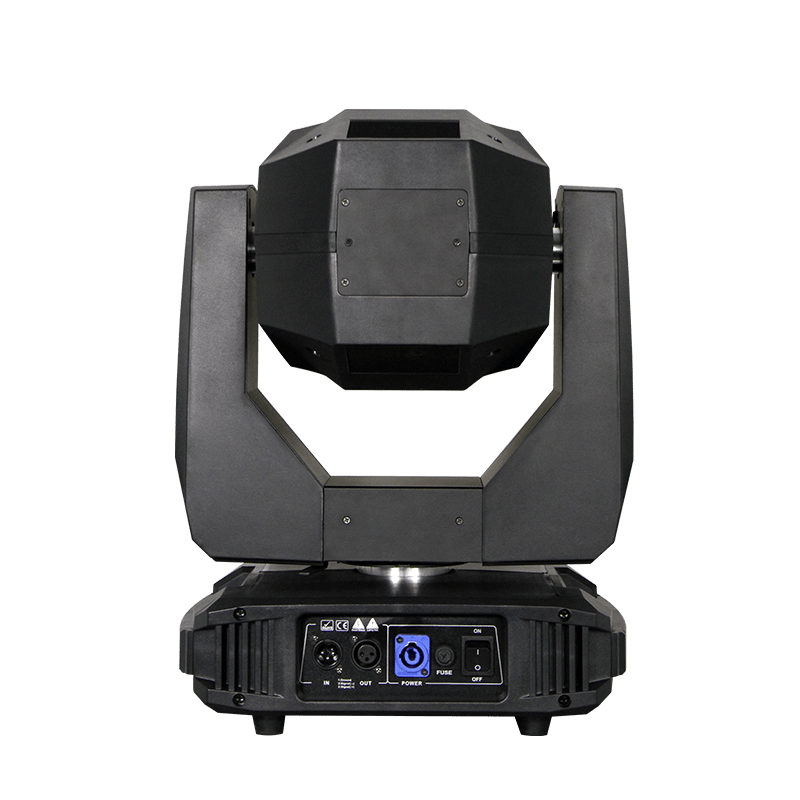

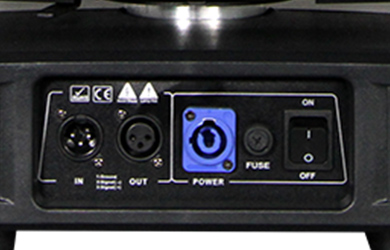

  • Powercon IN/ OUT with power switch and fuse
  • 3-Pin XLR DMX connectors IN/OUT
  • IP20 protection rating
  • -35℃ to 45℃ ambient temperature
  • 2*1/4 turn fastening Omega Clamps
  • 1*Safety attachment point

Input Voltage: AC100-240V 50/60Hz
Light Source: 1* OSRAM SIRIUS HRI 371W lamp
Control Signal: RDM, DMX512, master-slave and sound activated or auto operation
Control Channel: 16/20 DMX channels
Power Consumption: 900W
Dimensions:400(D)*390(W)*460(H)mm
Packing Dimensions:480(D)*480(W)*590(H)mm
Net Weight: 18.20kg
Gross Weight: 21.00kg











  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

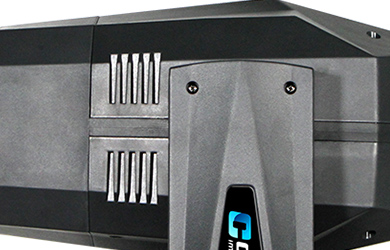

  • SI-244 (1)
  • SI-244 (2)
  • SI-244 (3)
  • SI-244 (4)
  • SI-244 (5)
  • SI-244 (6)

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
