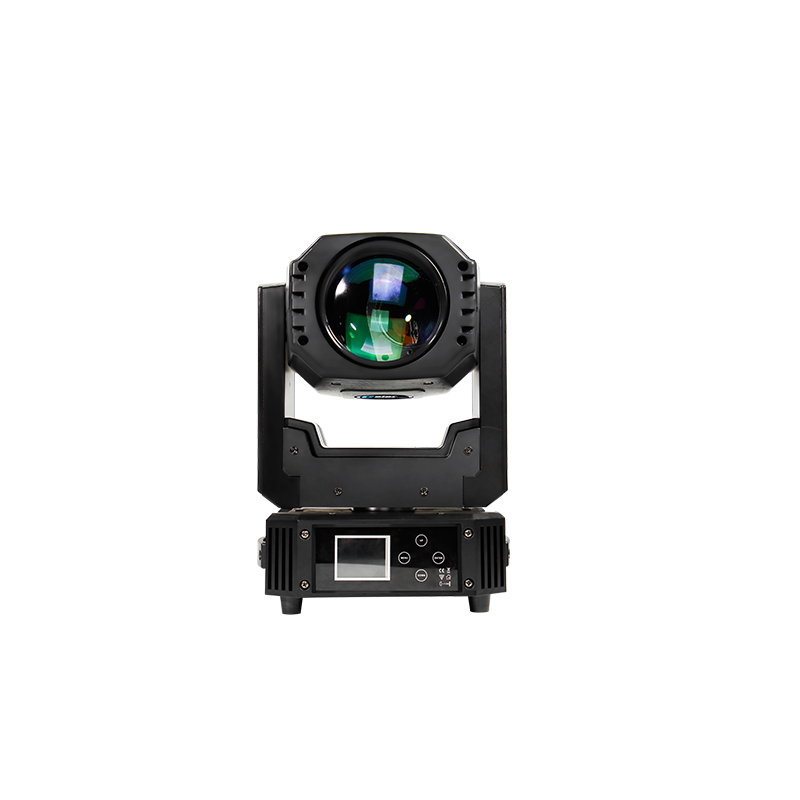

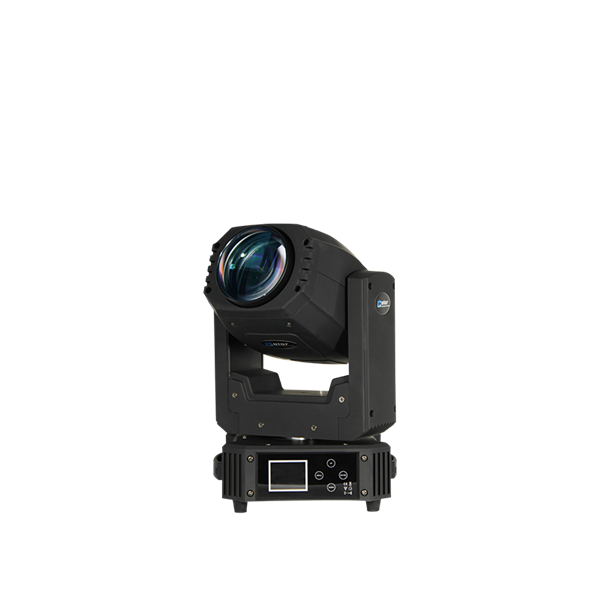

Model: SI-164B MINIBEAM 150PRO

The MINIBEAM 150PRO is a fully new design by Color Imagination, aiming to bring a very compact and lightweight housing moving head beam, as always, with very high light output and even coverage field, to the market. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, 3-kinds of prism effects, frost filter, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer.

The lamp equips with the reflector built-in, providing perfect lamp alignment. MINIBEAM 150PRO features ultra sharp beam effect with low consumption realized by the powerful OSRAM SIRIUS HRI 132W lamp (6000H life span).

It’s applicable for small-medium scale live concerts, TV productions, road shows, clubs, etc.


  • Light Source
  • Source: OSRAM SIRIUS HRI 100W lamp
  • Color Temperature: 9300K
  • 5150lm (source), 3100lm(fixture)
  • CRI: ≥65
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 6000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

  • Optics
  • A set of high resolution and precise optics
  • Anti-reflection 96mm front lens
  • 3.2°Smooth and quiet linear motorized zoom
  • 2.5M-15M electric focus

  • Movement
  • PAN movement: 540°(8/16 bit)
  • PAN movement: 260°(8/16 bit)
  • Fast, quiet, smooth and precise 2-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible

  • Color System
  • 1 Color wheel with 12 dichroic colors plus open (half-way color mode available)
  • Variable direction rainbow effect with speed adjustable

  • Gobo System
  • 1 Static gobo wheel with 11 gobos plus open

  • Prism System
  • 16-Facet prism with variable speed and direction
  • 8+16-Facet linear prism with variable speed and direction
  • Prism morphing effect

  • Strobe Effect
  • 20T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe effect with variable speed
  • Dimming System
  • 0-100% Smooth linear mechanichal dimming

  • Control System
  • 13/16/16 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound sensitivity adjustablet
  • Wireless receiver system built-in (optional)
  • Shielded input signal protection for stable signal without interference
  • 3-Pin XLR connectors IN/OUT

  • Wash System
  • Dual flag frost filer system (Hybrid effect for wash)
  • Even and soft coverage

  • Display System
  • 2.4" High resolution TFT LCD display
  • 4 Light touch control buttons
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic ballast: OSRAM PT SIRIUS 100W-Unishape
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON connectors IN/OUT
  • 200W Power consumption
  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)

  • Installation
  • 1*1/4 turn fastening Omega Clamps
  • 1*Safety attachment point
  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 9.5kg
  • G.W.: 10.7kg

  • Dimensions
  • Product Dimensions:170(D)*226(W)*362(H)mm
  • Packing Dimensions:295(D)*280(W)*385(H)mm

Input Voltage:AC90-260V 50/60Hz
Lamp Quantities:1* A OSRAM SIRIUS 132W lamp
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel:13/14/16 DMX channels USITT DMX-512
Power Consumption: 210W
Dimensions:170(D)*226(W)*362(H)mm
Packing Dimensions:280(D)*295(W)*385(H)mm
Net Weight:7.82kg
Gross Weight: 9.58kg

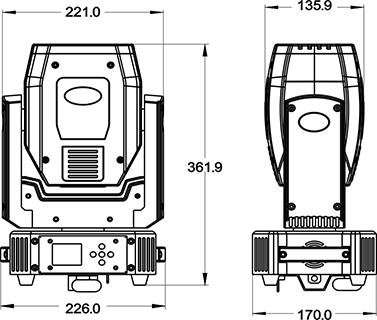

SIZE_119

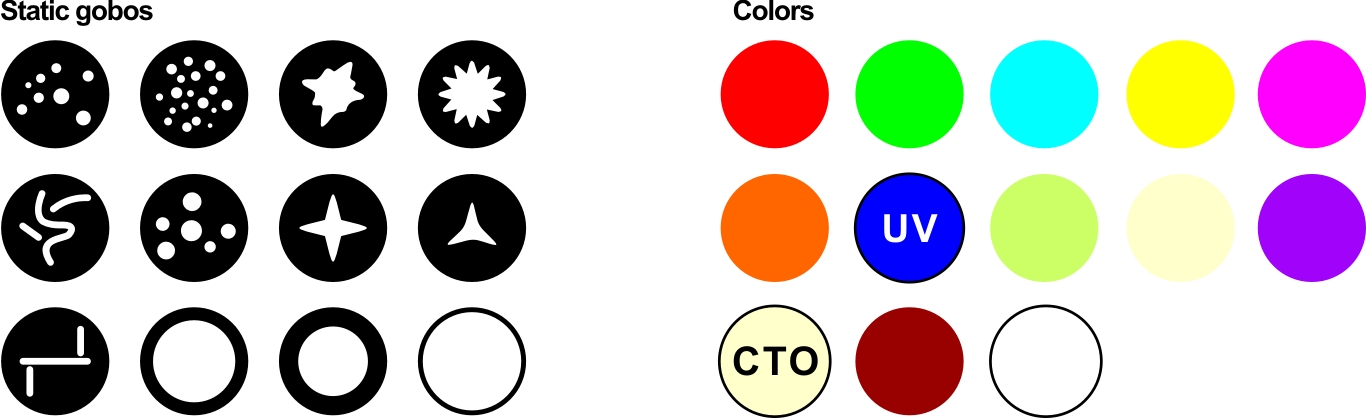

GOBOS-COLORS_35

BDetails

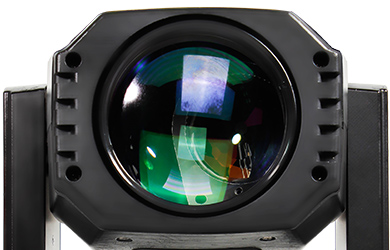

  • a.jpg

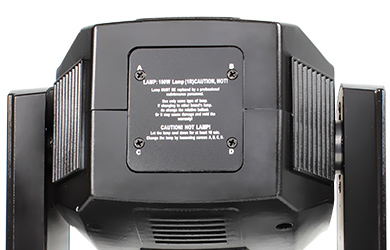

  • d_40

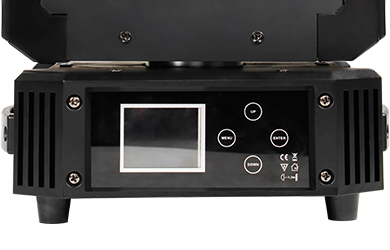

  • b_41

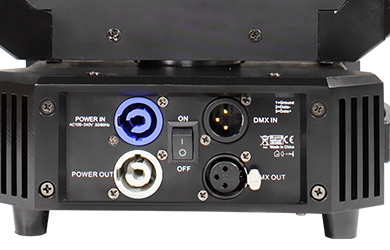

  • c_39

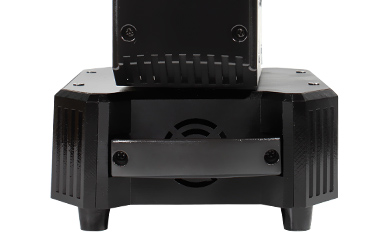

  • e_22

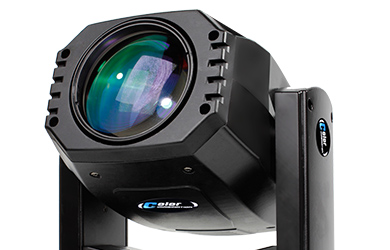

  • f_22

Effect Pictures

  • a.jpg
  • b_133
  • c_132
  • d_79
  • e_36
  • f_38
  • g_1
  • h_3
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 1PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
