Model: SI-209 QSPOT 150

Smaller---very compact in size and weight
Better---very high in output

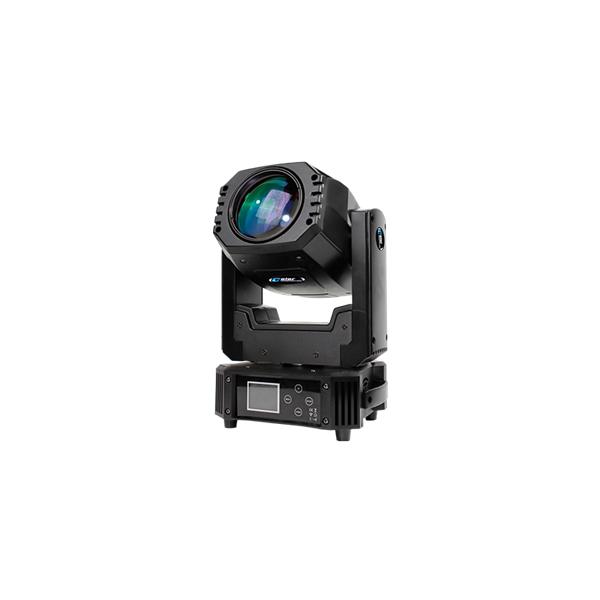

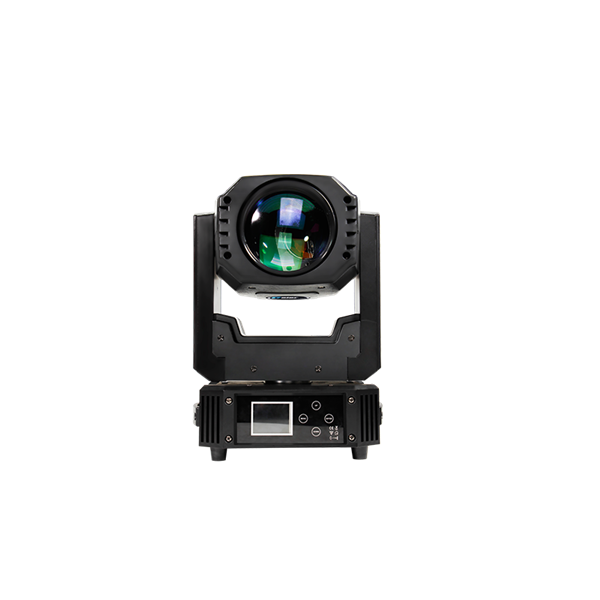

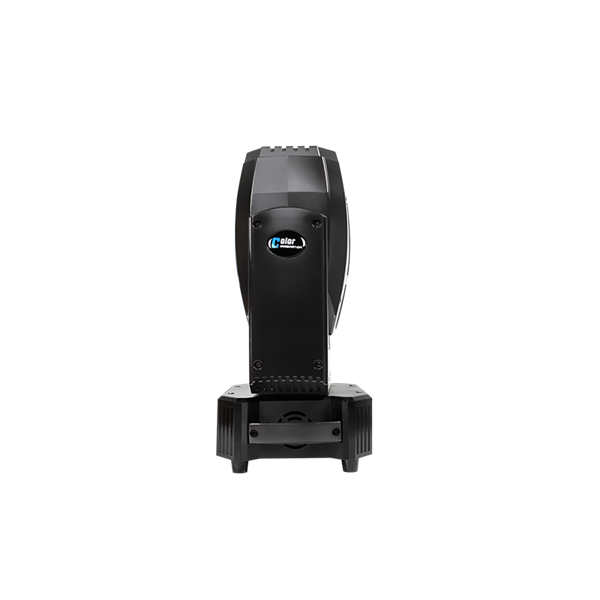

The moving head spot QSPOT 150 features a 7500K 150W LED with high intensity and efficiency. It produces very high light output, through a specific 15° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

The fixture is applicable for small-medium scale live concerts, DJ Shows, schools, clubs, weddings, etc.


  • Light Source
  • Source: 150W White LED engine
  • Color Temperature: 7500K
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

  • Optics
  • A set of high resolution and precise optics
  • 15°Projection angle
  • 2.5M-15M Linear electric focus

  • Movement
  • PAN movement: 540°(8/16 bit)
  • PAN movement: 260°(8/16 bit)
  • Fast, quiet, smooth and precise 2-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement

  • Color System
  • 1 Color wheel with 7 dichroic colors plus open (half color mode available)
  • Variable direction rainbow effect with speed adjustable

  • Gobo System
  • 1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and
  • rotatable clockwise or anticlockwise
  • Gobo indexing
  • Gobo size 22mm (external)/16mm (inner)
  • 1 Static gobo wheel with 7 gobos plus open with dithering effect
  • Gobo overlay (gobo morphing)

  • Prism System
    3-Facet prism with variable speed and direction
    Prism indexing
  • Strobe Effect
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect

  • Dimming System
  • 0-100% Smooth linear LED dimming

  • Control System
  • 12/13/15 DMX channels USITT DMX-512
  • DMX512, master-slave, Sound activated or auto operation
  • DMX recorder and edit function integrated
  • Shielded input signal protection for stable signal without interference
  • 3-Pin XLR DMX connectors IN/OUT

  • Preset Program
  • Auto programs

  • Display System
  • 2.0" TFT LCD display
  • 4 Light touch control buttons
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds
  • DMX signal monitoring indicator

  • Cooling System
  • Advanced cooling system integrated with aluminum
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz

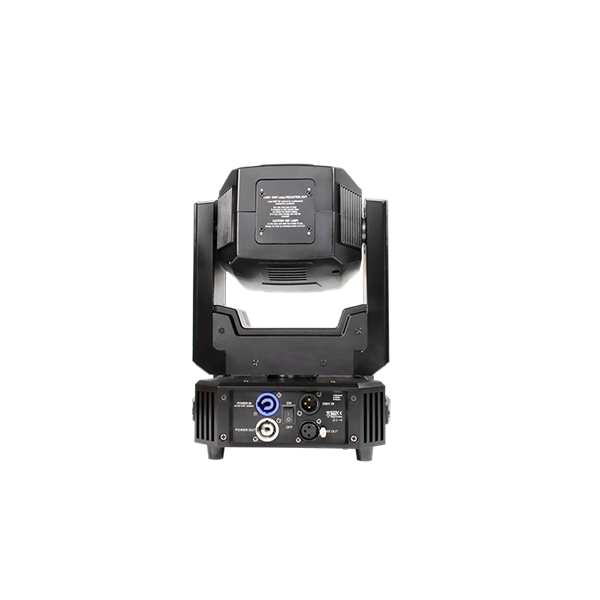

  • PowerCON IN/ OUT with power switch and fuse
  • 225W Power consumption

  • Housing
  • High intension moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)

  • Installation
  • 1*1/4 turn fastening Omega Clamps
  • 1*Safety attachment point

  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 8.2kg
  • G.W.: 9.7kg

  • Dimensions

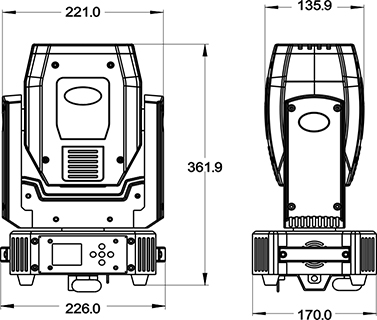

  • Product Dimensions:170(D)*226(W)*362(H)mm
  • Packing Dimensions: 280(D)*295(W)*385(H)mm

Input Voltage:AC100-240V 50/60Hz
LED Quantities:1*150W white LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 11/13/16 DMX channels USITT DMX-512
Power Consumption: 215W
Dimensions:170(D)*226(W)*362(H)mm
Packing Dimensions:280(D)*295(W)*385(H)mm
Net Weight: 8.2kg
Gross Weight: 9.7kg


Details

  • f.jpg
  • a_72
  • d_52
  • b_53
  • c_51
  • e_29

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 1PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
