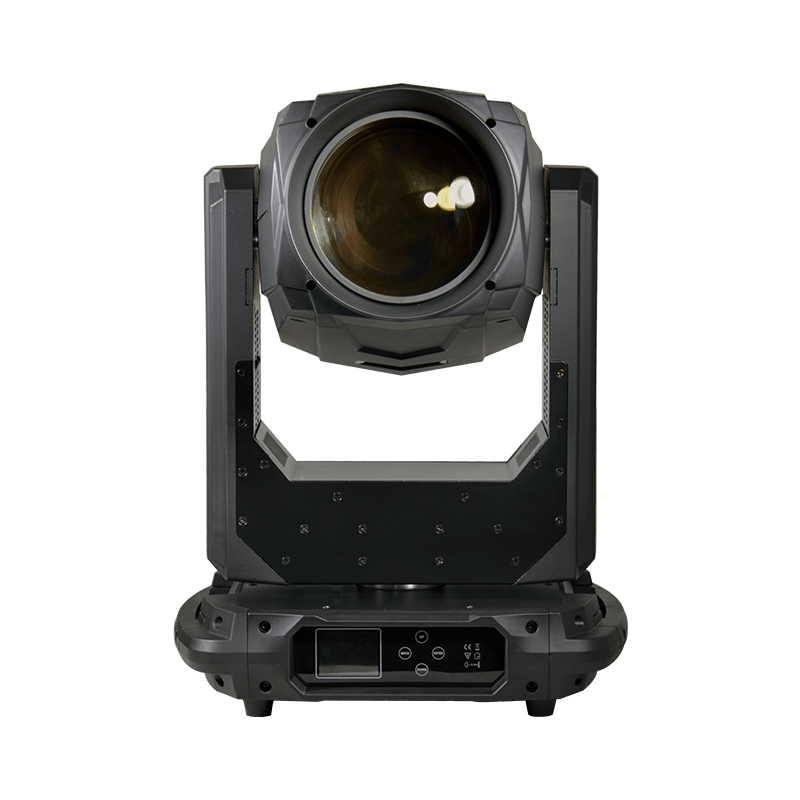

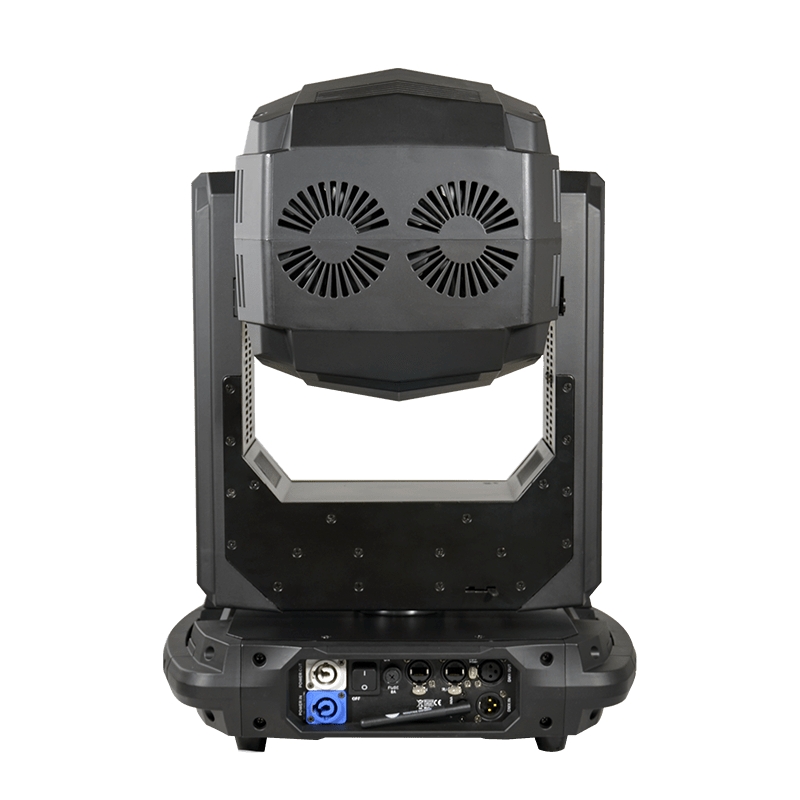

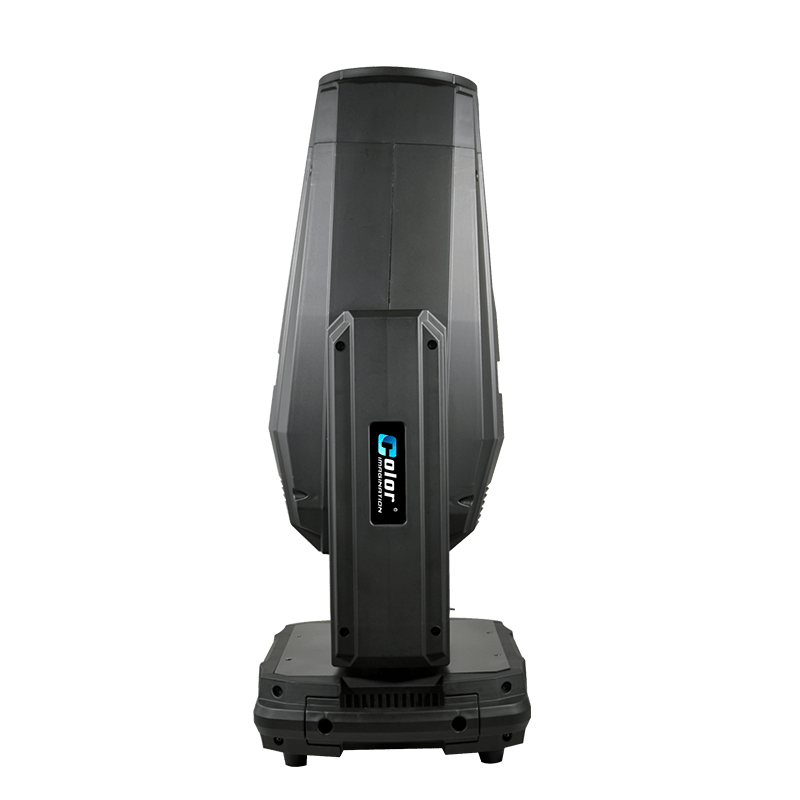

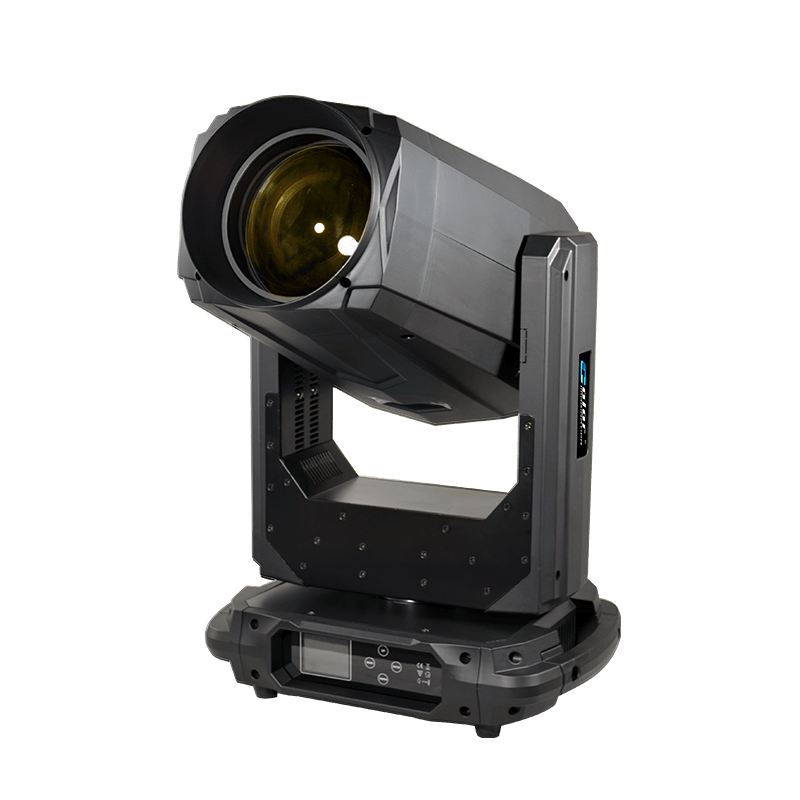

Model: SI-174 PROSPOT 500CF

PROFILE+SPOT+BEAM+WASH, CMY+CTO, FRAMING+IRIS, ZOOM (3°-50°)



The PROSPOT 500CF is a new generation professional and intelligent LED moving head spot designed with a full CMY color mixing system plus CTO color correction, 8-motor dirven 4-blade framing shutter system with continuous bi-directional rotation, smooth and linear zoom from 3°-50°, fast and smooth linear IRIS system. The SPOT features a new high intensity and efficiency cool white 420W LED engine (8000K) delivering a total of 13000 lumens for ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, a rotating gobo wheel with 7 rotating and interchangeable glass gobos, a static gobo wheel with 6 gobos, a color wheel with 7 dichroic colors, 3-facet rotating prism/linear rotating prism, frost filter, linear electronic focus, linear dimmer, variable speed shutter/strobe, full color 180°reversible TFT display with 4 control buttons and battery backup for display power, etc.



The PROSPOT 500CF supports DMX, RDM (Remote Device Management), Art-Net protocol, Wireless Solution wireless system built-in.



The fixture’s exterior housing is beautifully balanced basing on a jewel-like design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the PROSPOT 500CF achieves more than just a striking look. It provides friendly PAN/TILT locks for safety during transportation.



It’s fast and quiet operation LED moving head spot. The fixture is tuned with proper LED refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.






  • Light Source
  • Source: 420W White LED engine
  • Color Temperature: 8000K (customizable)
  • 20000lm (source), 13000lm(fixture)
  • CRI: ≥70(customizable)
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 20000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

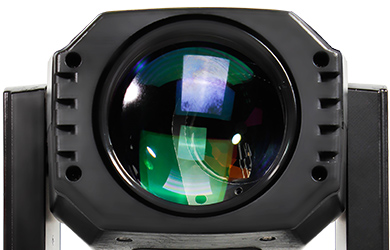

  • Optics
  • A set of high resolution and precise optics

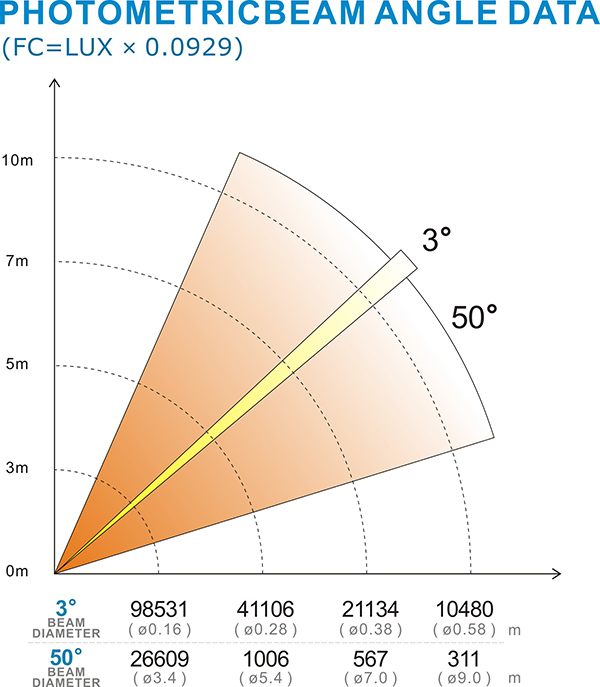

  • 3°-50°Smooth and quiet linear motorized zoom
  • Zoom reversible
  • 2.5M-15M electric focus

  • Movement
  • PAN movement: 540°/630°/ 360°optional (8/16 bit)
  • PAN movement: 270°/180°/90°optional (8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase motors
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT time controllable
  • PAN/TILT reversible and swap

  • Framing System
  • 8-Motor driven 4-blade framing shutter system
  • 90°bi-directional framing rotation
  • Fast, smooth and quiet framing and rotation
  • Smooth, flexible blade movements at variable speed to create different shapes
  • Smooth and quiet linear motorized Iris
  • Iris reversible

  • Color System
  • Full CMY color mixing system with linear CTO color correction
  • 1 Color wheel with 7 dichroic colors plus open (half color mode available)
  • Variable direction rainbow effect with speed adjustable
  • Color time controllable

  • Gobo System
  • 1 Rotating gobo wheel with 7 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • Gobo indexing available
  • Gobo size 25mm (external)/21mm (inner)
  • 1 Static gobo wheel with 6 gobos plus open(1 gobo reducer and 1 animation gobo)
  • Gobo overlay (gobo morphing)
  • Gobo time controllable

  • Prism System
  • 3-Facet prism with variable speed and direction
  • 5-Facet linear prism with variable speed and direction

  • Strobe Effect
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect

  • Dimming System
  • 0-100% Smooth linear LED dimming
  • 4 Dimming curve modes, linear/square law/Inv square law/S-curve
  • 2 Dimming speed, smooth/fast
  • Dimming reversible

  • Control System
  • 37/40/63 DMX channels USITT DMX-512
  • DMX512, master-slave, or auto operation
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET available
  • Wireless Solution’s wireless receiver system built-in
  • Shielded input signal protection for stable signal without interference
  • RJ45 etherCON IN/OUT
  • 3-Pin XLR DMX connectors IN/OUT

  • Wash System
  • Linear frost filter (Hybrid effect for wash)
  • Even and soft coverage

  • Preset Program
  • CMY macros: static/dynamic
  • Framing macros: static/dynamic
  • Prism/gobo macros
  • Auto programs

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

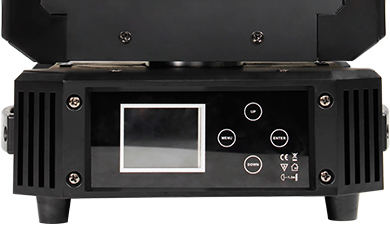

  • Display System
  • 2.4" TFT LCD display (320*240pix)
  • 4 control buttons
  • Battery back-up for menu preset
  • 180°Reversible for LCD display
  • Display OFF in 60 seconds
  • DMX signal monitoring indicator

  • Cooling System
  • Advanced cooling system integrated aluminum and copper with liquid
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz

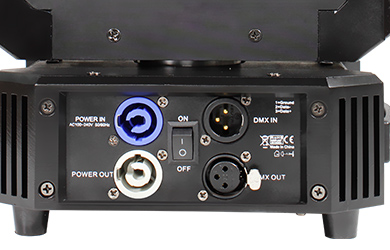

  • PowerCON IN/ OUT with power switch and fuse
  • 650W Power consumption

  • Housing
  • High intension moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)
  • Friendly PAN/TILT locks for better fixture protection

  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point

  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 28kg
  • G.W.: 33kg

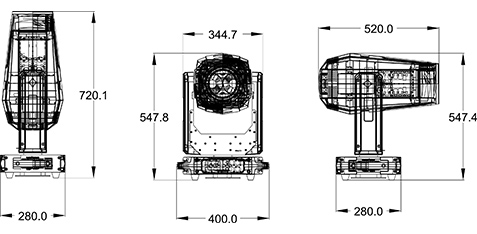

  • Dimensions
  • Product Dimensions:280(D)*400(W)*720.1(H)mm
  • Packing Dimensions:480(D)*600(W)*787(H)mm
SI-173 174 174 SIZE_1

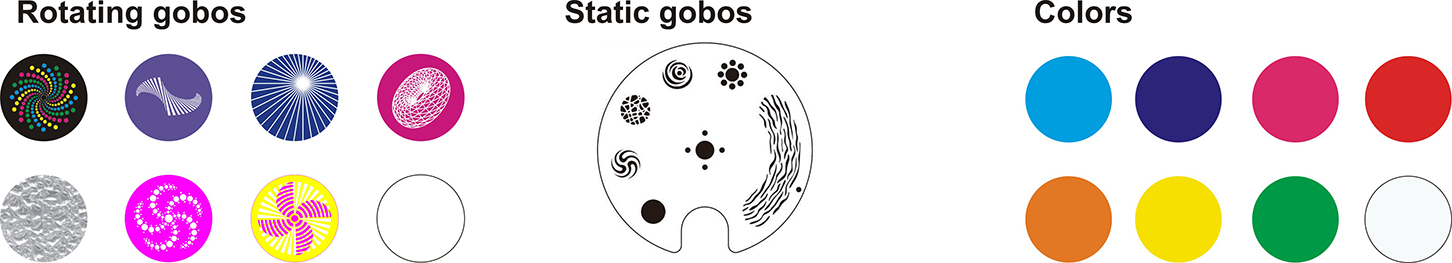

SI-174 图案

Details

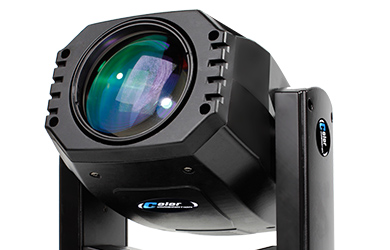

  • f.jpg
  • a_72
  • d_52
  • b_53
  • c_51
  • e_29

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS


Omega

STANDARD
code:
QTY: 1PCS

3_1

Safety Cable

STANDARD
code:
QTY: 1PCS

2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
