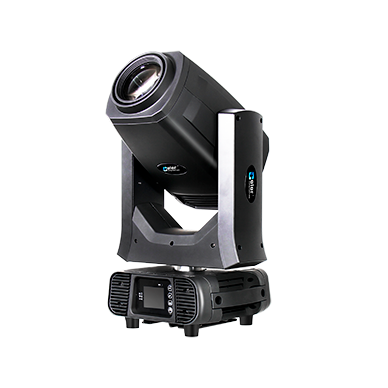

• LEDSPOT 200Z LEDSPOT 200Z

Model: SI-280 LEDSPOT 200Z

The LEDSPOT 200Z is a new generation professional and intelligent LED moving head spot designed with smooth and linear zoom from 3°-40°. The SPOT features a new high intensity and efficiency cool white 200W LED engine (7400K) delivering a total of 12000 lumens for ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, a rotating gobo wheel with 7 rotating and interchangeable glass gobos, a static gobo wheel with 9 gobos, a color wheel with 7 dichroic colors, 3-facet rotating prism, frost filter, linear electronic focus, multi dimming curves, variable speed shutter/strobe, full color 180° reversible TFT display with 4 control buttons, etc.

The LEDSPOT 200Z supports DMX, RDM (Remote Device Management), Art-Net protocol (optional), Wireless Solution wireless system built-in (optional).

The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the LEDSPOT 200Z achieves more than just a striking look. It provides friendly PAN/TILT locks for safety during transportation.

It’s fast and quiet operation LED moving head. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.

  • Light Source
  • Source: 200W White LED engine
  • Color Temperature: 7400K (customizable)
  • 18000lm (source), 12000lm(fixture)
  • CRI: ≥75(customizable)
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.



  • Optics
  • A set of high resolution and precise optics
  • 3°-40°Smooth and quiet linear motorized zoom
  • Smooth and precise linear focus
  • Fine control for zoom and focus



  • Movement
  • PAN movement: 540°(8/16 bit))
  • PAN movement: 270°(8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase otors
  • Magnet encoding wheel integrated with motor
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible



  • Color System
  • 1 Color wheel with 10 dichroic colors plus open (half color mode available)
  • Variable direction rainbow effect with speed adjustable
  • Fine control for color wheel



  • Gobo System
  • 1 Rotating gobo wheel with 7 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • Gobo indexing available
  • Gobo size 20.5mm (external)/18mm (inner)
  • 1 Static gobo wheel with 9 gobos plus open(1 gobo reducer and 1 animation gobo)
  • Gobo overlay (gobo morphing)
  • Fine control for rotating and static gobo wheel



  • Prism System
  • 4-Facet prism with variable speed and direction
  • Prism indexing
  • Fine control for prism
  •
  • Strobe Effect
  • 25T/sec high speed shutter/strobe effect with variable speed
  • Preset variable/random strobe effect with variable speed



  • Dimming System
  • 0-100% Smooth linear LED dimming
  • 4 Dimming curve modes, linear/square law/Inv square law/S-curve
  • 2 Dimming speed, smooth/fast/default
  • Fine control for dimming



  • Control System
  • 15/24/28 DMX channels USITT DMX-512
  • DMX512, master-slave, or auto operation
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET (optional)
  • Wireless Solution’s wireless receiver system built-in (optional)
  • Shielded input signal protection for stable signal without interference
  • RJ45 etherCON IN/OUT (optional as Art-NET)
  • 3-Pin XLR DMX connectors IN/OUT
  • Wash System
  • Linear frost filter (Hybrid effect for wash)
  • Even and soft coverage
  • Fine control for frost filter



  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain



  • Display System
  • 2.4" TFT LCD display
  • 4 Control buttons
  • 180°Reversible for LCD display
  • Display OFF
  • DMX signal monitoring indicator



  • Cooling System
  • Advanced noise-free cooling system integrated aluminum and copper with liquid
  • Constant temperature readout and management function
  • Over temperature protection management

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON IN/ OUT with power switch and fuse
  • 285W Power consumption



  • Housing
  • High intension moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black (white optional)
  • Friendly PAN/TILT locks for better fixture protection



  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point



  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating



  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)



  • Weight
  • N.W.: 12.5kg
  • G.W.: 14.9kg



  • Dimensions
  • Product Dimensions: 215(D)*301(W)*457(H)mm
  • Packing Dimensions: 390(D)*640(W)*320(H)mm
