Model: SI-319 PROBEAM 250

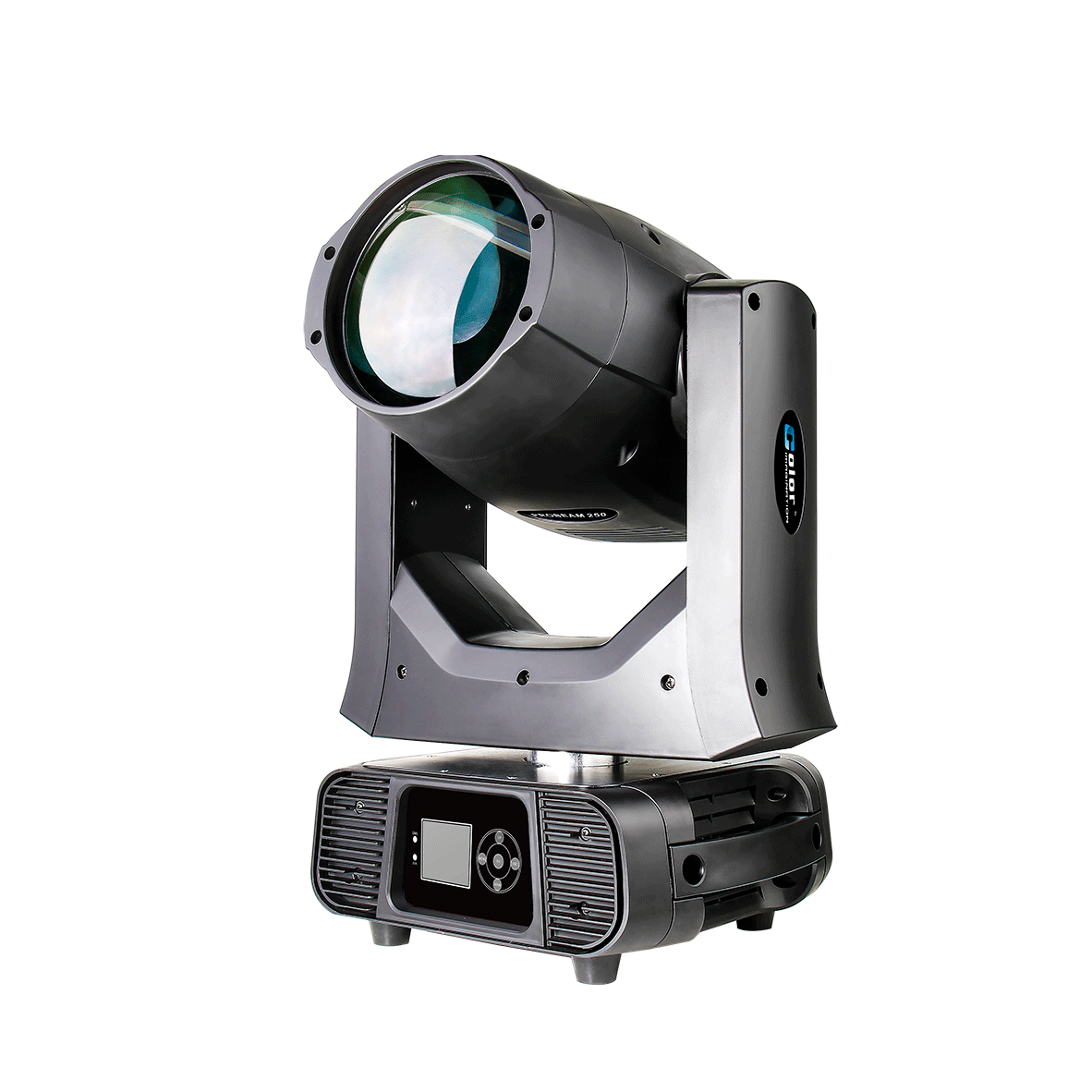

The PROBEAM 250 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features a PHILIPS 250W Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, two prisms, 7-color effect wheel, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable, etc. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the PROBEAM 250 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

  • Light Source
  • Source: PHILIPS MSD Silver 250W lamp
  • Color Temperature: 7800 K
  • 11000lm (source), 6600lm(fixture)
  • CRI: ≥80
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 1500H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.



  • Optics
  • A set of high resolution and precise optics
  • Anti-reflection 140mm front lens
  • 2°Beam angle
  • 330000lux@10m
  • Smooth and precise linear focus



  • Movement
  • PAN movement: 540°(8/16 bit))
  • PAN movement: 270°(8/16 bit)
  • Fast, quiet, smooth and precise 3-Phase otors
  • Magnet encoding wheel integrated with motor
  • Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
  • Scan position memory, auto reposition after unexpected movement
  • PAN/TILT reversible



  • Color System
  • 1 Color wheel with 14 dichroic colors plus open (half-way color mode available)
  • Variable direction rainbow effect with speed adjustable
  • 7-Color effect wheel with variable direction with speed adjustable
  • Color time controllable



  • Gobo System
  • 1 Static gobo wheel with 17 gobos plus open
  • Gobo time controllable



  • Prism System
  • 8-Facet prism with variable speed and direction
  • 8+16-Facet prism with variable speed and direction
  • Prism morphing effect
  • Strobe Effect
  • 20T/sec high speed shutter/strobe effect with variable speed



  • Dimming System
  • Smooth dual-flag linear mechanichal dimming



  • Control System
  • 18/22 DMX channels USITT DMX-512
  • DMX512, master-slave, sound activated or auto operation
  • Sound sensitivity adjustable
  • RDM available (Remote Device Management)
  • Shielded input signal protection for stable signal without interference
  • 3-Pin XLR connectors IN/OUT



  • Wash System
  • Linear frost filter (Hybrid effect for wash)
  • Even and soft coverage



  • Preset Program
  • Auto programs



  • Display System
  • 1.8" High resolution TFT LCD display
  • 5 Control buttons
  • 180°Reversible for LCD display
  • Display OFF



  • Cooling System
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over temperature protection management

  • Power Supply
  • Electronic ballast: SVD P250
  • Electronic power supply
  • AC100-240V 50/60Hz
  • PowerCON connectors IN with fuse and switch
  • 350W Power consumption



  • Housing
  • Moulded fire proof ABS PC
  • Skeleton made of aluminum and steel metal plates
  • Two side handles on base
  • Exterior finish: Black



  • Installation
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point



  • Operating Condition
  • Operating positions: all (device on floor or fixed to a support)
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating



  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)



  • Weight
  • N.W.: 12kg
  • G.W.: 14.3kg



  • Dimensions
  • Product Dimensions:235(D)*316.8(W)*519(H)mm
  • Packing Dimensions:360(D)*365(W)*520(H)mm
