FLYEYE 1915F

Model: SI-119 FLYEYE 1915F

The FLYEYE 1915F is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 19PCS OSRAM OSTAR 15W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.

The ZOOM system ranges from 4° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 4°. And it will bring pure and even wash coverage effect when it zooms to 60°.

The FLYEYE provides 5 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.

It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

Light Source
Source: OSRAM OSTAR 15W 4-in-1 RGBW LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
19PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency

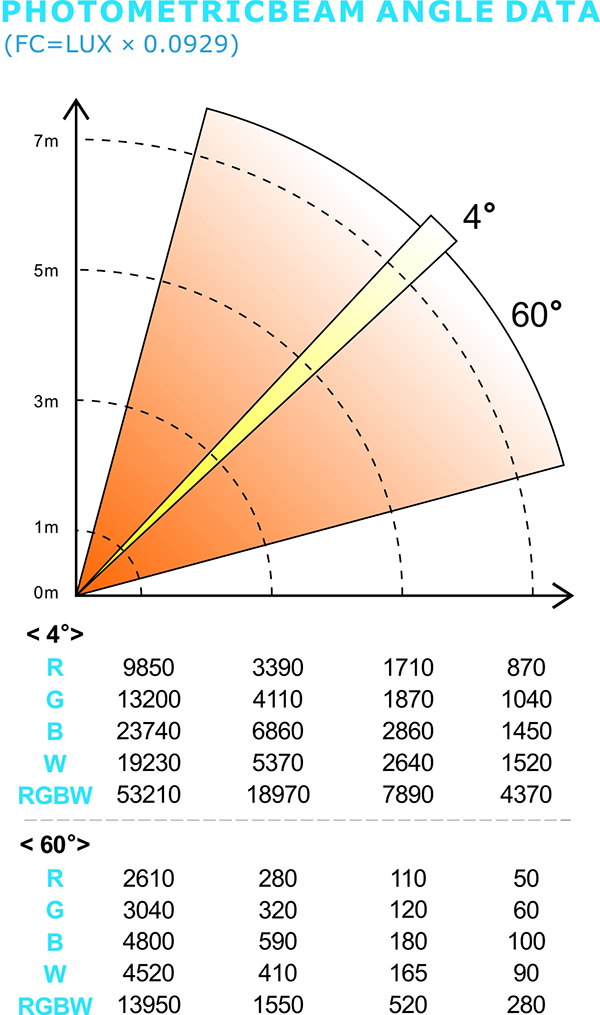

4°-60°Smooth and quiet linear motorized zoom with fine control
360°Continuous front lends rotation with variable speed
Movement
PAN movement: 540° (8/16 bit)
PAN movement: 205° (8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible
Colors
Pixel mapping capability with each LED
Sophisticated 4 colors RGBW mixed
Even and soft light coverage with pure mixing
2500K-8000K linear color temperature adjustment
Preset color macros
Preset color temperatures, 3700K/7000K/7000K
Visual Effect
Different static shape selections
Different dynamic shape selections with variable speed
Shape fading effect
Shape color options with 0-100% dimming
Background colors options with 0-100% dimming
Strobe Effect
1-25T/sec high speed shutter/strobe effect with variable speed
Random strobe effect with variable speed
Preset pulse strobe effect
Differenct forground/background strobe effect
Dimming System
0-100% Smooth linear LED dimming
Fine dimming control
Control System
21/35/78/92/97 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
Sound control sensitivity adjustable
Multi preset internal programs
DMX recorder and edit function integrated
Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT

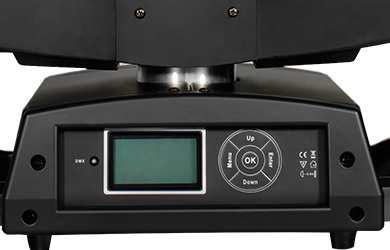

Display System
2.4" TFT LCD display
English/Chinese menu
4 Control buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management (output decreased when over heat)
Power Supply
Electronic power supply
AC100-240V 50/60Hz
PowerCON IN/OUT with swtich and fuse
370W Power consumption
Housing
Moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black
Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 15kg
G.W.: 16.6kg
Dimensions
Product Dimensions: 253(D)*358(W)*494(H)mm
Packing Dimensions: 380(D)*500(W)*510(H)mm

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 19*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 13/15 DMX channel modes USITT DMX-512
Power Consumption: 350W
Dimensions: 253(D)*358(W)*494(H)mm
Packing Dimensions: 430(D)*430(W)*570(H)mm
Net Weight: 15.42kg
Gross Weight: 18.60kg
