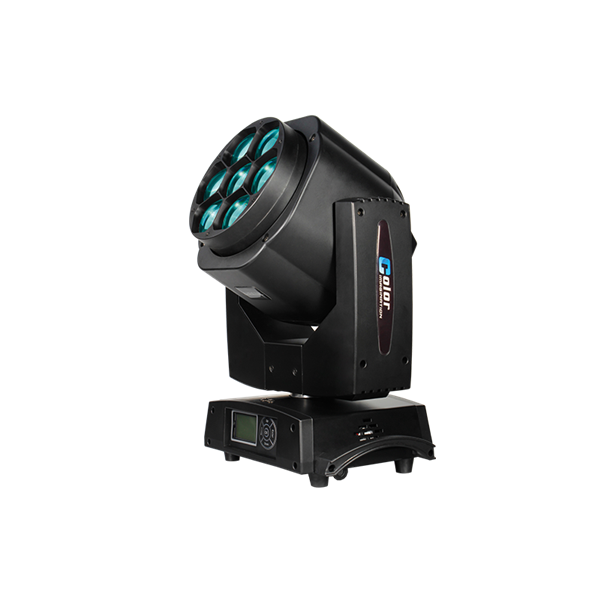

FLYEYE 715F

Model: SI-120 FLYEYE 715F

The FLYEYE 715F is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 4°. And it will bring pure and even wash coverage effect when it zooms to 60°. It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

7*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
50000 hours life span and low power consumption
Each color and each LED controllable individually
8/16 bit smooth and precise resolution for PAN/TILT movement
Scan position memory, auto reposition after unexpected movement
Specific high precision optic lens
Variable direction rotating front lens
4°-60°Smooth electronic linear zoom
Brilliant hard beam effects at 4°
Pure and even wash coverage effects at 60°
Petal-like micro beam effects
Pixel patterning macro effects
Built-in running programs
Built-in color and graphic effect macros
0-100% Linear LED dimmer
1-25T/sec high speed LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
21/35/42/49/56 DMX channels USITT DMX-512
DMX512, master-slave, and sound activated controllable or auto
operation
DMX recorder and edit function integrated
High resolution graphic LCD display
POWERCON connector IN
3-Pin XLR connectors IN/OUT
Aluminium structure with die-cast plastic cover
Two side handles for transportation
High efficiency low noise cooling system
Constant temperature readout and management function
-20°C ~ 45°C max ambient temperature
IP20 protection rating
1*1/4 turn fastening Omega clamp
1*Safety attachment point

Input Voltage:AC90-260V 50/60Hz
LED Quantities:7*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 21/35/42/49/56 DMX channels USITT DMX-512
Power Consumption: 150W
Dimensions:210(D)*300(W)*380(H)mm
Packing Dimensions:250(D)*350(W)*405(H)mm
Net Weight: 6.00kg
Gross Weight: 7.30kg
