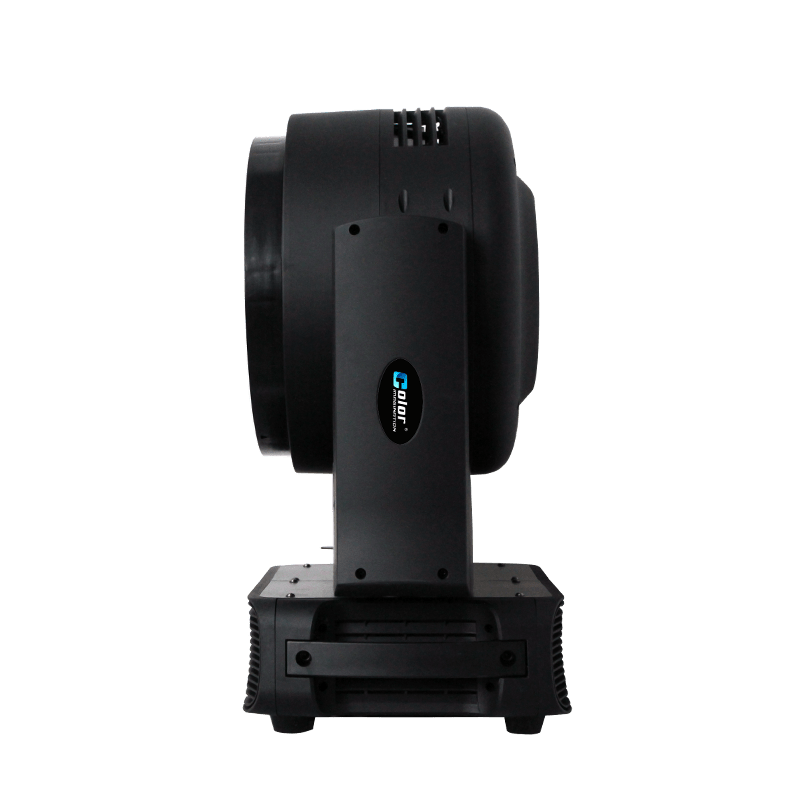

Model: SI-139 MAGICZOOM 3715FP

The MAGICZOOM 3715FP is an ultra high power LED based moving head wash with smart and compact stylish fireproof housing with a smooth, fast and quiet motorized zoom from 5°-62°range. It features 37*15W 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The MAGICZOOM is flicker-free fixture with even, soft edge and pure color mixing coverage. It provides 10 kinds of variable speed shutter/strobe effect, virtual color macro effect (33 static and 16 dynamic), dynamic patterns, static patterns, kinds of pre-programming linear color temperature adjustment options, and Tungsten lamp simulation to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles. The 2*1/4 turn  fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It provides friendly PAN/TILT locks for safety during transportation.

The MAGICZOOM 3715FP supports DMX, RDM (Remote Device Management), Art-Net protocol, Wireless Solution wireless system built-in.

The fixture is tuned with proper LED refresh rate and gamma brightness for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.


  • 37*15W 4-IN-1 RGBW LEDs
  • 50,000 hours lifespan and low power consumption
  • Pixel mapping capability with each LEDs controllable individually
  • Specific optic lens of highly efficient elements integrated with glass tube
  • Fast, smooth and quiet motorized zoom with 5° -62°range
  • Even, soft edge and pure color mixing coverage
  • Flicker free sources management
  • 8/16 Bit smooth, fast and precise PAN/TILT movement
  • 540° PAN and 270° TILT movement
  • PAN/TILT reversible advantage
  • PAN/TILT calibration available
  • Scan position memory, auto reposition after unexpected movement
  • 0-100% Smooth linear LED dimmer
  • Fine dimmer available
  • 5 Dimmer modes (default, standard, stage, TV, theartre) and 4 dimmer curves (default, linear, square law, inv SQ law)
  • Different pre-programming virtual colors and linear color temperature adjustment
  • Linear color temperature adjustment from 2800K to 8000K
  • Virtual tungsten lamp simulation effect from 2800K-3200K
  • Different pre-programming dynamic patterns with variable speed and bi-directional rotation
  • Different pre-programming static patterns
  • Different foreground color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Different background color options and linear color temperature adjustments for dynamic/static PATTERNs, with 0-100% linear dimmer
  • Different built-in default programs for easy operation
  • 10 Kinds of variable speed strobe effect with 1-25 flashes per second
  • 19/42/186 DMX channel modes (USITT DMX-512)
  • DMX512, master-slave, and sound activated controllable or auto operation
  • DMX recorder and edit function integrated
  • Sound control with sensitivity adjustment
  • RDM available (Remote Device Management)
  • Art-NET available
  • Wireless Solution’s wireless receiver system built-in
  • 2.4" TFT LCD display (320*240pix) with 4 control buttons and battery back-up for menu preset
  • 180°Reversible for LCD display
  • LCD display switch-off automatically after 60 seconds
  • DMX signal monitoring indicator available
  • Software up-datable through DMX connectors
  • Efficient low noise self adjusting fan cooling system
  • Constant temperature readout and management function
  • Over heat protection management
  • Powercon IN/ OUT with power switch and fuse
  • RJ45 etherCON IN/OUT (Art-NET)
  • 3-Pin XLR DMX connectors IN/OUT
  • IP20 protection rating
  • -25℃ to 45℃ ambient temperature
  • 2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
  • 1*Safety attachment point
  • CE (EMC/LVD) and RoHS certified



Input Voltage: AC100-240V 50/60Hz
LED Quantities: 19*40W OSRAM 4-IN-1 RGBW LEDs
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 19/42/186 DMX channel modes
Power Consumption: 680W
Dimensions: 344.6(D)*453.67(W)*553.19(H)mm
Packing Dimensions: 280(D)*490(W)*560(H)mm
Net Weight: 11.34kg
Gross Weight: 13.90kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS
