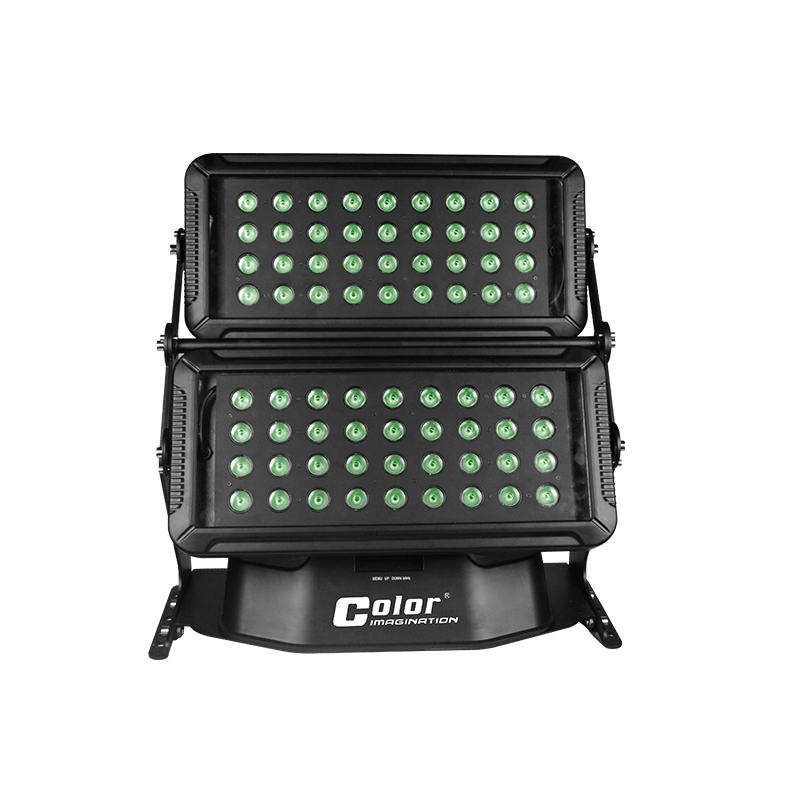

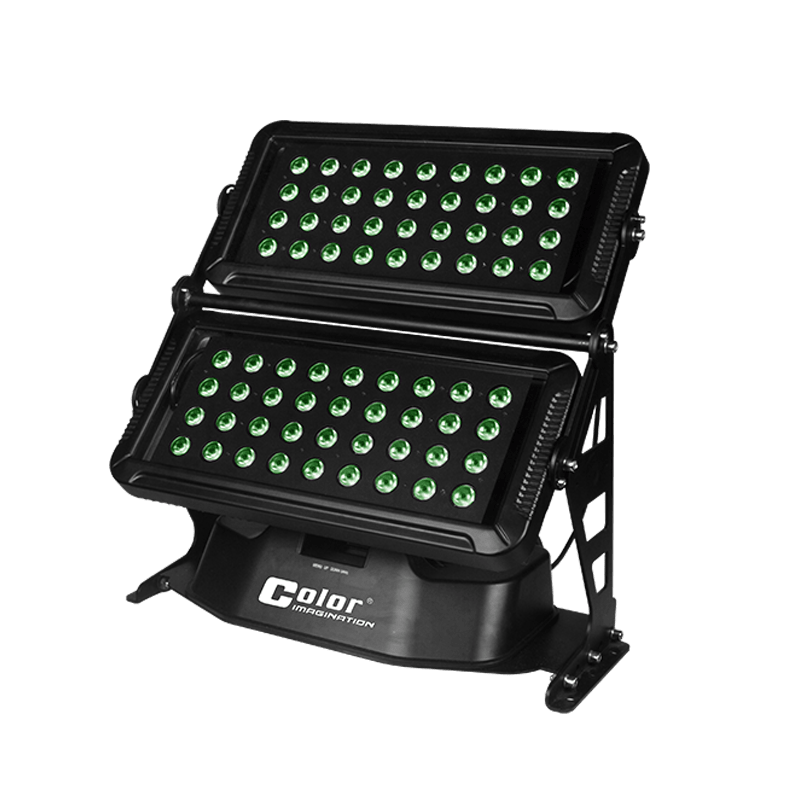

Model: W-002A LEDARC 720F

The LEDARC 720F has an IP65 rated double layers waterproof body with TILT angle adjustable manually individually to light up your large architectures at any angle with any colors by mixing. There are totally 2 options available meeting any kinds of needs on applications with an extremely incredible light output . It offers a complete solution for specialized architectural projects with high standard requirements.

IP_16

  • 72 PCS 10W 4-IN-1 LEDs
  • 120 PCS 10W 4-IN-1 LEDs
  • 16.7 millions of colors by mixing
  • Specific 25 degree high efficiency optic lens
  • 50,000 hours life span and lower power consumption

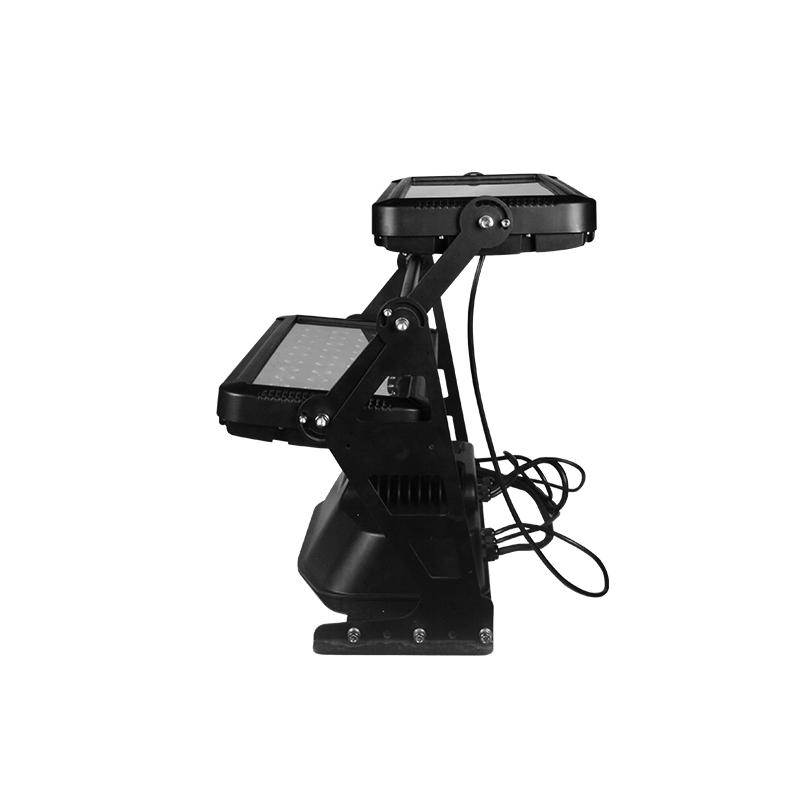

  • Controllable manually for TILT angle adjustment
  • LED shutter effect
  • Smooth LED dimming
  • LED rainbow effect
  • Macro effect
  • Strobe effect with 25 flashes per second and pulse effect
  • General dimming and blackout for all four colors
  • DMX512, master-slave and sound activated controllable or auto operation
  • LED display

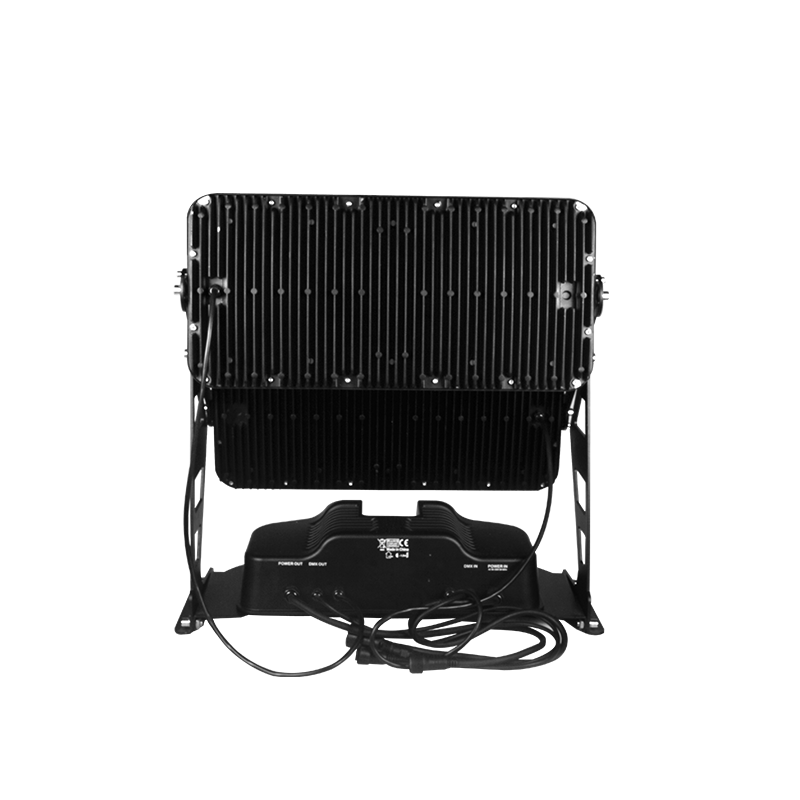

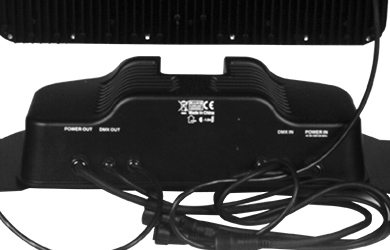

  • Waterproof power connectors IN/OUT
  • 3-Pin DMX waterproof connectors IN/OUT
  • -20°C to 45°C operation temperature
  • Die-cast aluminum structure
  • IP65 protection rating

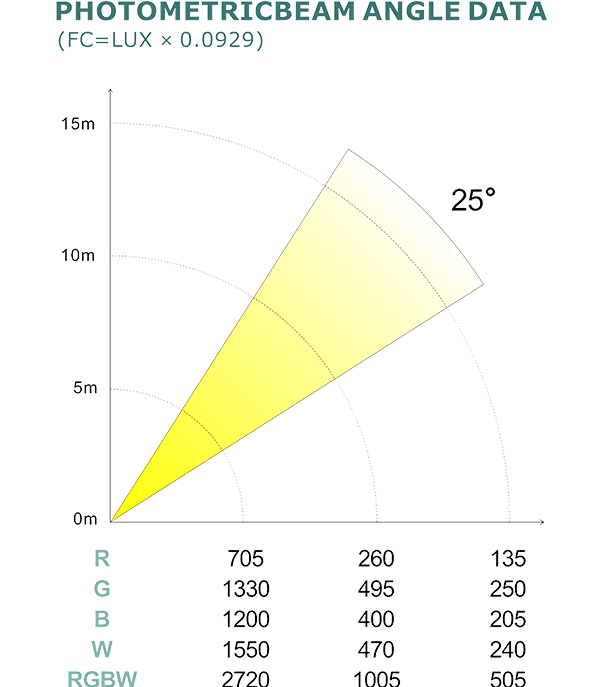

PHOTOMETRIC BEAM ANGLE DATA_69



Input Voltage: AC90-260V 50-60Hz
LED Quantities: 72 PCS 10W 4-IN-1 LEDs
                        120 PCS 10W 4-IN-1 LEDs
Control Signal:DMX512, master-slave and sound
                       activated  or auto operation
Control Channel: 4/6/8 DMX Channels USITT DMX-512
Power Consumption:  750W/1300W

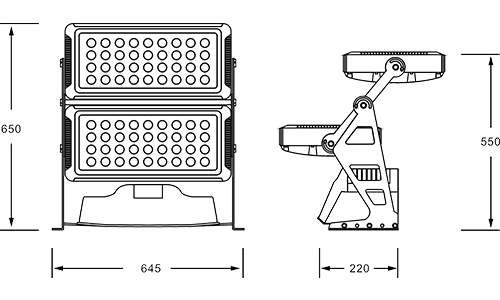

Dimensions:  220(D)*645(W)*550(H)mm
Packing Dimensions:  540(D)*710(W)*620(H)mm
Net Weight: 32.00kg
Gross Weight: 34.00kg

SIZE_79
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

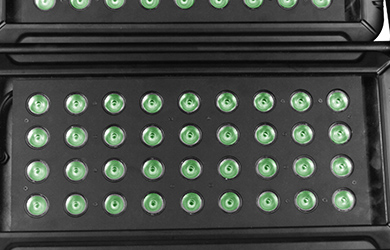

  • a.jpg

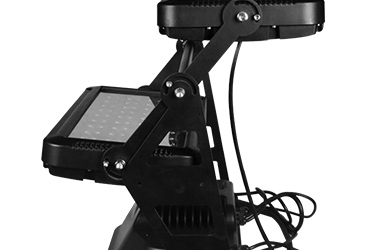

  • b_120
  • c_119

Effect Pictures

3_1

Safety Cable

STANDARD
code:
for fixing clamps
