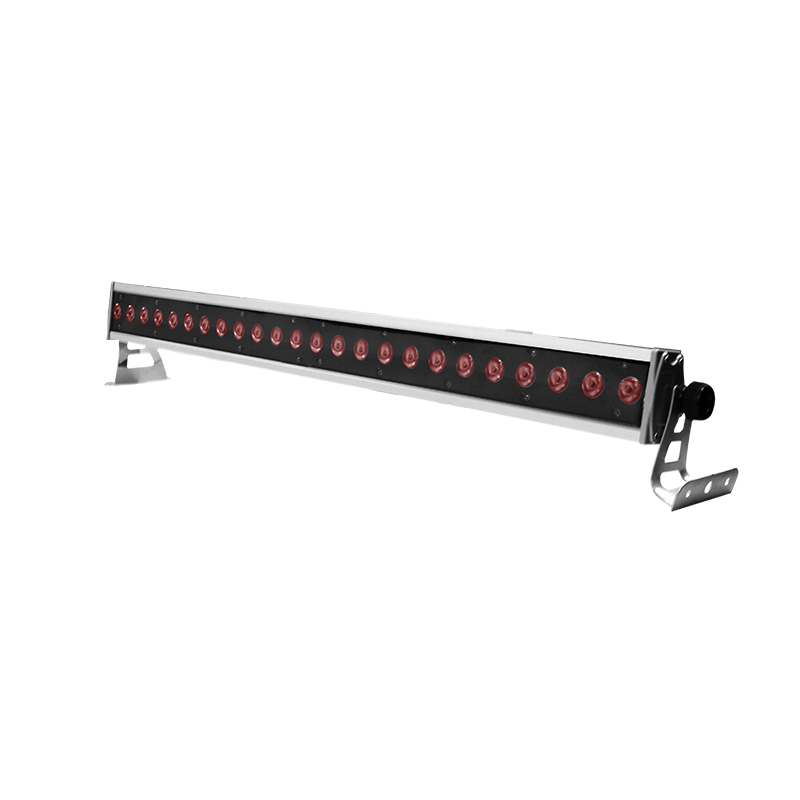

Model: W-018 LEDARC 2410F

The LEDARC 2410F has an IP65 rated waterproof line body with TILT angle adjustable manually to light up your small architectures at any angle with any colors by mixing. It features 24PCS 10W 4-IN-1 LEDs with high light output. It offers a complete solution for specialized architectural projects with high standard requirements, like mansions, theaters, casinos, gardens, bridges, shopping centers, theme parks, and entertainment plazas.

IP_16

  • 24PCS 10W 4-in-1 LEDs (RGBW)
  • 16.7 millions of colors by mixing
  • Specific high efficiency 25 degree optic lens
  • 50,000 hours life span and lower power consumption
  • Controllable manually for TILT angle adjustment
  • LED shutter effect
  • Smooth LED dimming
  • LED rainbow effect
  • Macro effect
  • Strobe effect with 25 flashes per second
  • General dimming and blackout for all four colors
  • DMX512, master-slave and sound activated controllable or auto operation
  • LED display
  • Waterproof power connectors IN/OUT
  • 3-Pin DMX waterproof connectors IN/OUT
  • -20°C  to 45°C  operation temperature
  • Die-cast aluminum structure
  • IP65 protection rating

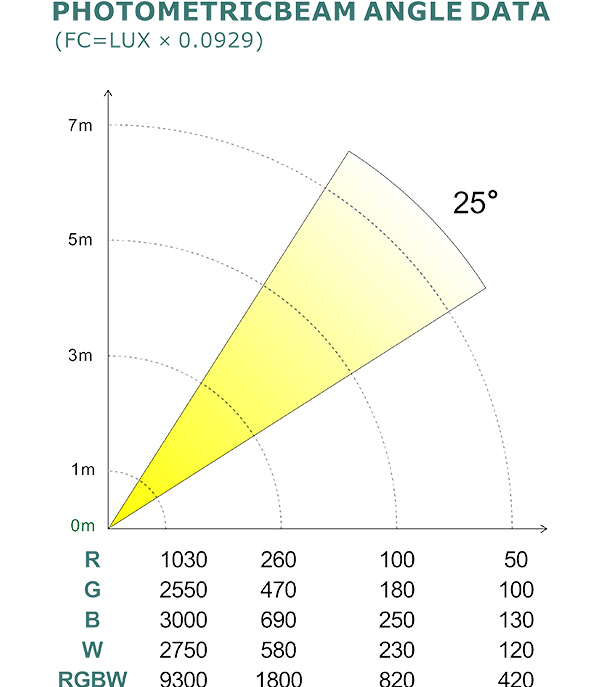

PHOTOMETRIC BEAM ANGLE DATA_74



Input Voltage: AC90-260V 50-60Hz
LED Quantities: 24PCS 10W 4-in-1 LEDs (RGBW)
Control Signal:DMX512, master-slave and sound
                       activated  or auto operation
Control Channel: 4/9 DMX Channels USITT DMX-512
Power Consumption: 245W
Dimensions: 120(D)*980(W)*150(H)mm
Packing Dimensions: 170(D)*1140(W)*240(H)mm(1PCS)
                                   370(D)*1160(W)*260(H)mm(2PCS)
Net Weight: 6.28kg
Gross Weight: 7.82kg

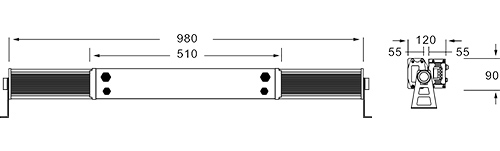

SIZE_84

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

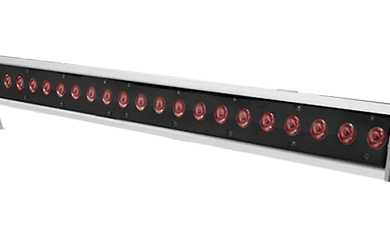

  • a.jpg

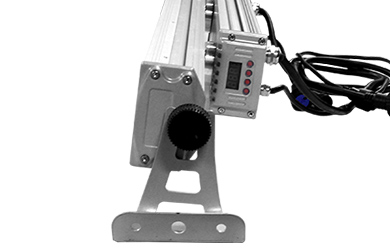

  • b_126

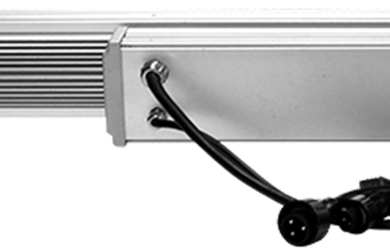

  • c_125

Effect Pictures

3_1

Safety Cable

STANDARD
code:
for fixing clamps
