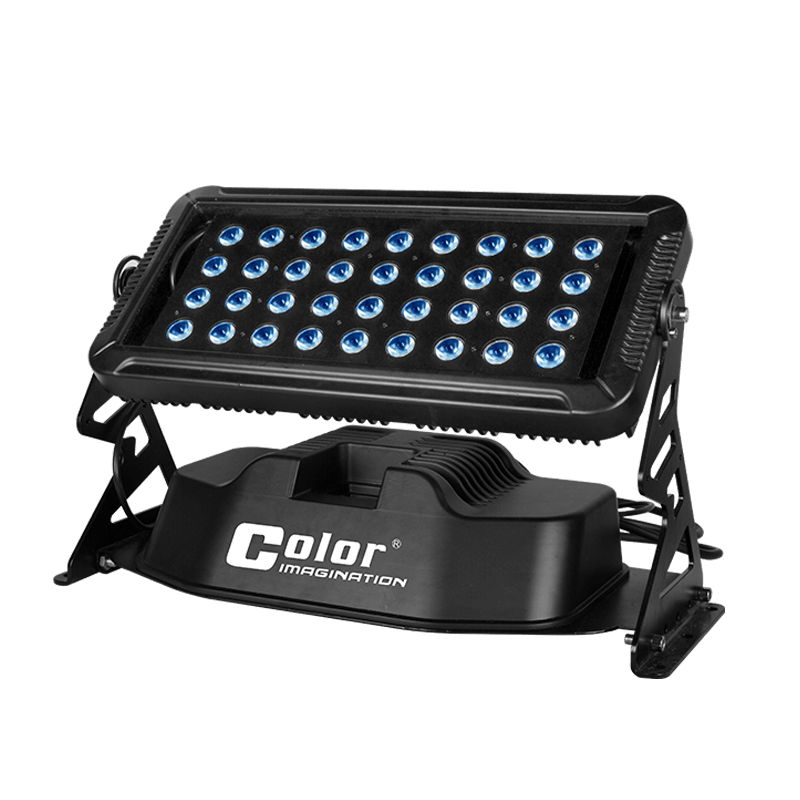

Model: W-003A LEDARC 360F

The LEDARC 360F has an IP65 rated waterproof body with TILT angle adjustable manually to light up your large architectures at any angle with any colors by mixing. There are totally 2 options available meeting any kinds of needs on applications with an extremely incredible light output. It offers a complete solution for specialized architectural projects with high standard requirements.
IP_16
  • 36PCS 10W 4-IN-1 LEDs
  • 60PCS 10W 4-IN-1 LEDs
  • 16.7 millions of colors by mixing
  • Specific 25 degree high efficiency optic lens
  • 50,000 hours life span and lower power consumption
  • Controllable manually for TILT angle adjustment
  • LED shutter effect
  • Smooth LED dimming
  • LED rainbow effect
  • Macro effect
  • Strobe effect with 18 flashes per second and pulse effect
  • General dimming and blackout for all four colors
  • DMX512, master-slave and sound activated controllable or auto operation
  • LED display
  • Waterproof power connectors IN/OUT
  • 3-Pin DMX waterproof connectors IN/OUT
  • -20°C to 45°C operation temperature
  • Die-cast aluminum structure
  • IP65 protection rating
PHOTOMETRIC BEAM ANGLE DATA.jpg



Input Voltage: AC90-260V 50-60Hz
LED Quantities: 36PCS 10W 4-IN-1 LEDs
                         60PCS 10W 4-IN-1 LEDs
Control Signal:DMX512, master-slave and sound
                       activated  or auto operation
Control Channel: 4/6/8 DMX Channels USITT DMX-512
Power Consumption:  380W    650W

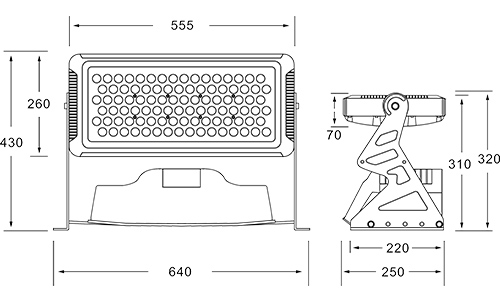

Dimensions: 250(D)*555(W)*430(H)mm
Packing Dimensions: 380(D)*720(W)*430H)mm
Net Weight: 18.00kg
Gross Weight: 20.50kg

SIZE_80
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

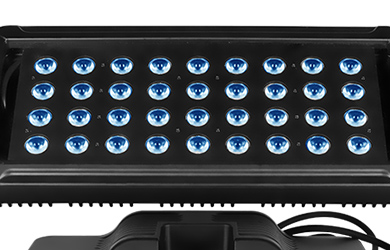

  • a.jpg

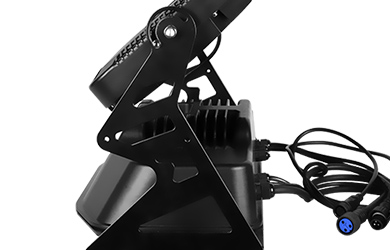

  • b_121
  • c_120

Effect Pictures

3_1

Safety Cable

STANDARD
code:
for fixing clamps
