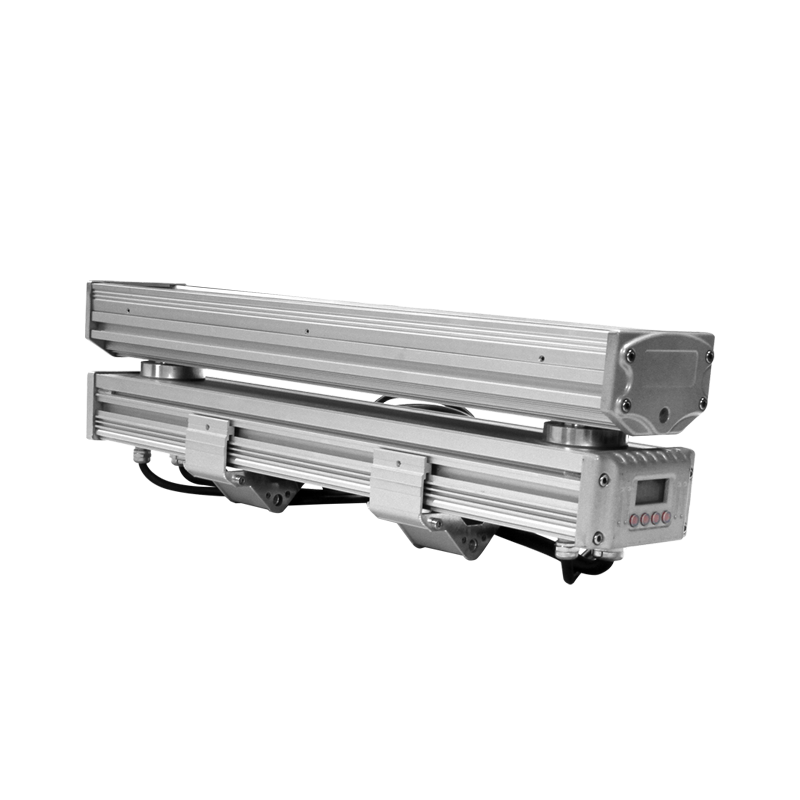

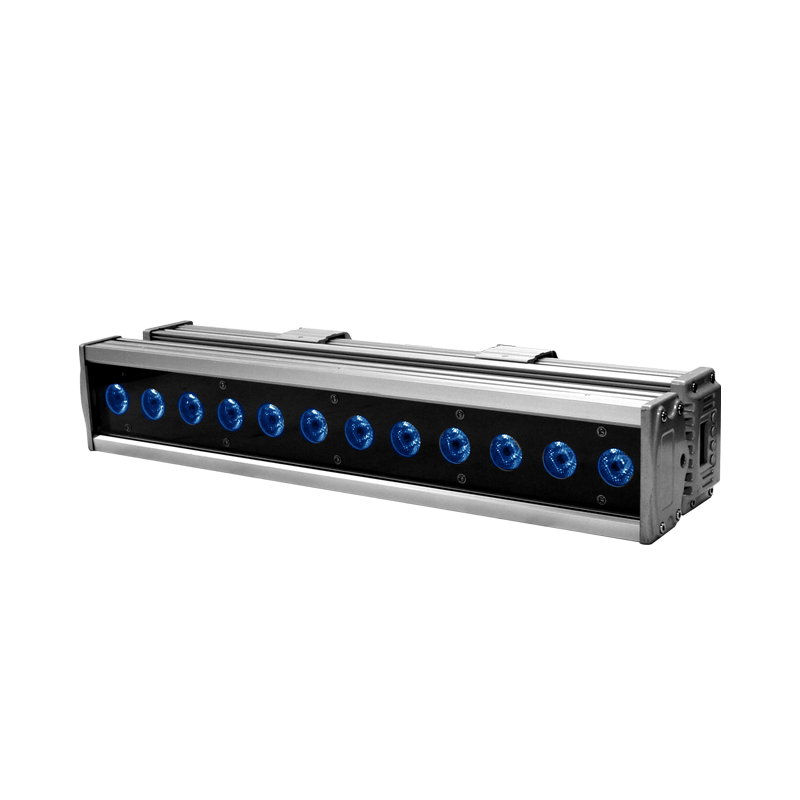

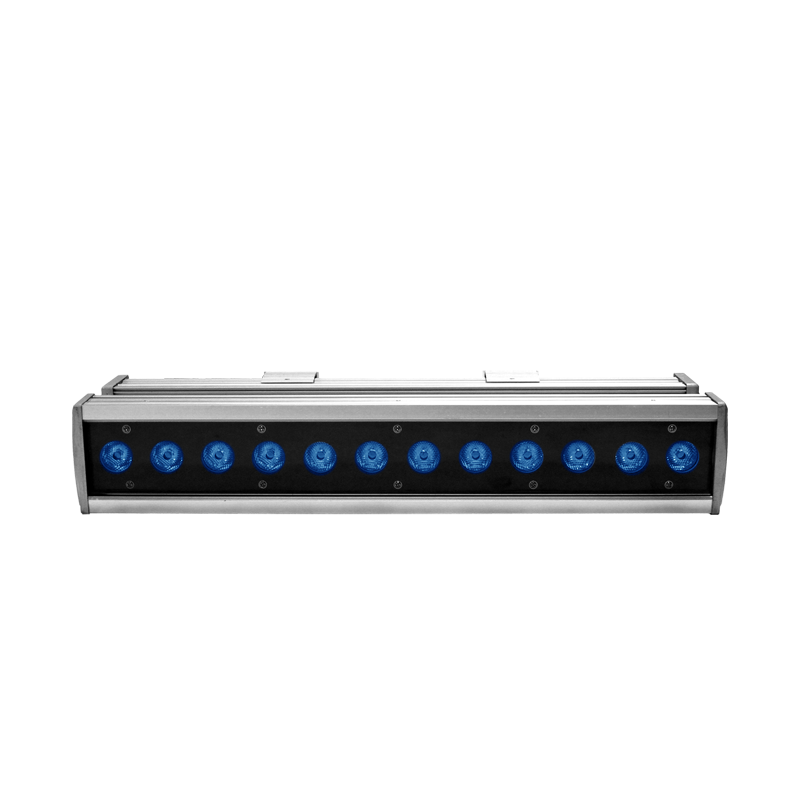

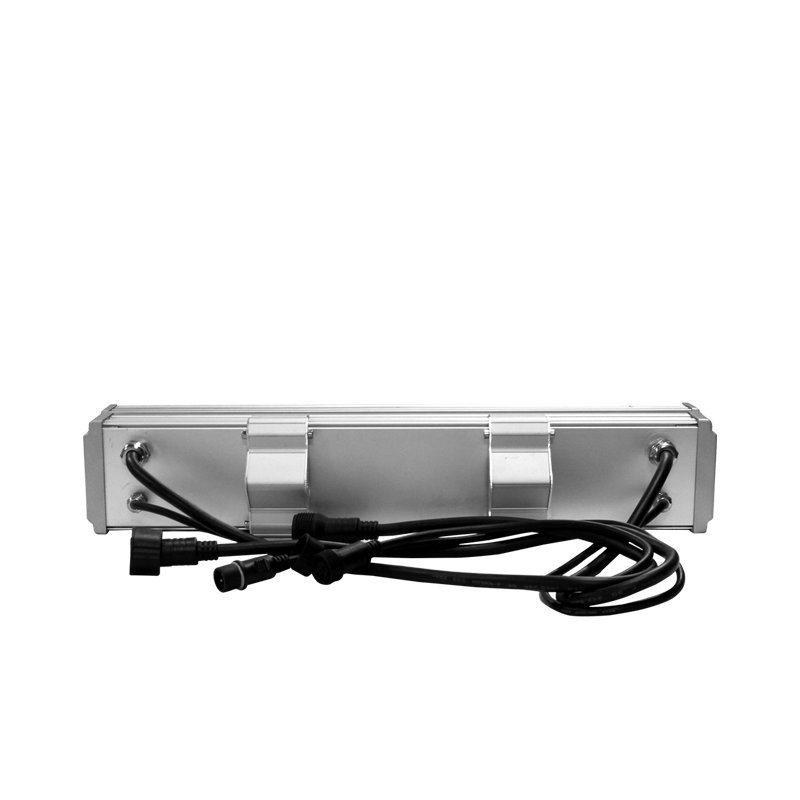

LEDARC 1210F

Model: W-017 LEDARC 1210F

The LEDARC 1210F has an IP65 rated waterproof line body with TILT angle adjustable manually to light up your small architectures at any angle with any colors by mixing. It offers a complete solution for specialized architectural projects with high standard requirements, like mansions, theaters, casinos, gardens, bridges, shopping centers, theme parks, and entertainment plazas

IP_16

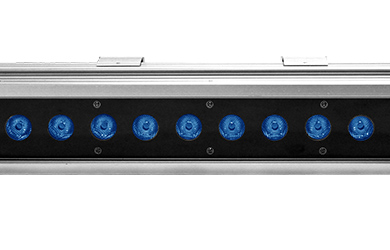

12PCS 10W 4-in-1 LEDs (RGBW)
16.7 millions of colors by mixing

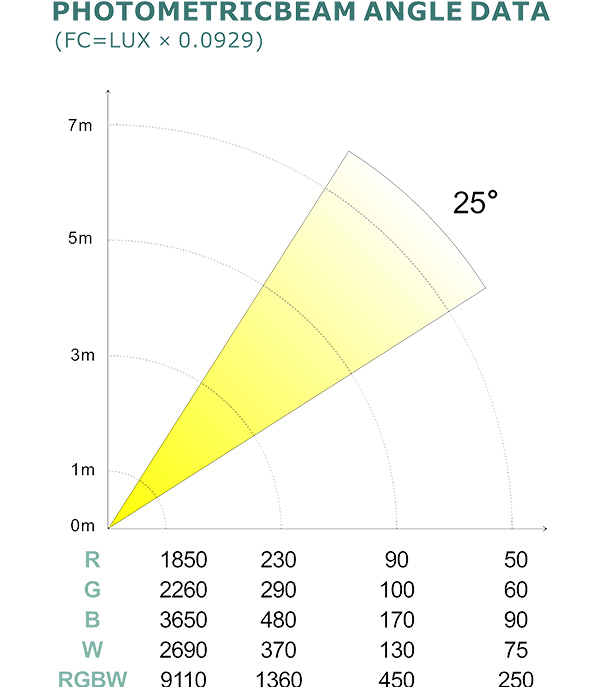

Specific high efficiency 25 degree optic lens
50,000 hours life span and lower power consumption
Controllable manually for TILT angle adjustment
LED shutter effect
Smooth LED dimming
LED rainbow effect
Macro effect
Strobe effect with 25 flashes per second
General dimming and blackout for all four colors
4/9 DMX channel modes
DMX512, master-slave and sound activated controllable or auto operation

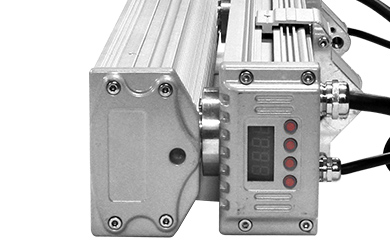

LED display

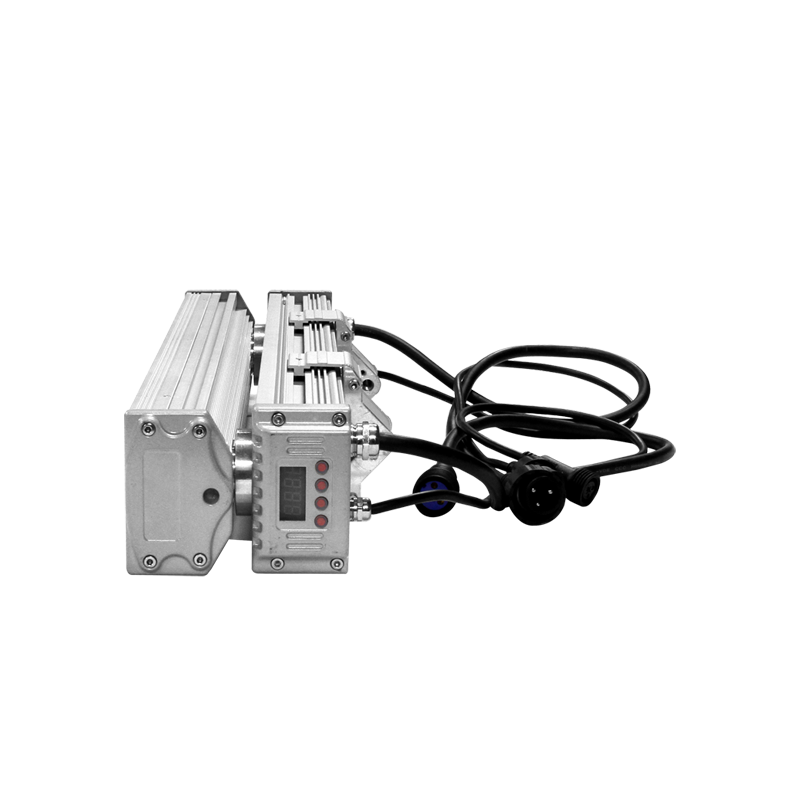

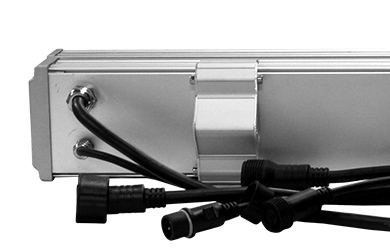

Waterproof power connectors IN/OUT
3-Pin DMX waterproof connectors IN/OUT
-20°C to 45°C operation temperature
Die-cast aluminum structure
IP65 protection rating

Input Voltage: AC90-260V 50-60Hz
LED Quantities: 12PCS 10W 4-in-1 LEDs (RGBW)
Control Signal:DMX512, master-slave and sound
activated or auto operation
Control Channel: 4/9 DMX Channels USITT DMX-512
Power Consumption: 127W

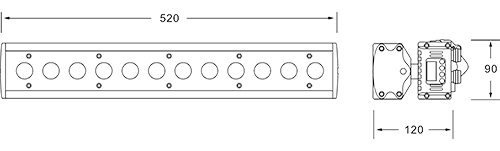

Dimensions: 76(D)*500(W)*163(H)mm
Packing Dimensions: 170(D)*700(W)*230(H)mm
Net Weight: 4.36kg
Gross Weight: 5.9kg
