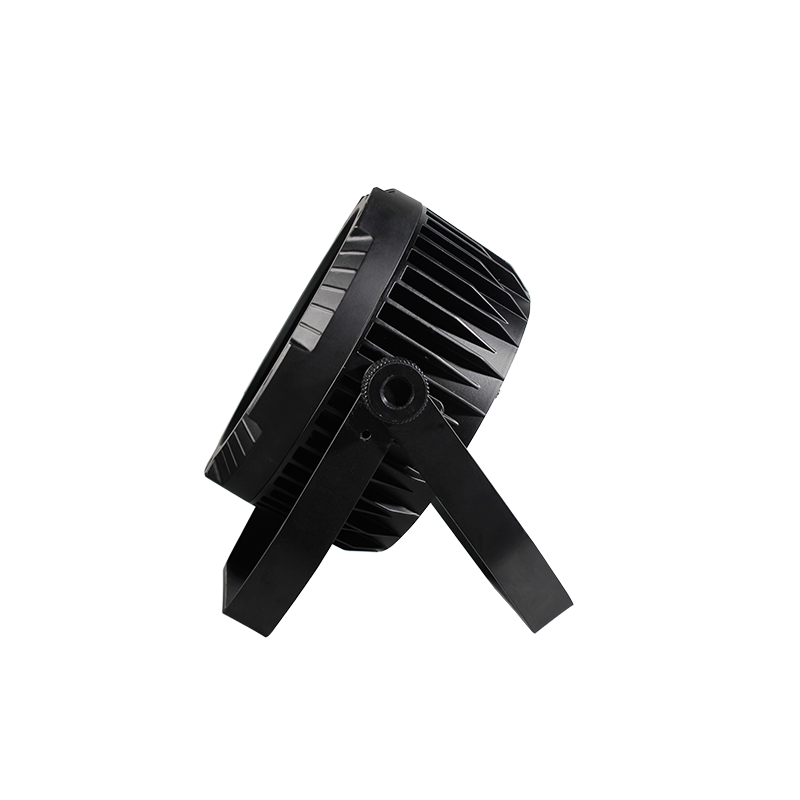

Model: SI-160 FLATPAR 1818

The FLATPAR is a very high power indoor rated outdoor LED slim par can, available for following versions

18*18W 6-in-1 LEDs (RGBWAUV)
18*15W 5-in-1 LEDs (RGBWA)
18*10W 4-in-1 LEDs (RGBW)
54*3W LEDs (RGBW)

It features excellent color mixing, quiet running and flicker free control. The fixtures is built in with internal programs and macros. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

SI-160 is designed for applications as large scale concerts, TV studio, indoor architectural lighting, etc.


  • 18*18W 6-in-1 LEDs (RGBWAUV)
  • 18*15W 5-in-1 LEDs (RGBWA)
  • 18*10W 4-in-1 LEDs (RGBW)
  • 54*3W LEDs (RGBW)
  • 50,000 hours life span and low power consumption
  • 25° Projection beam angle
  • Aluminum die-casting structure design with optimum cooling system
  • Infinite color mixing system and rainbow effect
  • 16.7million additive colors whit full saturation control
  • 10 DMX channels USITT DMX-512 (FLATPAR 1818)
  • 9 DMX channels USITT DMX-512 (FLATPAR 1815)
  • 8 DMX channels USITT DMX-512 (FLATPAR 1810/FLATPAR 543)
  • DMX512, Master-Slave, Sound Activated and auto operation
  • Built-in programs that could be called up via a DMX controller
  • High speed LED strobe effect and pulse strobe effect
  • 0-100% electronic dimming and blackout for all LEDs
  • Different kinds of pre-programmed macro effects with variable speed
  • LED display with 4 control buttons
  • Powercon connectors IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • IP20 protection rating
  • Overheat protection
  • -35℃ to 45℃ ambient temperature
  • Dual mounting brackets for ground or hanging application
PHOTOMETRIC BEAM ANGLE DATA_48



Input Voltage:AC90-260V 50/60Hz
LED Quantities: 18*18W 6-in-1 LEDs (RGBWAUV)
              18*15W 5-in-1 LEDs (RGBWA)
              18*10W 4-in-1 LEDs (RGBW)
              54*3W LEDs (RGBW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 10 DMX channels USITT DMX-512 (FLATPAR 1818)
               9 DMX channels USITT DMX-512 (FLATPAR 1815)
               8 DMX channels USITT DMX-512 (FLATPAR 1810/FLATPAR 543)
Power Consumption:320W/270W/180W/170W
Dimensions:120(D)*280(W)*300H)mm
Packing Dimensions:170(D)*295(W)*340(H)mm
Net Weight:4.7kg
Gross Weight:6kg
