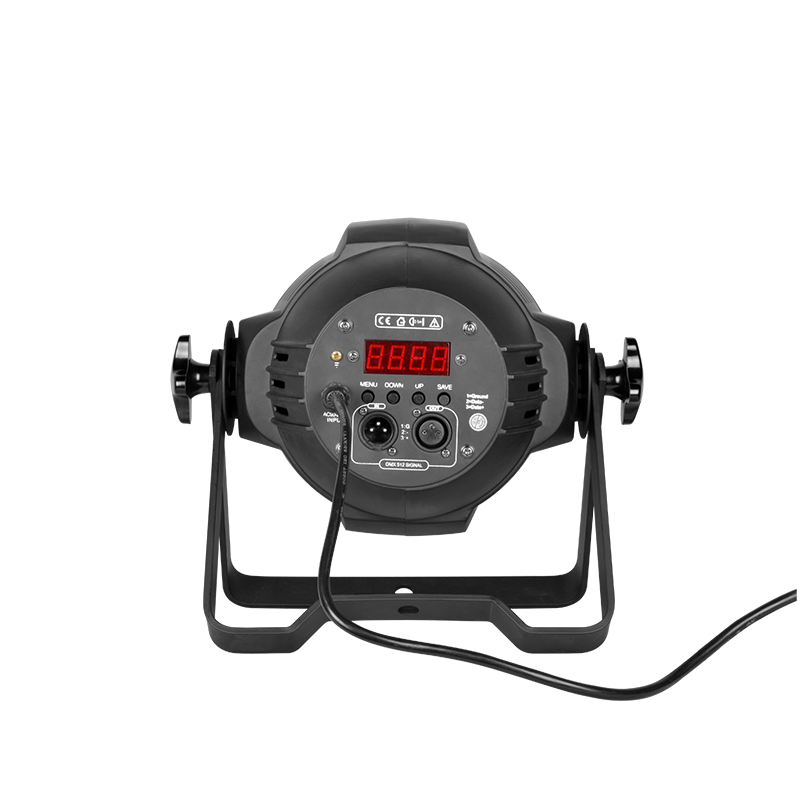

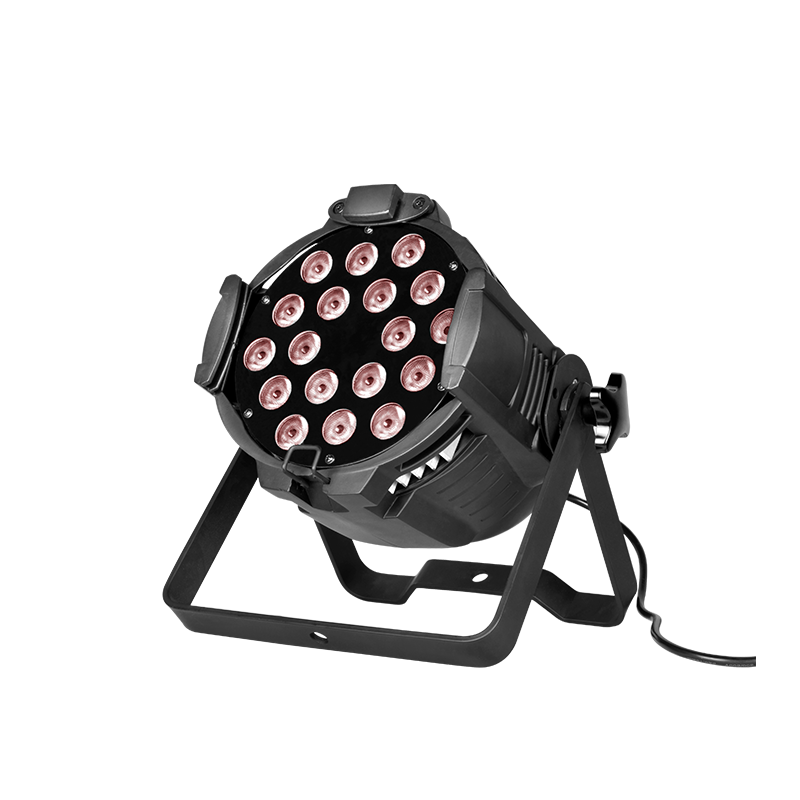

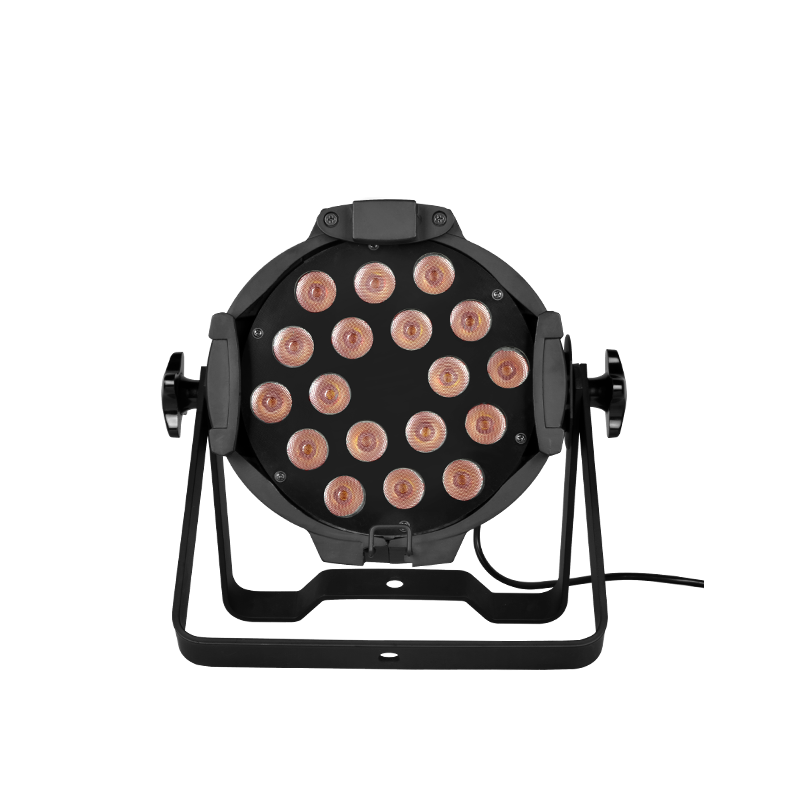

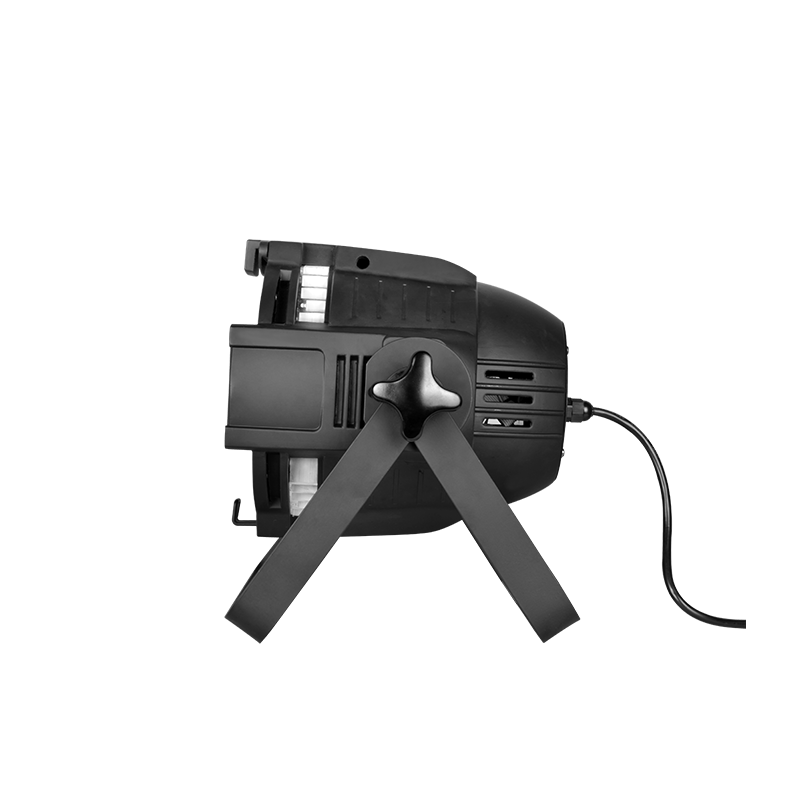

Model: SI-045A LEDPAR 180F

The LEDPAR 18- are very high power indoor LED par cans with 18 multi color LED chips. It features excellent color mixing, quiet running and flicker free control. The fixtures is built in with internal programs and macros. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

LEDPAR 18- is designed for applications as large scale concerts, TV studio, indoor architectural lighting, etc.



  • Light Source
    Source:
    SI-045A LEDPAR 1818: 18*18W 6-in-1 LEDs (RGBWAUV)
    SI-045B LEDPAR 1815: 18*15W 5-in-1 LEDs (RGBWA)
    SI-045C LEDPAR 1810F: 18*10W 4-in-1 LEDs (RGBW)
    Life Span: 50000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

    Optics
    High efficiency optic system
    25°Beam angle (15°/45°optional)
    35°Field angle
    High output

    Color System
    RGBWAUV, RGBWA, RGBW
    Smooth and pure color mixing capability

    Strobe Effect
    1-25T/sec high speed LED shutter/strobe effect with variable speed

    Dimming System
    0-100% Smooth linear LED dimming

    Control System
    10(6-in-1), 9 (5-in-1), 8 (4-in-1) DMX channels USITT DMX-512
    DMX512, master-slave, sound or auto operation
    Built-in programs
    Shielded input signal protection for stable signal without interference
    3-pin XLR connectors IN/OUT

    Display System
    LED display
    4 Control buttons

    Cooling System
    Advanced cooling system integrated aluminum
    Over temperature protection management

    Power Supply
    Electronic supply with active PFC
    AC100-240V 50/60Hz
    Power cable IN
    220W/180W/150W Power consumption

    Housing
    Aluminum die-casting structure
    2 Hanging brackets
    Exterior finish: Black

    Installation
    1*Safety attachment point

    Operating Condition
    Operating positions: all (device on floor or fixed to a support)
    -25℃ to 45℃ ambient temperature
    IP20 protection rating

    Compliance
    CE
    2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU - Electromagnetic Compatibility (EMC)
    2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

    Weight
    N.W.: 2.3kg
    G.W.: 2.8kg

    Dimensions
    Product Dimensions: 324(D)*220(W)*262.4(H)mm
    Packing Dimensions: 260(D)*260(W)*370(H)mm

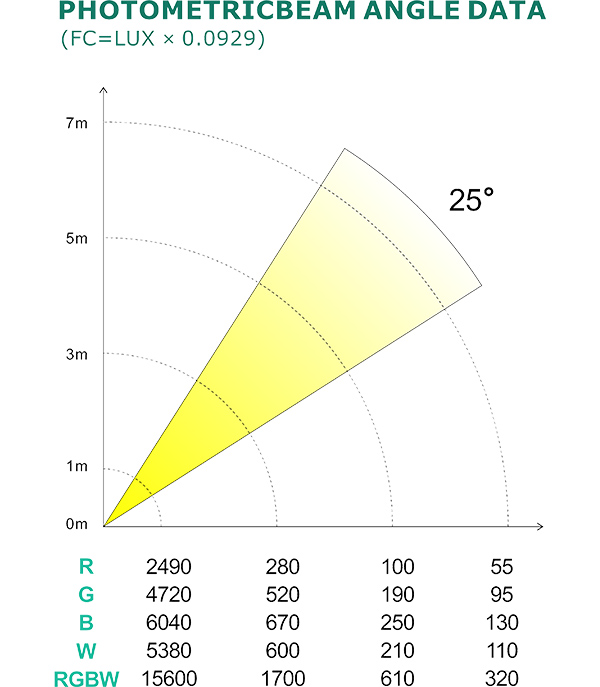

PHOTOMETRIC BEAM ANGLE DATA_54



Input Voltage:AC90-260V 50/60Hz
LED Quantities:18*10W 4-in-1 LEDs (RGBW)
                         24*10W 4-in-1 LEDs (RGBW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 8 DMX channels USITT DMX-512
Power Consumption:180W/240W
Dimensions:324(D)*220(W)*262.4(H)mm
Packing Dimensions:250(D)*250(W)*360(H)mm
Net Weight:4kg
Gross Weight:4.7kg

SIZE_68
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



Details

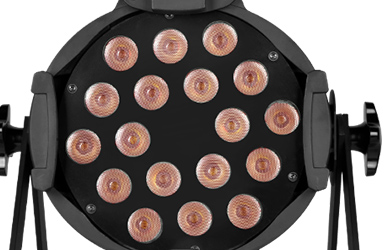

  • a_106
