LEDPAR 543TIP

Model: SI-036B LEDPAR 543TIP

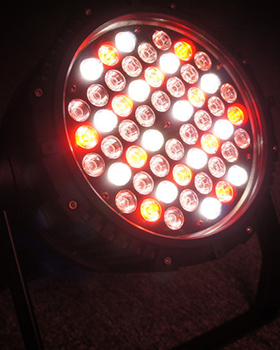

The 543TIP is a very high power IP65 rated outdoor LED par can using 54*3W 3-in-1 LEDs (RGB). It features excellent color mixing, quiet running and flicker free control. The fixtures is built in with internal programs and macros. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

543TIP is designed for applications as large scale concerts, TV studio, indoor architectural lighting, etc.

IP_16

54*3W 3-in-1 LEDs (RGB)
50,000 hours life span and low power consumption
25° Projection beam angle
Aluminum die-casting structure design with optimum cooling system
Infinite color mixing system and rainbow effect
16.7million additive colors whit full saturation control
7 DMX channels USITT DMX-512
DMX512, Master-Slave, Sound Activated and auto operation
Built-in programs that could be called up via a DMX controller
High speed LED strobe effect and pulse strobe effect
0-100% electronic dimming and blackout for all LEDs
Different kinds of pre-programmed macro effects with variable speed
LED display with 4 control buttons
IP rated power IN/OUT
IP rated 3-pin XLR connectors IN/OUT
IP65 protection rating
Overheat protection
-35℃ to 45℃ ambient temperature
Dual mounting brackets for ground or hanging application

Input Voltage:AC90-260V 50/60Hz
LED Quantities: 54*3W LEDs (RGBW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 7 DMX channels USITT DMX-512
Power Consumption:170W
Dimensions:324(D)*220(W)*262.4(H)mm
Packing Dimensions:305(D)*305(W)*280(H)mm
Net Weight:8kg
Gross Weight:10kg
