Model: SI-034A LEDPAR 2410IP

The LEDPAR 2410IP is a very high power IP65 rated outdoor LED par can using 24*10W 4-in-1 LEDs (RGBW). It features excellent color mixing, quiet running and flicker free control. The fixtures is built in with internal programs and macros. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

LEDPAR 2410IP is designed for applications as large scale concerts, TV studio, indoor architectural lighting, etc.

IP_16

  • 24*10W 4-in-1 LEDs (RGBW)
  • 50,000 hours life span and low power consumption
  • 25° Projection beam angle
  • Aluminum die-casting structure design with optimum cooling system
  • Infinite color mixing system and rainbow effect
  • 16.7million additive colors whit full saturation control
  • 8 DMX channels USITT DMX-512
  • DMX512, Master-Slave, Sound Activated and auto operation
  • Built-in programs that could be called up via a DMX controller
  • High speed LED strobe effect and pulse strobe effect
  • 0-100% electronic dimming and blackout for all LEDs
  • Different kinds of pre-programmed macro effects with variable speed
  • LED display with 4 control buttons
  • IP rated power IN/OUT
  • IP rated 3-pin XLR connectors IN/OUT
  • IP65 protection rating
  • Overheat protection
  • -20℃ to 45℃ ambient temperature
  • Dual mounting brackets for ground or hanging application
PHOTOMETRIC BEAM ANGLE DATA.jpg



Input Voltage:AC90-260V 50/60Hz
LED Quantities:24*10W 4-in-1 LEDs (RGBW)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 8 DMX Channels
Power Consumption:240W
Dimensions:235(D)*335(W)*330(H)mm
Packing Dimensions:250(D)*250(W)*360(H)mm
Net Weight:6.46kg
Gross Weight:.5.70kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



Detail

  • a_93
  • b_92
  • c_90

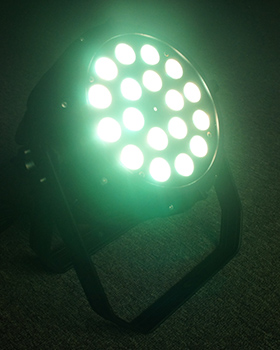

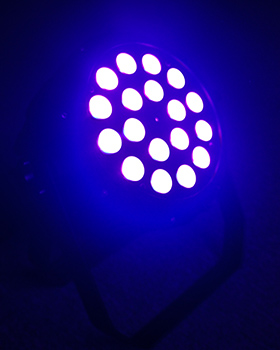

Effect diagram

  • b_93
  • a_94
  • c_91
  • d_65
3_1

Safety Cable

STANDARD
code:
for fixing clamps
