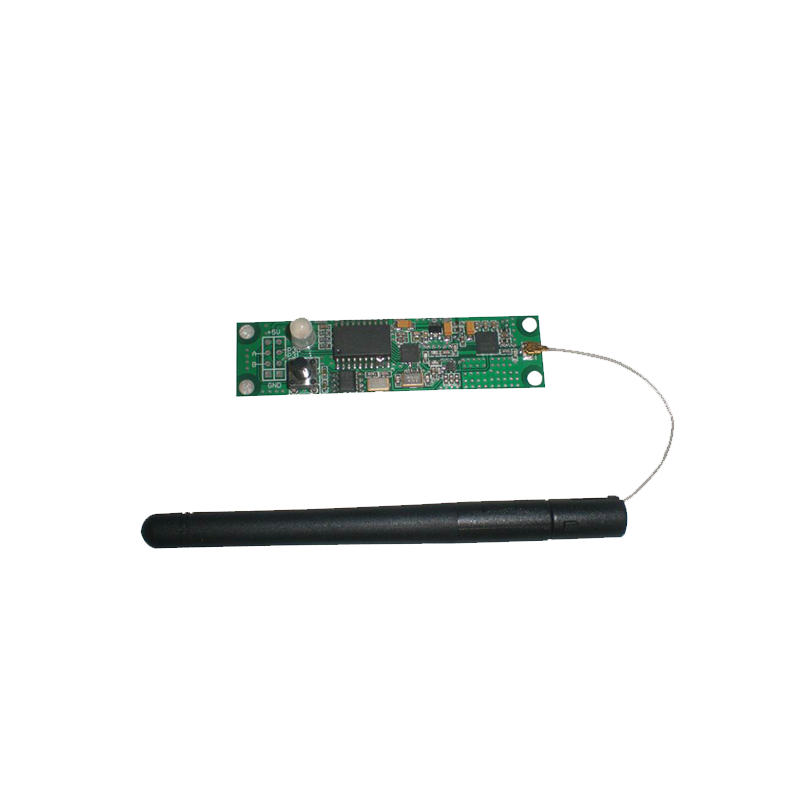

Model: WI-PCB
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And it also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
WI-PCB adopt 2.4G ISM frequency section( global opening section) without permission limited High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly，high anti-jamming ability.
- 2.4G wireless DMX512 R/T moulding board
- Small size, Esay to suit for interior of accessed lighting
- Single key to operate, tricolor LED display
- Transmitting standard DMX512 protocol data of console, also can transmitting lighting and lighting DMX512 protocol data.
- 126 channels jumping frenquecy automaticly, high anti-jamming ability. to ensure works reliability
- 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place..
- RS485 or CPU series port AURT
Input Voltage: 5VDC 500mA MIN
Communication distances: 400M (visible distance)
Working frequency: 2.4G ISM,126 channels
Max transmitting power rate: 20dBm
Receive sensitive: -94dBm
Dimensions: 18(D)*70(W)
-
