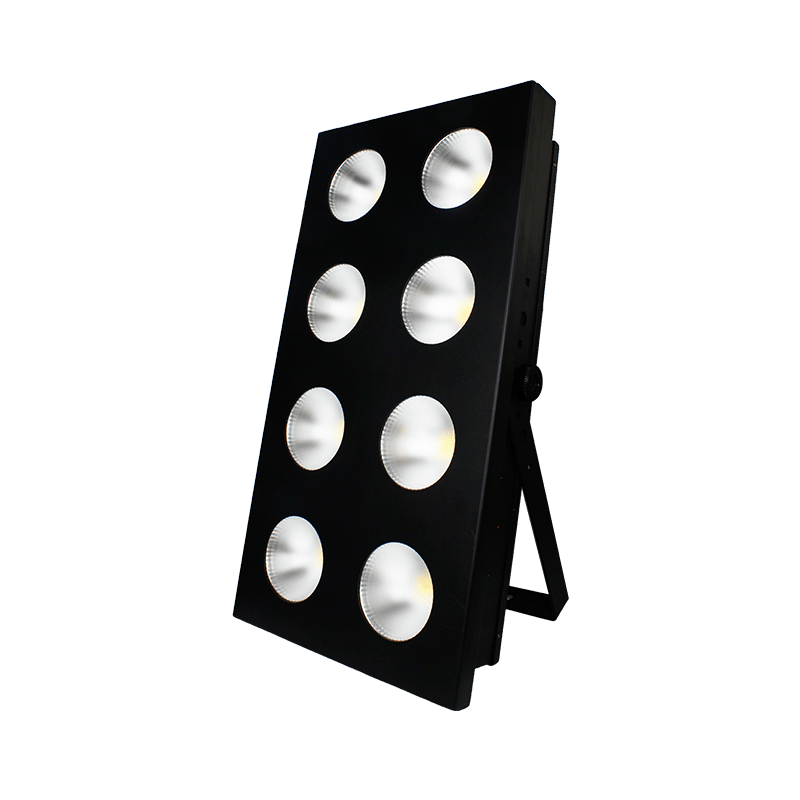

Model: SI-148B BLINDER 8100S-CW

The BLINDER 8100S-CW is a specially new flicker free design for studio applications, featuring 8 cool white (5600K) COB LED modules, fitted in a 30° beam angle optic system (100° field angle). Each COB module is controllable independently. It produces very high light output with ultra smooth dimmer control/dimmer curves and even field coverage. The fixture provides variable speed strobe effect, pulse/random strobe effect, built-in running programs and macro effects.

BLINDER 8100S-CW is ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 8*100W cool white (5600K) COB LED module
  • Individual control for each COB module
  • 50000 hours life span and low power consumption
  • Color Rendering Index(CRI): Ra≥90
  • Specific optic system with 30°beam angle
  • 100° Field angle
  • Very high light output (3950LUX@5m)
  • Ultra even light coverage
  • 0-100% Smooth linear dimmer
  • Flicker free control even at high speed strobe (11700Hz refresh rate)
  • Different built-in programs and macro effects
  • 25T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 4/8 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto operation
  • 4-Button red background LED display
  • POWERCON connector IN/OUT
  • 3-pin XLR connectors IN/OUT
  • Low noise fan cooling system integrated with aluminum heat sink
  • -20-45℃ max ambient temperature
  • IP20 protection rating
  • Integrated double mounting brackets

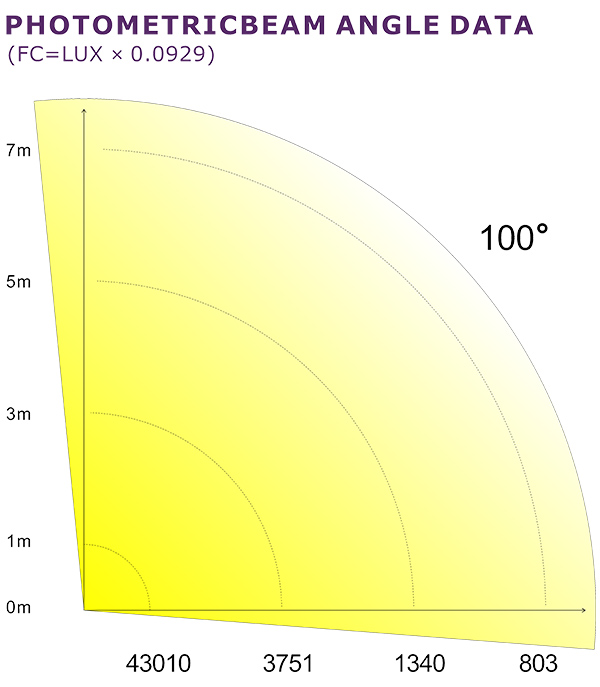

PHOTOMETRIC BEAM ANGLE DATA_38

Input Voltage:AC90-260V 50/60Hz
LED Quantities:8*100W cool white (5600K) COB LED module
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 4/8 DMX channels USITT DMX-512
Power Consumption: 980W
Dimensions:115(D)*370(W)*670(H)mm
Packing Dimensions:750(D)*190(W)*425(H)mm(1PCS)
                                  765(D)*410(W)*455(H)mm(2PCS)
Net Weight: 10.70kg
Gross Weight: 13.00kg

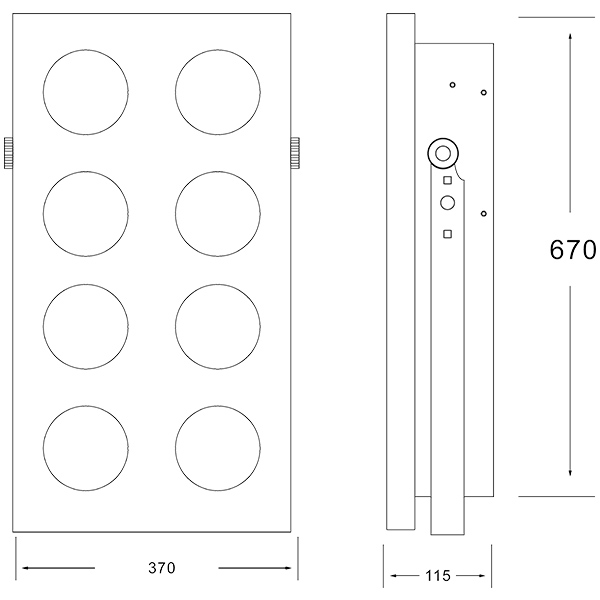

SIZE_35
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

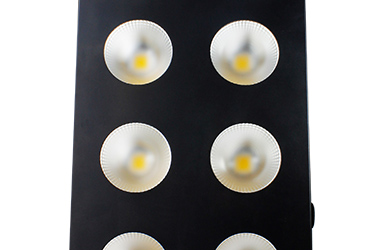

  • a.jpg

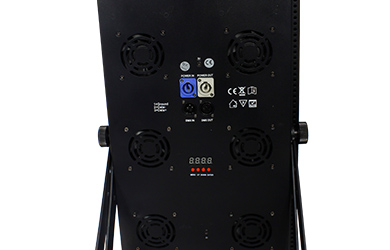

  • c_66

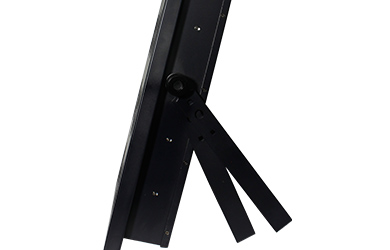

  • b_68

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
