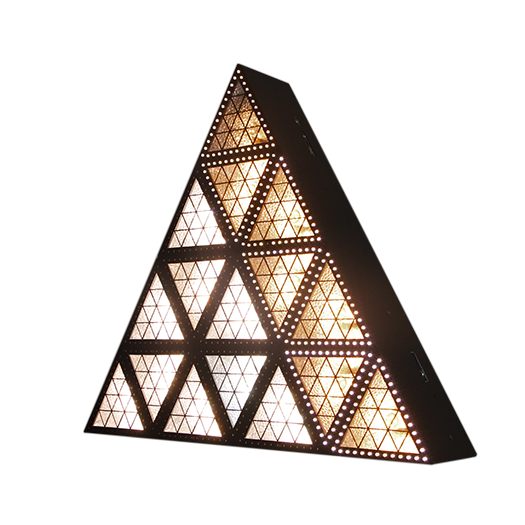

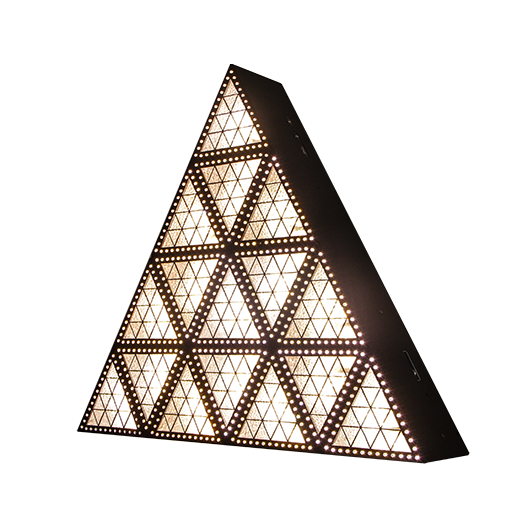

Model: SI-277B TRIANGLE PLUS

The TRIANGLE PLUS is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together. The more fixtures combined, the more vivid lighting effects will be created for the stages. It features 16*30W 1800K+5500K LED modules and 576*0.3W 3200K LEDs surrounding the main module as auxiliary light. All the LEDs are controllable individually by 16 modules.

The TRIANGLE PLUS supports DMX, RDM (Remote Device Management), Art-Net protocol. There are 3 installation capabilities with corresponding kits: truss-hanging, wall-mounting and floor-stacking.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, clubs, etc.
  • Light Source
  • Source:
  • 16*30W LED modules, 1800K+5500K
  • 576*0.3W SMD LEDs, 3200K
  • 16 LED modules controllable individually
  • Flicker free operation for broadcast TV and FILM
  • Life Span: 50000H
  • The life span may vary depending on several following factors but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

  • Optics
  • A set of high temperature resistant squamous reflector optic system
  • 60°Beam angle for each module

  • Color System
  • 3200K surrounding effect
  • 1800K-5500K color temperature tunable by mixing

  • Strobe Effect
  • 25T/sec high speed shutter/strobe effect with variable speed

  • Dimming System
  • 0-100% Smooth linear LED dimming
  • 5 Dimming curves, linear/square law/Inv square law/S-curve/soft curve

  • Control System
  • 8/83/128 DMX channels USITT DMX-512
  • DMX512, master-slave, sound control or auto operation
  • DMX recorder and edit function integrated
  • RDM available (Remote Device Management)
  • Art-NET available
  • Shielded input signal protection for stable signal without interference
  • RJ45 etherCON IN/OUT
  • 3-Pin XLR connectors IN/OUT

  • Software Update
  • Software up-datable through DMX connectors
  • Muilt units up-datable in daisy chain

  • Display System
  • 1.8" TFT LCD display
  • 4 Control buttons
  • 180°Reversible for LCD display
  • Display auto OFF

  • Cooling System
  • Advanced noise free cooling system integrated aluminum and copper
  • Constant temperature readout and management function
  • Over temperature protection management (output decreased when over heat)

  • Power Supply
  • Electronic supply with active PFC
  • AC100-240V 50/60Hz
  • PowerCON connectors IN/OUT
  • 850W Power consumption

  • Housing
  • Skeleton made of high tension steel metal plates
  • Dual back handles
  • Exterior finish: Black (white optional)

  • Installation
  • 2*1/4 Turn fastening Omega Clamps
  • 3 Sets seamless combined system (Female and Male)
  • Truss-hanging kits, 2 options (Optional)
  • Wall-mounting kit (Optional)
  • Floor-stacking kit (Optional)

  • Operating Condition
  • Operating positions: all
  • -25℃ to 45℃ ambient temperature
  • IP20 protection rating

  • Compliance
  • CE
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

  • Weight
  • N.W.: 14kg
  • G.W.: 16kg

  • Dimensions
  • Product Dimensions:148(D)*800(W)*690(H)mm
  • Packing Dimensions: 240(D)*895(W)*775(H)mm
   三角灯尺寸图_画板 1.jpg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries

Details

  • _MG_5584_调整大小.jpg
  • SI-277A TRIANGLE PLUS-C (14).jpg
  • SI-277A-TRIANGLE-PLUS-C--13-

Effect Pictures

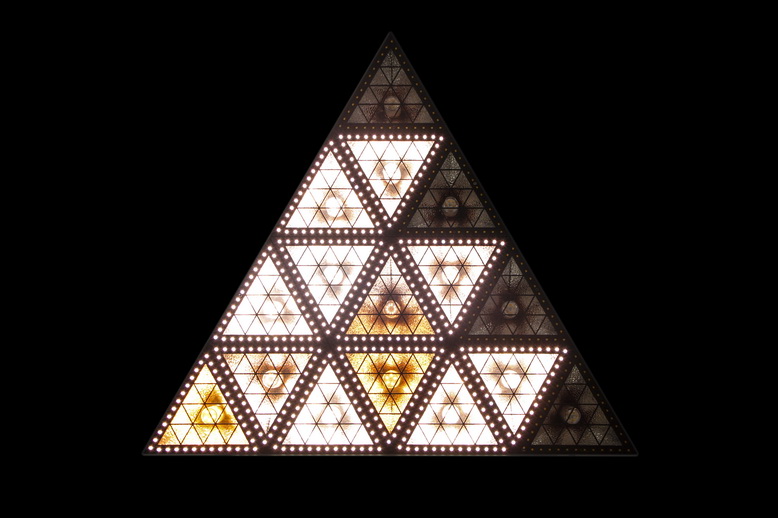

  • SI-277B-TRIANGLE-PLUS--6-_----

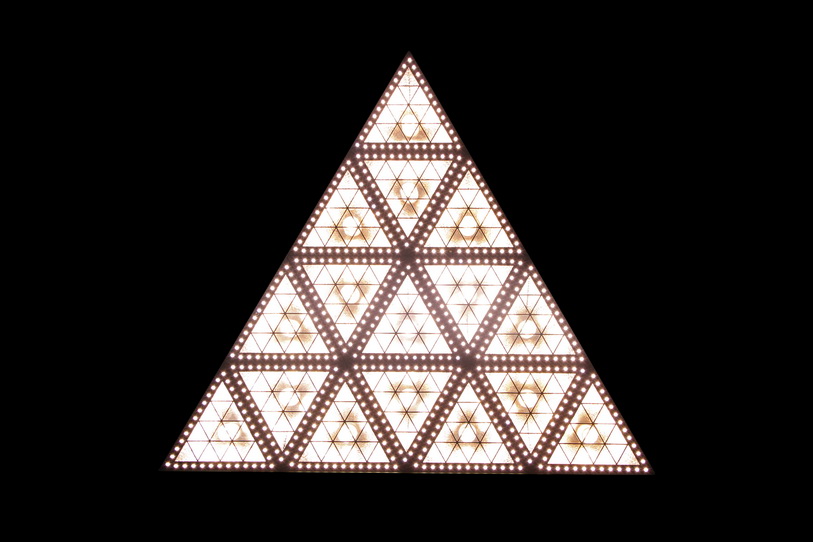

  • SI-277B-TRIANGLE-PLUS--5-_----

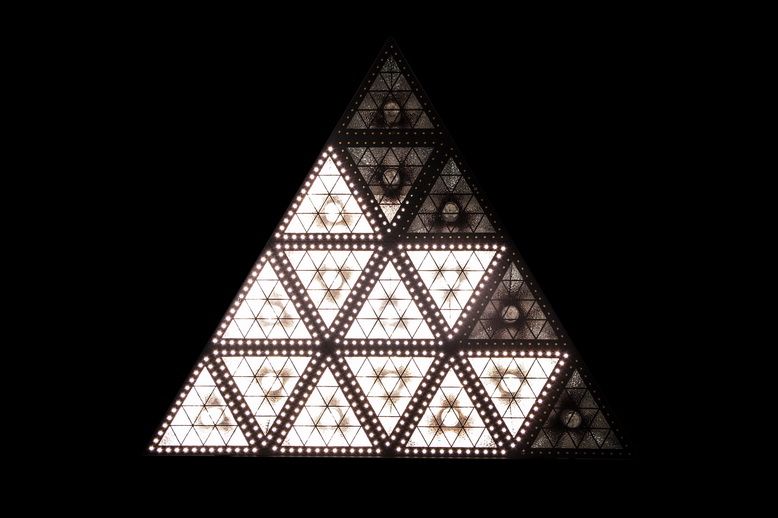

  • SI-277B-TRIANGLE-PLUS--7-_----

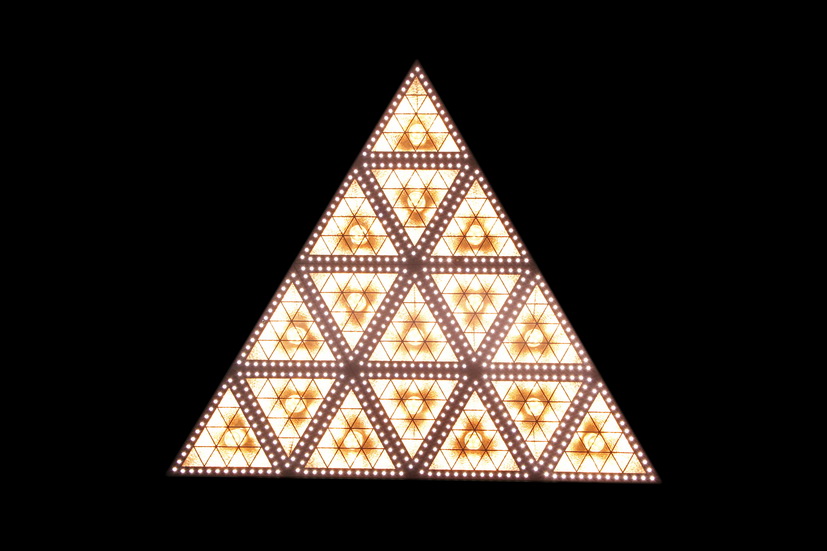

  • SI-277B-TRIANGLE-PLUS--8-_----
2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS




Omega

STANDARD
code:
QTY: 2PCS





3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 2PCS



11111-04

Single Floor-Stacking Ki

OPTIONAL
code:

11111_---1

Dual Floor-Stacking Kit

OPTIONAL
code:
QTY:



11111-02

Single Truss-Hanging Kit

OPTIONAL
code:


11111-03

Dual Truss-Hanging Ki

OPTIONAL
code:
QTY:
