• AUTO 310CW AUTO 310CW

Model: SI-125 AUTO 310CW

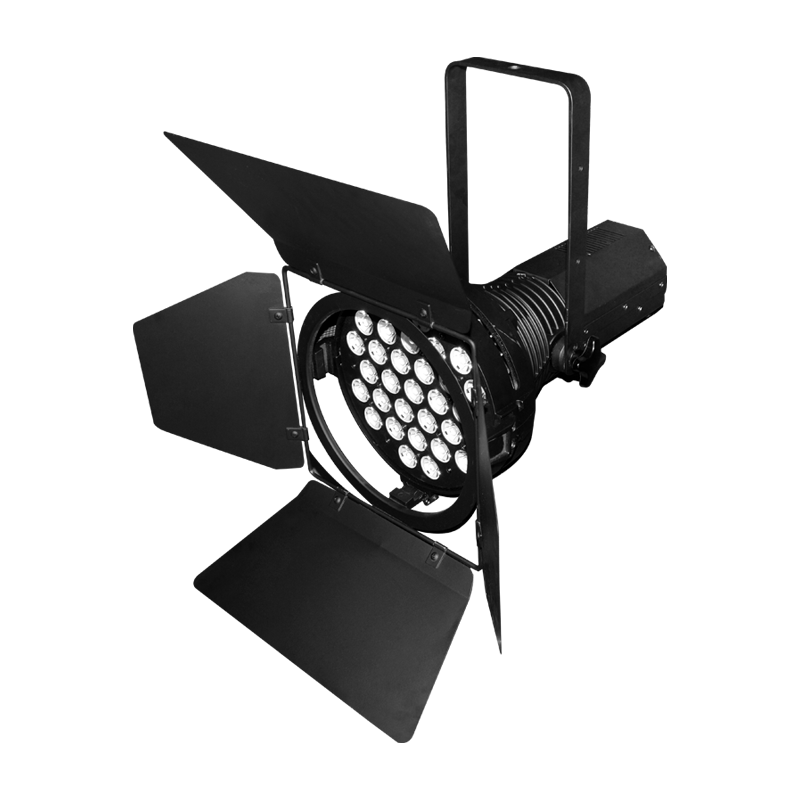

Thanks to 31*10W CREE pure white LEDs (6700K), the AUTO 310CW features really ultra high output with even light coverage, comparable to a traditional 1200W HR lamp but much low power consumption and low heat generated. It’s with 15°beam angle or 45°beam angle depending on actual application need. The fixture arms with 0-100% smooth LED linear dimming and high speed strobe/shutter effects. AUTO 310CW provides a barn door system and single mounting bracket. The AUTO 310CW is suitable for auto show, theatre, church, etc.




  • 31*10W CREE pure white LEDs (6700K)
  • 50,000 hours life span and low power consumption
  • 15° projection beam angle (45°optional)
  • High light output with even coverage
  • 0-100% smooth linear LED dimming
  • 1-25T/s variable speed strobe/shutter effects
  • 2 DMX channels USITT DMX-512
  • DMX512, Master-Slave, Sound Activated and auto operation
  • 4-Button LED display
  • POWERCON connectors IN/OUT
  • Power switch available
  • 3-Pin XLR connectors IN/OUT
  • Overheat protection
  • -20°C ~ 45°C max ambient temperature
  • TO.8A fuse
  • Aluminum die-casting structure design with optimum low noise
  • cooling system
  • Barn door system integrated
  • Single mounting bracket hanging application
EN SI-125 BEAM

Input Voltage:AC90-260V 50/60Hz
LED Quantities:31*10W CREE pure white LEDs
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 2 DMX channels USITT DMX-512
Power Consumption:350W

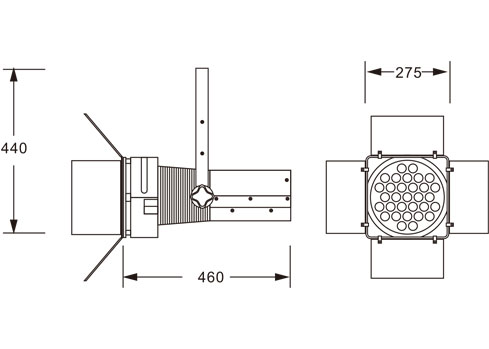

Dimensions: 460(D)*275(W)*440(H)mm
Packing Dimensions: 560(D)*535(W)*465(H)mm
Net Weight: 8.2kg
Gross Weight: 10kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Detail

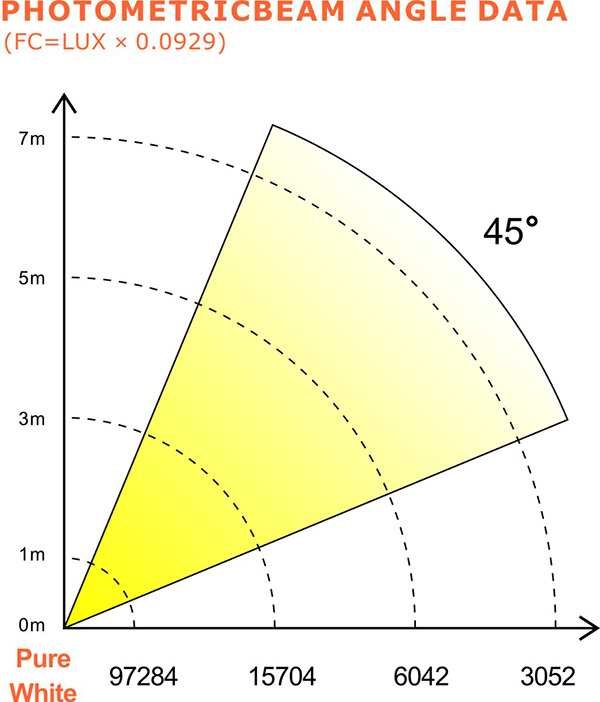

Effect diagram

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS



2_1

Barn Door

STANDARD
code:
QTY: 1PCS



2_1

Color Frame

OPTIONAL
code:
QTY: 1PCS
