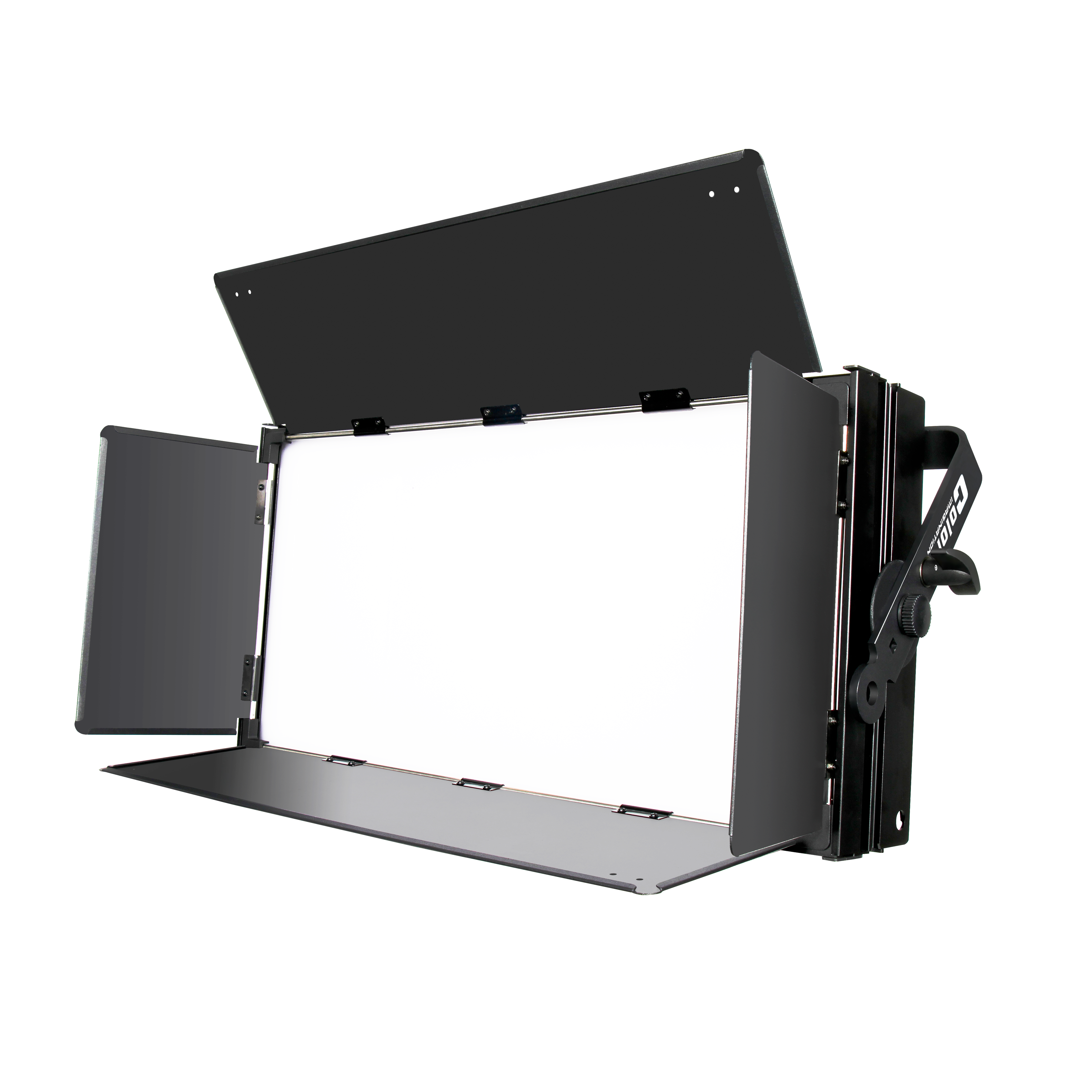

PANEL 2618

Model: SI-303 PANEL 2618

The flexible and modular concept PANEL 2618 is a new generation soft studio panel light for the industry featuring 858*0.5W 3-in-1+880*0.35W 2700K amber+880*0.35W 8000K white, high CRI and surface mount stable LEDs with high efficiency optics integrated. The fixtures are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 2700K to 12000K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than tradition ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

The PANEL is RDM and DMX protocol supported, offering 4 dimming curves and LED frequency adjustable from 500Hz and 25000Hz.

The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.

Light Source
Source: 858*0.5W 3-in-1+880*0.35W 2700K amber+880*0.35W 8000K white LEDs, lower power consumption
2700K-12000K Color temperature adjustable
31 Preset color temperature options
CRI: ≥95
Flicker free operation for broadcast TV and FILM
Frequency adjustable between 500Hz and 25000Hz
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics
High resolution and precise front soft diffusion panel
180°Projection angle

Barn Door System
4-Leaf rotating barn doors included

Color System
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable

Strobe Effect
25T/sec high speed LED shutter/strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming
4 Dimming curve modes, linear/square law/Inv square law/S-curve
2 Individual dimmer knobs

Control System
10 DMX channels USITT DMX-512
RDM available (Remote Device Management)
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
Shielded input signal protection for stable signal without interference
3-Pin XLR DMX connectors IN/OUT

Display System
2.8" Touch TFT LCD display
4 Control buttons
2 Control knobs
180°Reversible for LCD display
Display Auto OFF

Cooling System
Advanced cooling system integrated aluminum and copper with liquid
Noise free featured
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
350W Power consumption

Housing
Skeleton made of aluminum and steel metal plates
Exterior finish: Black

Installation
Single hanging bracket
1*Safety attachment point

Operating Condition
Operating positions: all
Tripod stand as optional
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 12kg
G.W.: 14kg

Dimensions
Product Dimensions: 106.2(D)*759.8(W)*415.1(H)mm
Packing Dimensions: 210(D)*880(W)*520(H)mm
