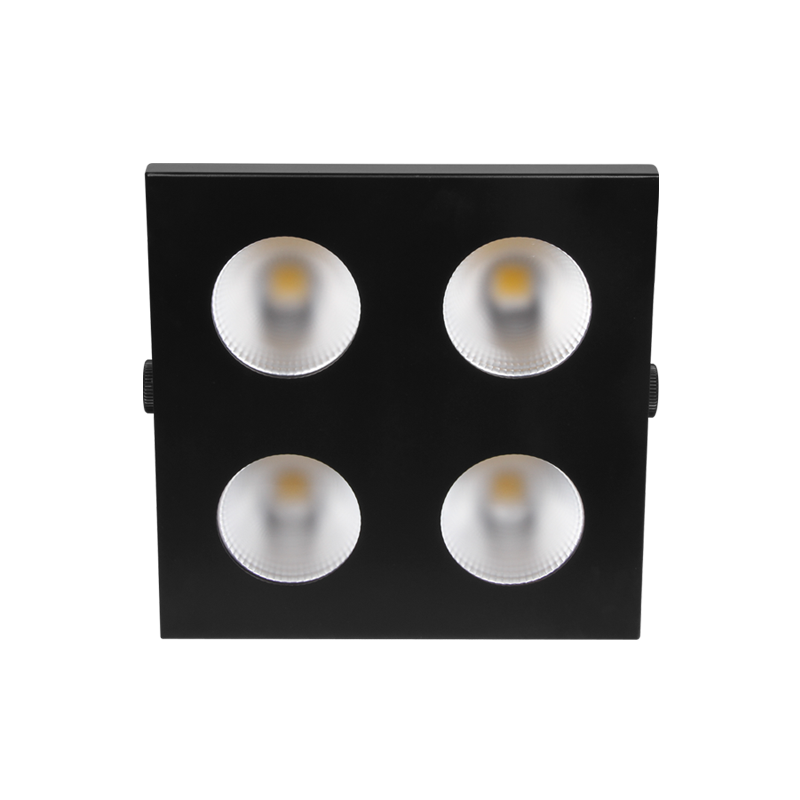

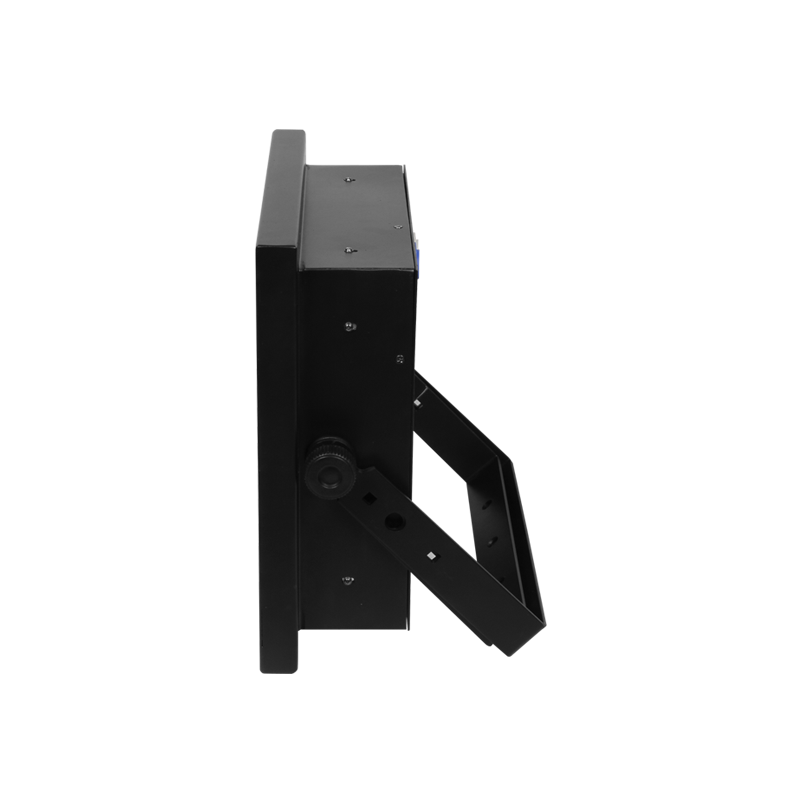

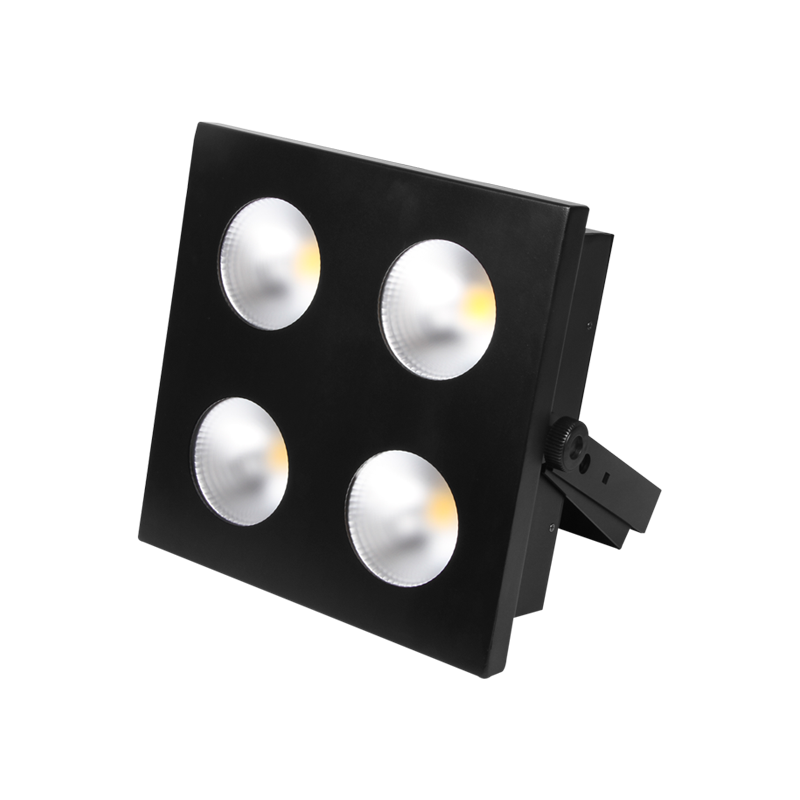

Model: SI-146A BLINDER 4100S-WW

The BLINDER 4100S-WW is a specially new flicker free design for studio applications, featuring four warm white (3200K) COB LED modules, fitted in a 30° beam angle optic system (100° field angle). Each COB module is controllable independently. It produces very high light output with ultra smooth dimmer control/dimmer curves and even field coverage. The fixture provides variable speed strobe effect, pulse/random strobe effect, built-in running programs and macro effects. BLINDER 4100S-WW is ideal for theatres, houses of worship, conference rooms, special photography, TV sudios, exhibition centres, universities and schools, hospitality, retail, clubs, etc.


  • 4*100W warm white (3200K)  COB LED module
  • Individual control for each COB module
  • 50000 hours life span and low power consumption
  • Specific optic system with 45°beam angle
  • 100° field angle
  • Very high light output (2180LUX@5m)
  • Ultra even light coverage
  • 0-100% Smooth linear dimmer
  • Flicker free control even at high speed strobe
  • Different built-in programs and macro effects
  • 30T/sec high speed LED shutter/strobe effect with variable speed
  • Preset variable/random strobe and dimming pulse effect
  • 4/8 DMX channels USITT DMX-512
  • DMX512, master-slave, and sound activated controllable or auto
  • operation
  • 4-Button red background LED display

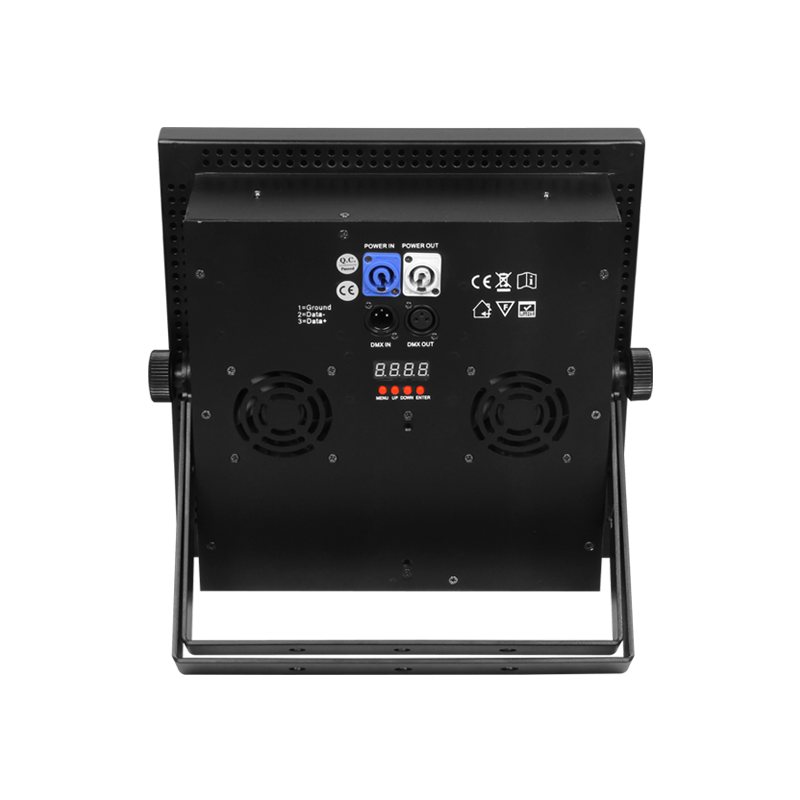

  • POWERCON connector IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • Low noise fan cooling system integrated with aluminum heat sink
  • -20°C ~ 45°C max ambient temperature
  • IP20 protection rating
PHOTOMETRIC BEAM ANGLE DATA.jpg

Input Voltage:AC90-260V 50/60Hz
LED Quantities:4*100W warm white (3200K)  COB LED module
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 4/8 DMX channels USITT DMX-512
Power Consumption: 420W
Dimensions:153(D)*408(W)*411(H)mm
Packing Dimensions:167(D)*422(W)*465(H)mm(1PCS)
                                  440(D)*715(W)*490(H)mm(4PCS)
Net Weight: 5.92kg
Gross Weight: 7.20kg

  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates



  • Accessories



  • CAD Symbols



  • Libraries



Details

  • a.jpg
  • c_67
  • b_69

Effect Pictures

2_1

Power Cable

STANDARD
code:
QTY: 1PCS

4_1

Signal Cable

STANDARD
code:
QTY: 1PCS



3_1

Safety Cable

STANDARD
code:
QTY: 1PCS





2_1

Road Case

OPTIONAL
code:
Available for 4-in-1, 6-in-1, 8-in-1, 10-in-1 versions

2_1

Clamps

OPTIONAL
code:
QTY: 1PCS
