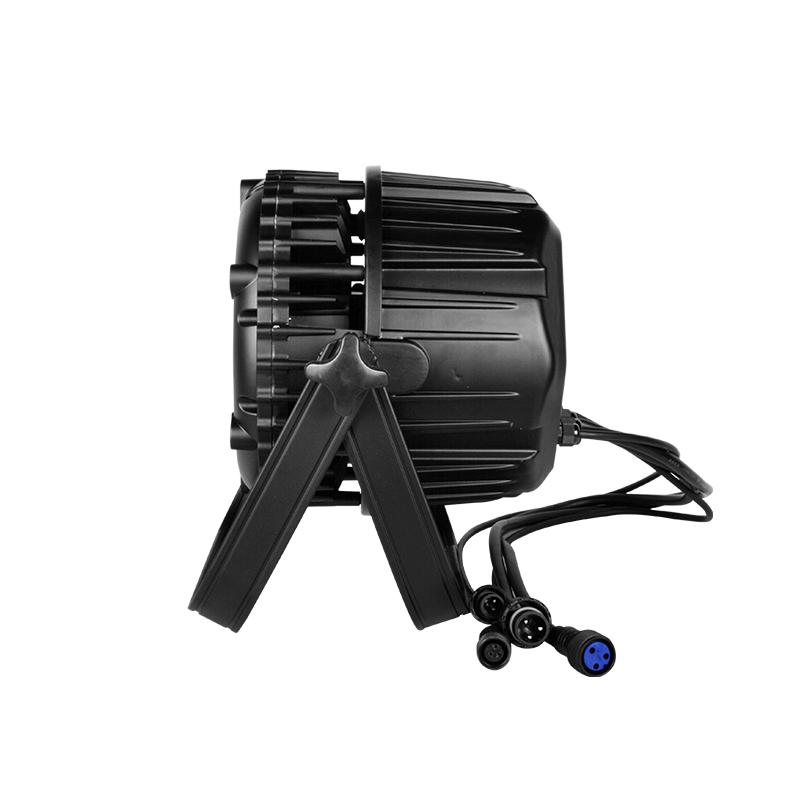

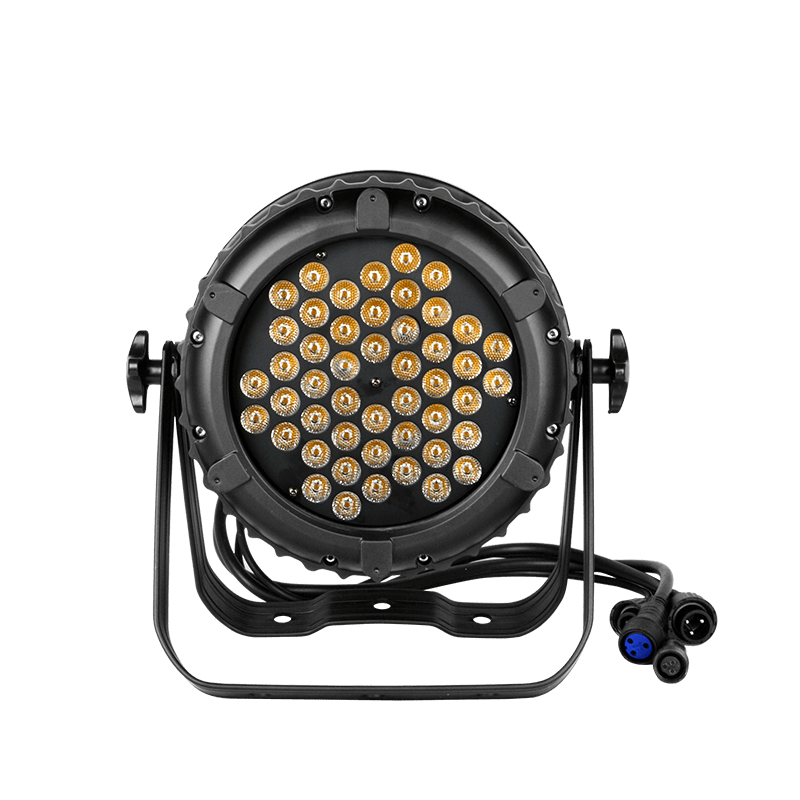

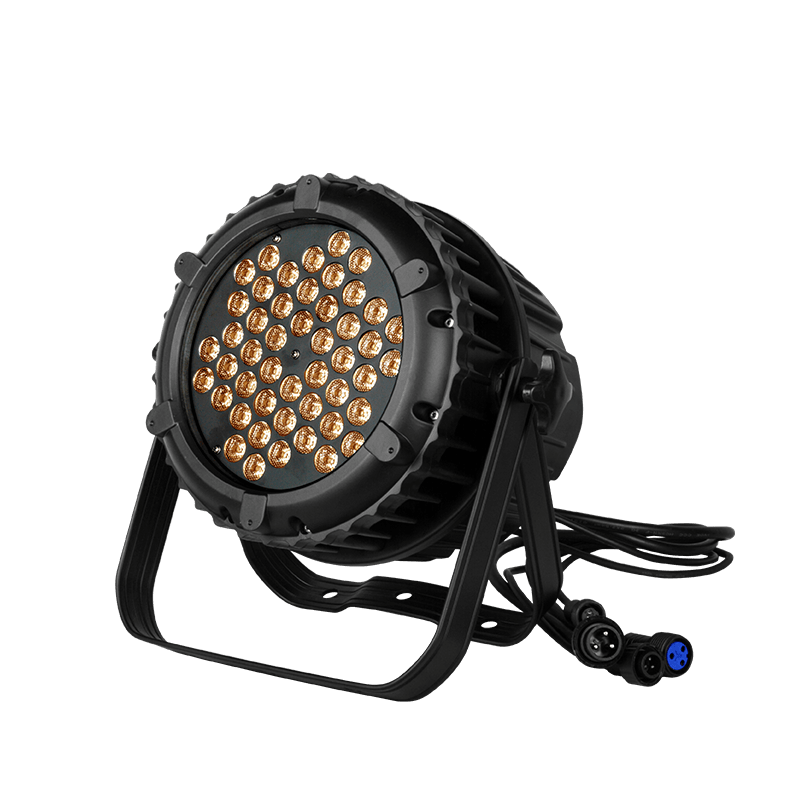

Model: SI-044 LEDPAR 485IP

SI-044 is an extremely high power LED-based fixture designed to illuminate large scale architectures or punch through the mass of light on concert size stages. . It produces very high lumens for applications much more than normal pars with 3W LEDs. The 2 DMX channels modes brings users much customized programming capabilities. It’s also compact, lightweight and easy to operate. It is a powerful legend for professional guys needing pro fixtures.

IP_16

  • 48PCS 5W SEOUL LEDs (RGBW)
  • Lightweight, compact and easy operation and installation
  • Extremely long lifespan with 50,000 hours and lower power consumption
  • Aluminum die-casting structure design with optimum conventional cooling system
  • Infinite RGBW color mixing system and rainbow effect
  • 4/9 DMX channel modes switchable USITT DMX-512
  • DMX512, Master-Slave, Sound Activated and auto operation
  • 8 Built-in programs that could be called up via a DMX controller
  • 25t/s strobe effect and pulse strobe effect
  • 0-100% electronic dimming and blackout for all LEDs
  • 25°beam angle default
  • LED display
  • Dual bracket system available for setting the fixture onthe ground or hanging

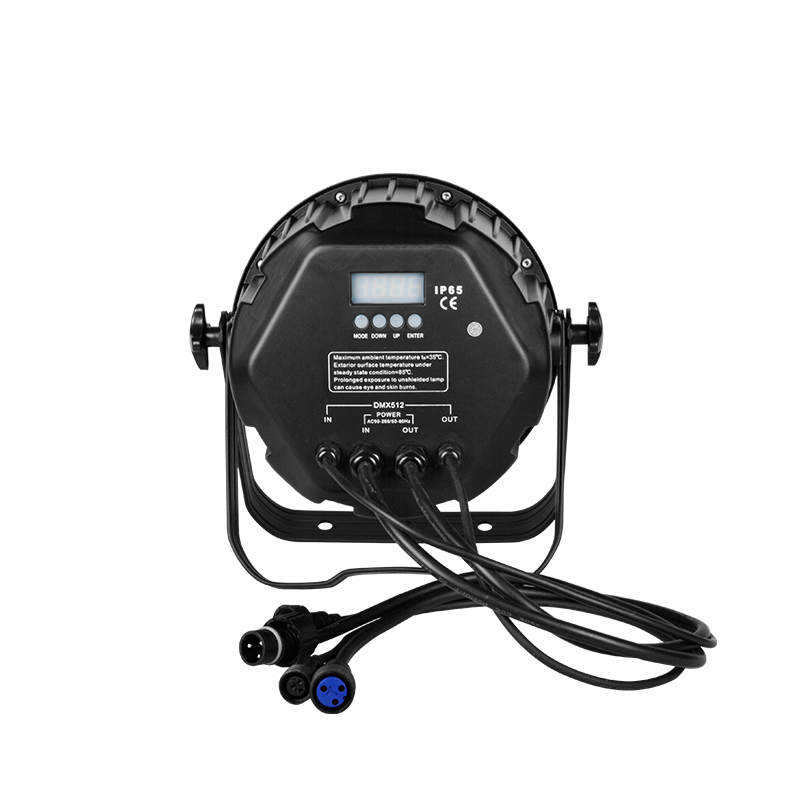

  • IP rated power IN/OUT
  • Linkable via IP rated 3-Pin XLR cables
  • IP65 protection rating

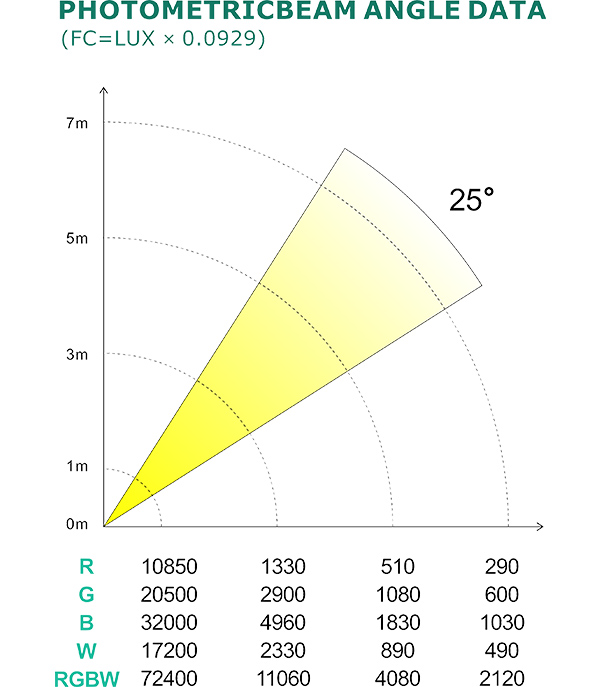

PHOTOMETRIC BEAM ANGLE DATA.jpg



Input Voltage: AC90-260V 50-60Hz
LED Quantities: 48PCS 5W SEOUL LEDs(RGBW)
Control Signal: DMX512, master-slave and sound
                       activated  or auto operation
Control Channel: 4/9CH DMX Channels USITT DMX-512
Power Consumption:  280W
Dimensions:  316(D)*345(W)*332(H)mm
Packing Dimensions:  290(D)*290(W)*370(H)mm
Net Weight: 10kg
Gross Weight:  11kg

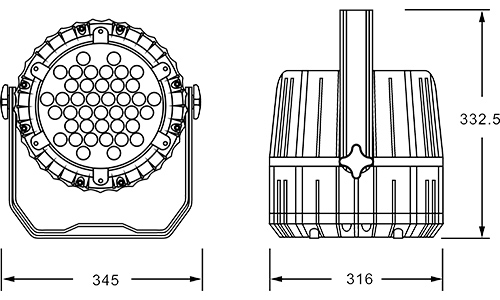

SIZE_61
  • Promotional brochures



  • Manuals



  • DMX Channels



  • Photometrics



  • Poster



  • Certificates

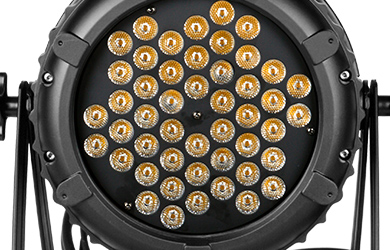

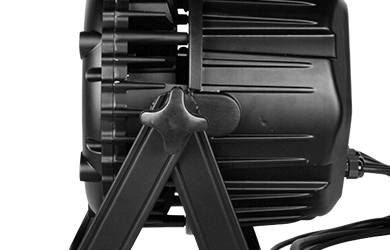

Detail

  • a.jpg
  • b_96

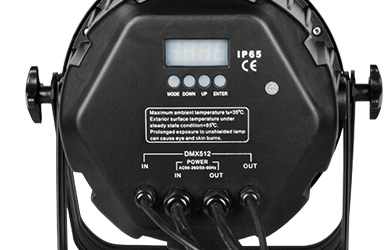

  • c_94

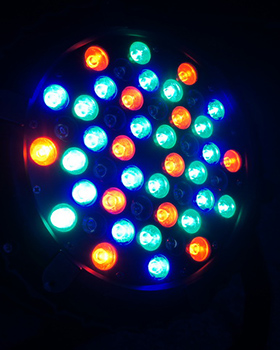

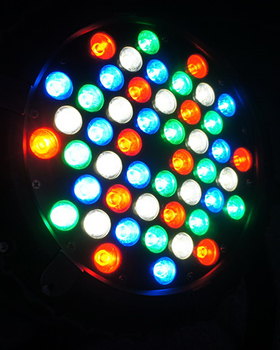

Effect diagram

  • a_98
  • b_95

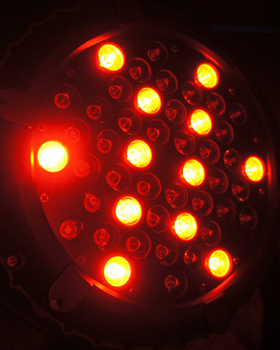

  • c_93

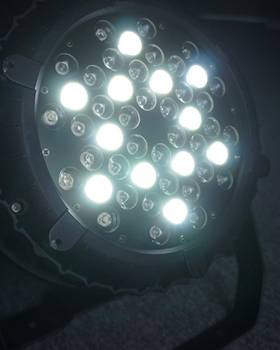

  • d_67
3_1

Safety Cable

STANDARD
code:
for fixing clamps
